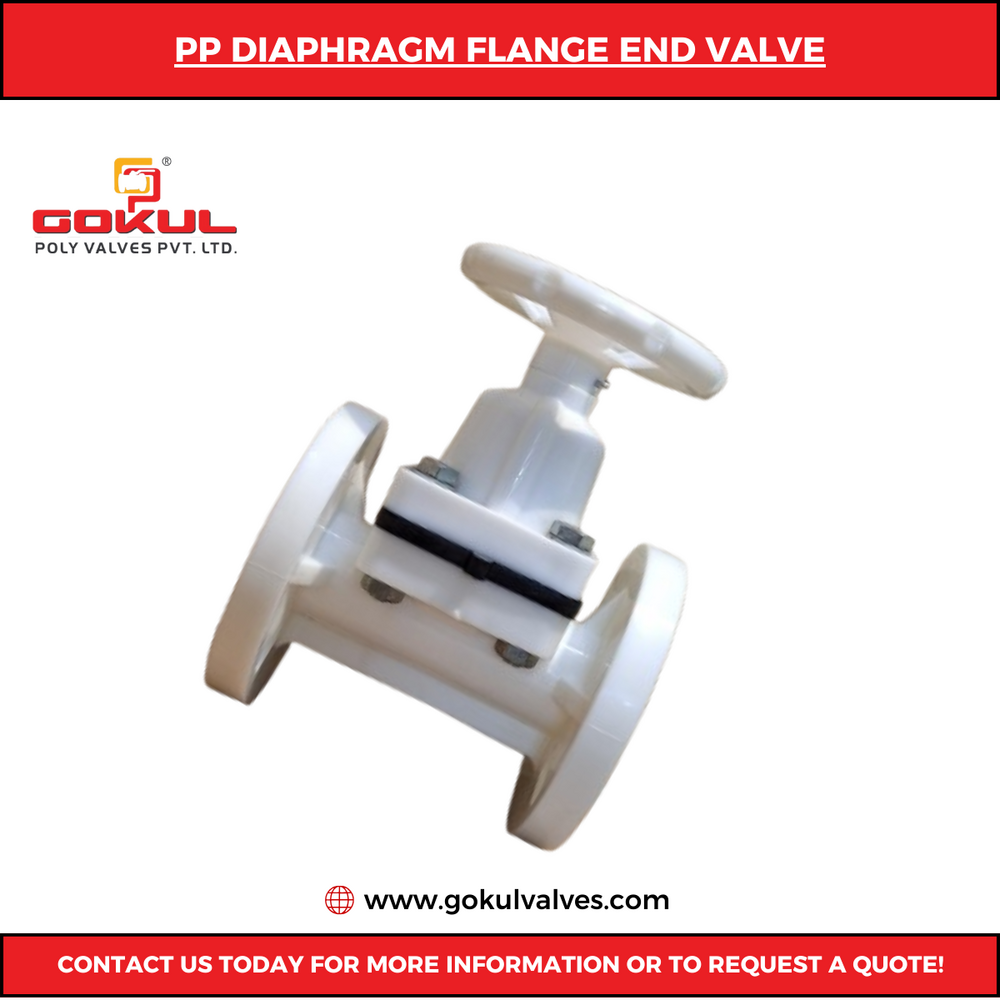

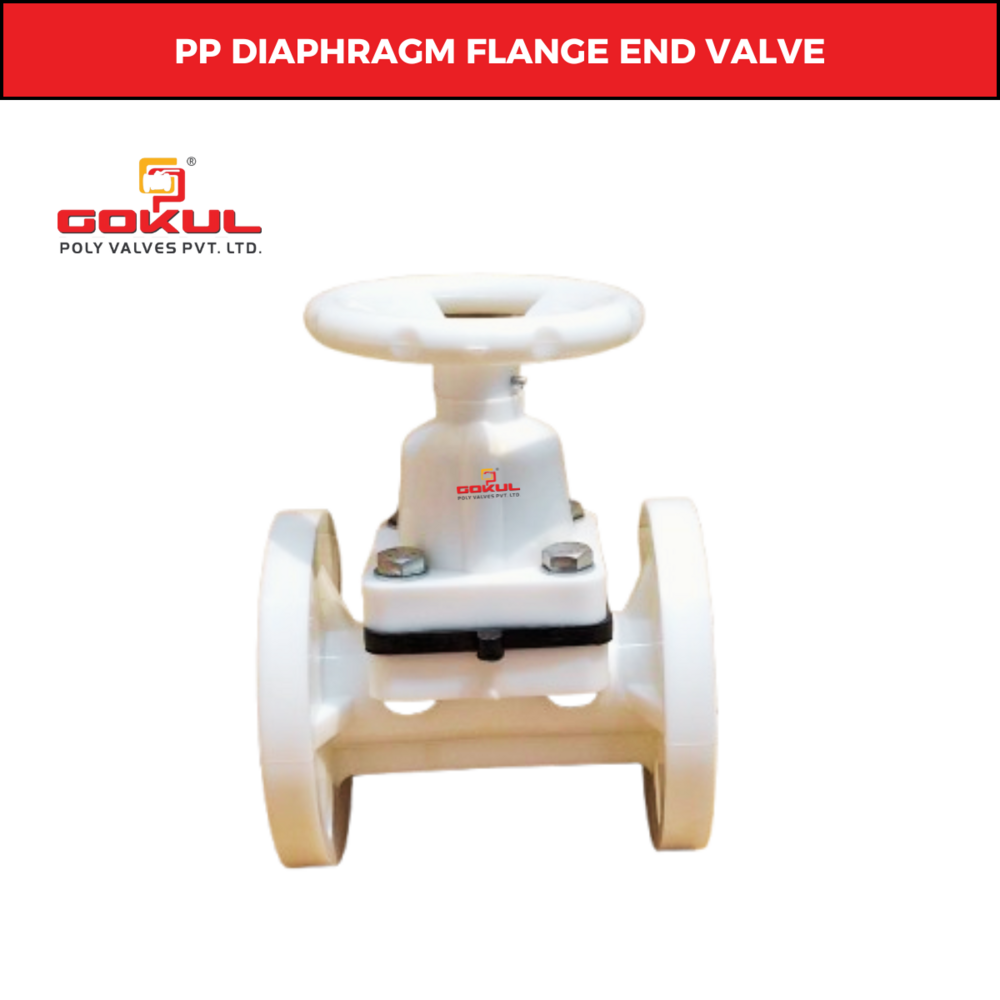

Gokul Polypropylene Diaphragm Valve Flange End 2"

Price 870 INR/ Number

Get a Price/Quote

Gokul Polypropylene Diaphragm Valve Flange End 2" Specification

  • Channels
  • Intentional & Domestic Market
  • Structure
  • Ball
  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Pressure
  • Medium Pressure
  • Connection
  • Flanged
  • Material
  • Plastic
  • Usage
  • Industrial & Water Application
  • Media
  • Water
  • Size
  • 2"-50MM
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Diaphragm Valve Flange End
  • Port Size
  • 2"-50mm
  • Flange
  • 150 class
  • Color
  • White
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Gokul Polypropylene Diaphragm Valve Flange End 2" Trade Information

  • Minimum Order Quantity
  • 5 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About Gokul Polypropylene Diaphragm Valve Flange End 2"

Technical Specification Material Of Construction PP (Polypropylene) Construction weir type design,Soft seated, raising stem Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 15MM to 150MM Test pressure 6 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Body Polypropylene 1 2) Bonnet Polypropylene 1 3) Hand wheel Polypropylene 1 4) Diaphragm Neoprene Rubber 1 5) Compressor PP 1 6) Stem / Spindel M.S. /Brass 1 7) Nut M.S./ S.S. 1 8) Pin M.S./ S.S. 1 9) Bolt, Nut, Washer M.S./ S.S. REQ 10) Cap Polypropylene 1

FAQs of Gokul Polypropylene Diaphragm Valve Flange End 2":


Q: What are the applications of the Gokul Polypropylene Diaphragm Valve Flange End 2"?

A: The valve is designed for industrial and water application purposes.

Q: What is the maximum temperature the valve can handle?

A: The valve can handle a media temperature of up to 80C.

Q: What is the connection type for this valve?

A: The valve comes with a flanged connection type.

Q: What is the size of the Gokul Polypropylene Diaphragm Valve Flange End 2"?

A: The valve size is 2" or 50mm.

Q: What is the pressure rating of this valve?

A: This valve is suitable for medium pressure applications.

Q: What material is used to manufacture the Gokul Polypropylene Diaphragm Valve?

A: The valve is made from Polypropylene (PP) plastic.

Q: Is this product available for international markets?

A: Yes, the valve is designed for both intentional and domestic markets.

Gokul Polypropylene Diaphragm Valve Flange End 2
Gokul Polypropylene Diaphragm Valve Flange End 2
Gokul Polypropylene Diaphragm Valve Flange End 2
Gokul Polypropylene Diaphragm Valve Flange End 2
Gokul Polypropylene Diaphragm Valve Flange End 2
Gokul Polypropylene Diaphragm Valve Flange End 2
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Ball Products Category

Gokul PP Foot Valve Flange End

Gokul PP Foot Valve Flange End

Price 1460 INR / Number

Minimum Order Quantity : 10

Channels : Intentional & Domestic Market

Flange : 150 class

Media : Water

Finish : Polypropylene (PP)

Get a Price/Quote
Gokul PP Non return Valve Screwed End

Gokul PP Non return Valve Screwed End

Price 492 INR / Number

Minimum Order Quantity : 10

Channels : Intentional & Domestic Market

Flange : BSP Threaded

Media : Water

Finish : Polypropylene (PP)

Get a Price/Quote
Flange End Polypropylene Diaphragm Valve 2

Flange End Polypropylene Diaphragm Valve 2"

Price 870 INR / Number

Minimum Order Quantity : 10

Channels : Intentional & Domestic Market

Flange : 150 class

Media : Water

Finish : Polypropylene (PP)

Get a Price/Quote

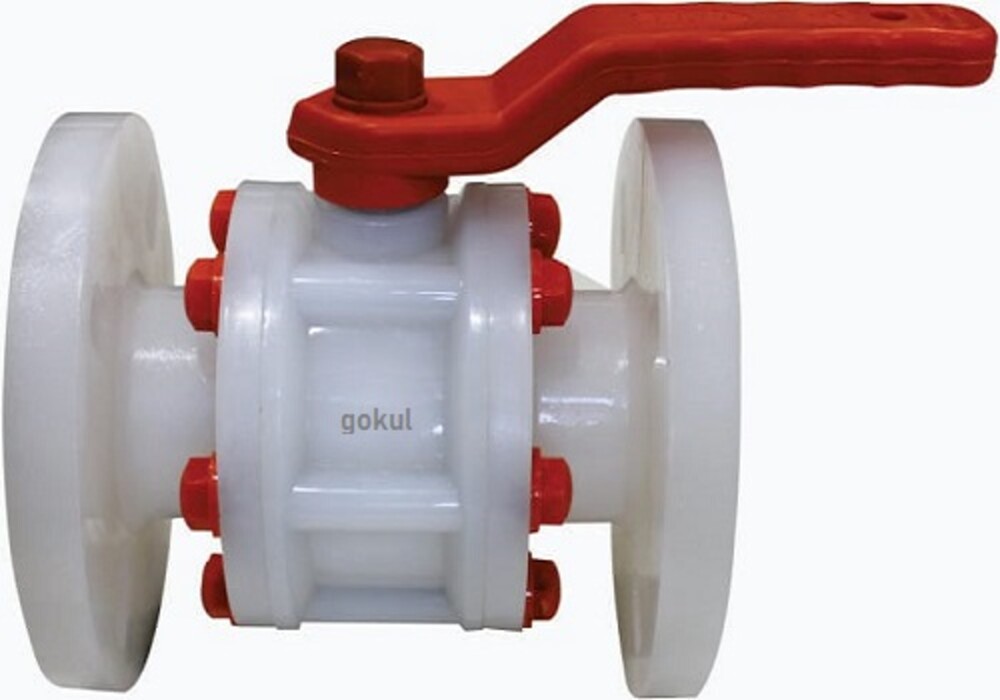

Gokul P.p Flange end ball valve
