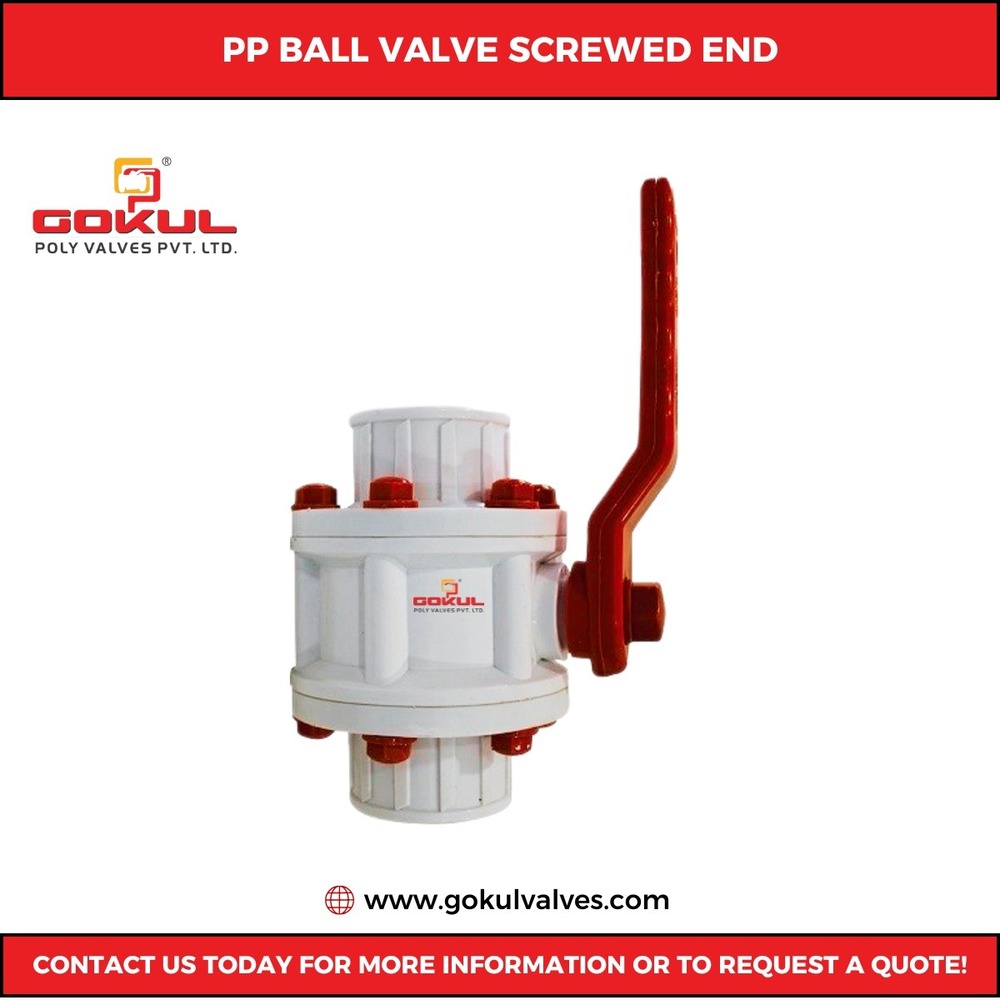

Gokul Polypropylene Screwed End Ball Valve

Price 540 INR/ Number

Get a Price/Quote

Gokul Polypropylene Screwed End Ball Valve Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
20 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About Gokul Polypropylene Screwed End Ball Valve

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	3 piece design, 1 piece stem (spindle), full bore, Teflon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	"- 15MM TO 100MM- 4ï
Connection End	Screw end (BSP thread)	Standard	As per manufacturer

Material Specification

NO.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	Polypropylene
2)	Body	1	Polypropylene
3)	Ball	1	Polypropylene
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEFLON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEFLON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Designed for Versatility and Durability

Gokul Polypropylene Screwed End Ball Valves are built to serve diverse applications, ranging from industrial process lines to water management systems. The sturdy polypropylene construction ensures resistance to corrosion and chemicals, while the BSP threaded screw ends allow for swift and secure installation.

Optimized for Medium Pressure Applications

With a pressure rating suitable for medium-pressure flow and the ability to handle media temperatures up to 80C, these ball valves are ideal for a variety of industrial and domestic water handling setups. Their versatility makes them a trusted choice for many sectors.

FAQs of Gokul Polypropylene Screwed End Ball Valve:

Q: How is the Gokul Polypropylene Screwed End Ball Valve installed?

A: The valve features a BSP threaded screw end, allowing it to be easily screwed onto compatible threaded pipes without special tools. This design ensures a secure and leak-proof connection for both new installations and replacements.

Q: What sizes are available for this ball valve, and how do I choose the right one?

A: The ball valve is offered in port sizes from 1/2" to 4". Selection depends on your pipe diameter and flow requirements. Measure your systems piping and choose the valve that matches the intended application.

Q: When should I use a polypropylene ball valve instead of metal valves?

A: Polypropylene ball valves are recommended for applications where chemical resistance is crucial and where corrosion from water or chemicals may degrade metal valves. They are particularly beneficial in water treatment, chemical processing, and irrigation systems.

Q: Where can I utilize this valve in an industrial setting?

A: These valves are suitable for use in industrial water pipelines, chemical distribution systems, and various process control operations. Their robust design enables them to function reliably in many commercial environments.

Q: What is the process for maintaining this valve?

A: Routine visual inspections for leaks or debris are typically sufficient. The polypropylene material requires no lubrication and resists scaling, minimizing maintenance needs over its operational lifespan.

Q: How can using a Gokul Polypropylene Ball Valve benefit my system?

A: This valve ensures long-lasting performance with minimal maintenance, offers excellent chemical and corrosion resistance, and supports quick installation, making it cost-effective and efficient for both industrial and water application systems.
