Gokul PP Screwed End Ball Valve

About Gokul PP Screwed End Ball Valve

PP Ball Valve Threaded End

At Gokul Poly Valves Pvt. Ltd., we manufacture and supply high-quality PP Ball Valves (Threaded End) that are designed for smooth, leak-proof, and reliable fluid control. These valves are made from virgin-grade polypropylene (PP), ensuring excellent strength, durability, and resistance to chemicals and corrosion.

Our Threaded End PP Ball Valves are easy to install and operate, making them ideal for water supply, irrigation, chemical industries, and various industrial applications. With a lightweight yet sturdy construction, these valves deliver a long service life with minimal maintenance.

Key Features:

• Manufactured from high-quality polypropylene (PP).

• Threaded ends for easy installation and connection.

• Corrosion-proof, chemical-resistant, and durable.

• Smooth quarter-turn operation with minimal torque.

• Available in various sizes and pressure ratings.

Applications:

• Water supply and distribution

• Agricultural irrigation systems

• Chemical and process industries

• Sewage and wastewater management

• Industrial fluid handling

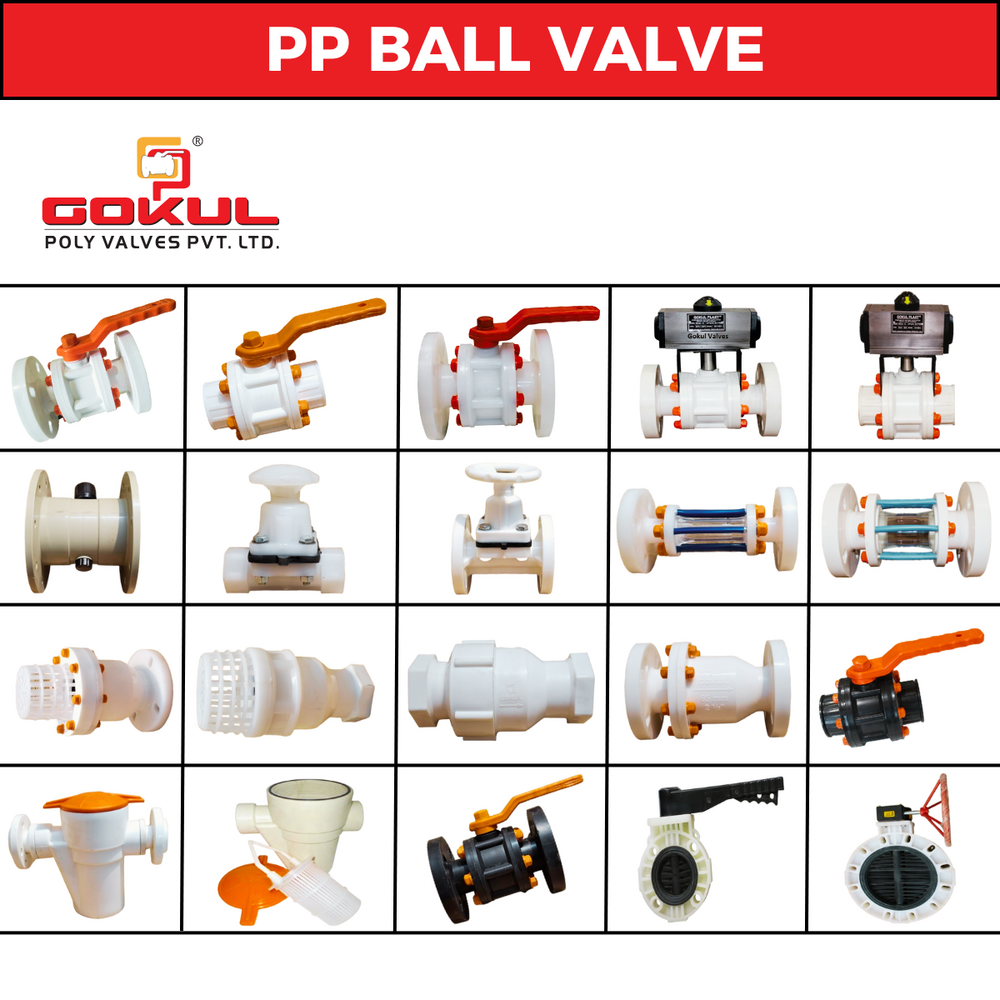

Other Ball Valve Products We Offer

Along with PP Ball Valve Threaded End, we also provide a wide range of ball valve solutions:

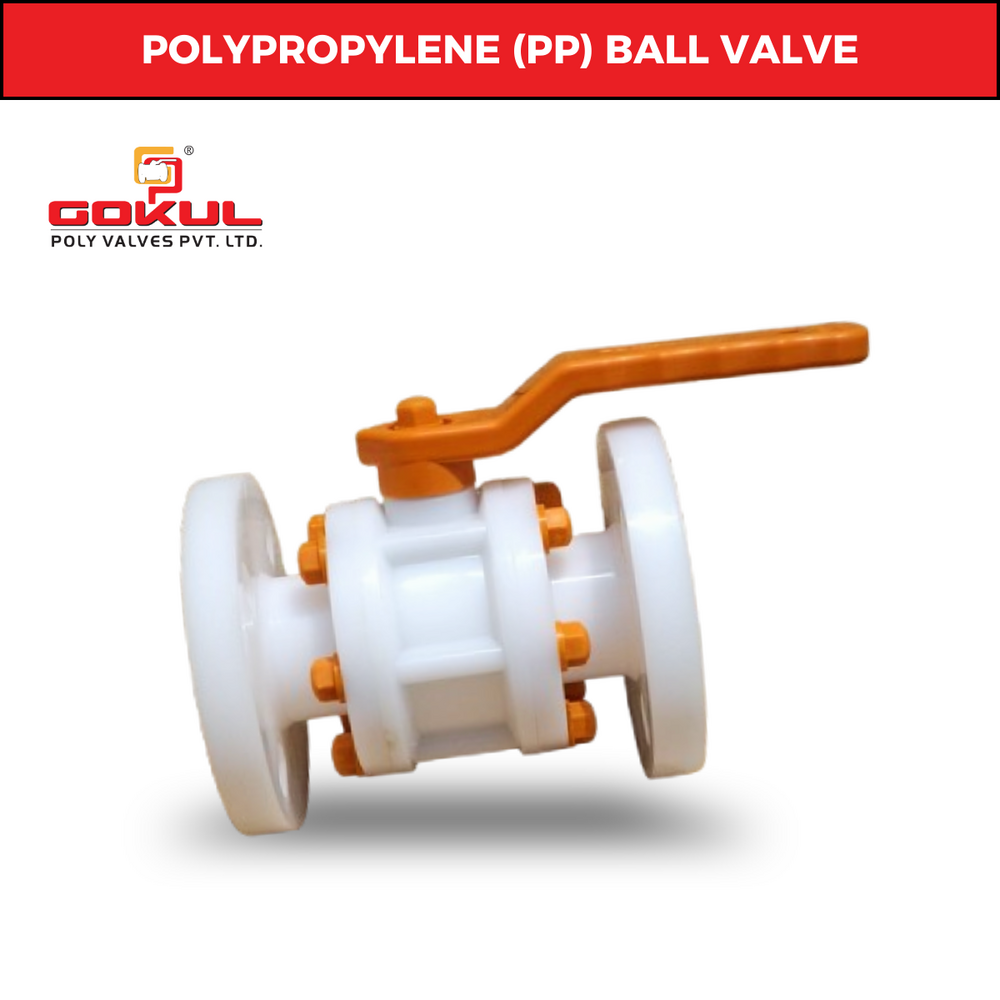

• PP Ball Valve Flange End

• PP Union Ball Valve

• HDPE Ball Valve

• HDPE Electrofusion Ball Valve

• HDPE Union Ball Valve

• PVC Ball Valve

• PVDF Ball Valve

• Single Piece Ball Valve

• Two Piece Ball Valve

• Three Piece Ball Valve

At Gokul Valves, our ball valves are trusted worldwide for their precision engineering, durability, and performance. Each product is tested to meet international quality standards, making them suitable for diverse industries.

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	3 piece design, 1 piece stem (spindle), full bore, Tef lon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	"- 15MM TO 100MM- 4
Connection End	Screw end (BSP thread)	Standard	As per manufacturer

Material Specification

NO.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	Polypropylene
2)	Body	1	Polypropylene
3)	Ball	1	Polypropylene
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEF LON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEF LON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Durable Polypropylene Construction

Crafted from premium PP plastic, the Gokul ball valve resists corrosion and chemical degradation, ensuring a long service life in demanding environments. Polypropylenes non-reactive nature makes this valve suitable for a wide range of water and industrial applications, contributing to reliable performance and minimal maintenance requirements.


Flexible Sizing and Easy Installation

Available in port sizes from 1/2" to 4", the valve accommodates diverse piping systems. Its screw end (BSP threaded) connection streamlines the installation process, reducing downtime and offering compatibility with standard threads. The valve fits seamlessly into both new setups and retrofits, enhancing system adaptability.

FAQs of Gokul PP Screwed End Ball Valve:

Q: How is the Gokul PP Screwed End Ball Valve installed?

A: The Gokul PP Screwed End Ball Valve features BSP threaded (screw end) connections, allowing quick and secure installation onto compatible pipes. Ensure proper alignment and threading for a leak-proof fit; use PTFE tape if required for enhanced sealing.

Q: What are the typical applications for this ball valve?

A: This valve is ideal for water handling and industrial flow control systems, ranging from process plants to domestic water supply lines. Its robust polypropylene construction withstands medium pressure and operational temperatures up to 80C, making it suitable for varied environments.

Q: When should I choose a polypropylene (PP) valve over metal alternatives?

A: Polypropylene valves are recommended when chemical resistance, non-corrosive operation, and lightweight installation are priorities. For water-based and many industrial applications, PP valves provide longevity and cost-effectiveness compared to metal equivalents.

Q: Where can this valve be sourced, and who is the manufacturer?

A: Gokul Poly Valves Pvt Ltd, located in India, manufactures and exports the valve globally. It is available through their network of suppliers and service providers serving both domestic and international markets.

Q: What process ensures product quality and reliability?

A: Each valve undergoes stringent manufacturing and testing protocols at Gokul Poly Valves Pvt Ltd, including pressure and leak assessments to meet industry standards for performance and durability.

Q: How does this valve benefit industrial and domestic users?

A: Users gain the advantage of reliable shut-off and flow regulation, minimal maintenance, and excellent resistance to chemicals and temperature fluctuations, lowering overall operational costs and extending equipment life.

Q: What maintenance is required for optimal valve operation?

A: Routine checks for signs of wear or leaks are recommended. The non-reactive polypropylene construction generally reduces the frequency of servicing, but periodic inspection ensures long-term reliability and safety.
