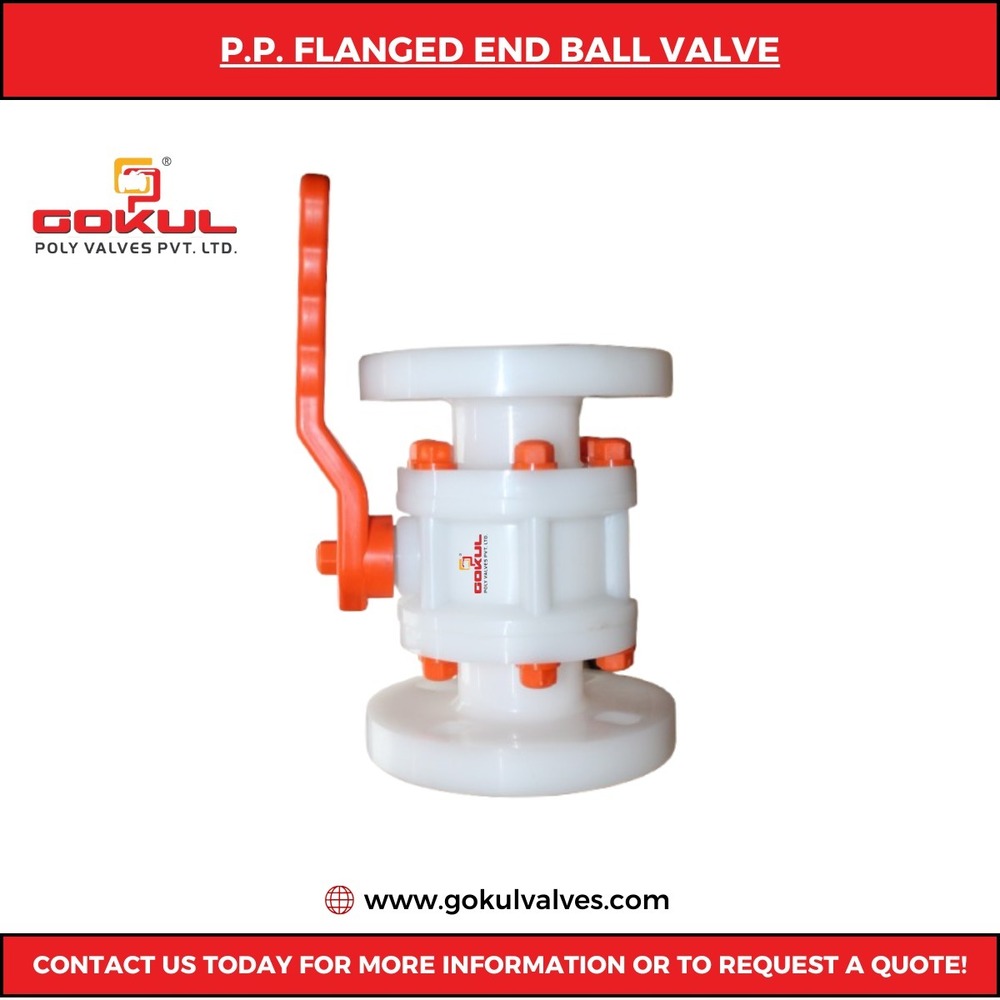

pp ball valve 3/4"

Price 320 INR/ Number

Get a Price/Quote

pp ball valve 3/4" Specification

Pressure
Medium Pressure

Structure
Ball

Caliber
Gokul Poly Valves Pvt Ltd

Channels
Intentional & Domestic Market

Connection
Flanged

Material
Plastic

Usage
Industrial & Water Application

Size
3/4"-20MM

Media
Water

Temperature of Media
80 Celsius (oC)

Product Type
PP Ball Valve

Port Size
3/4"-20MM

Flange
150 class

Color
White

Finish
Polypropylene (PP)

Application
industrial and water application

pp ball valve 3/4" Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
50 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & material Test Certificate

About pp ball valve 3/4"

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore, Tef lon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEF LON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEF LON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

pp ball valve 3/4

pp ball valve 3/4

pp ball valve 3/4

pp ball valve 3/4

pp ball valve 3/4

pp ball valve 3/4

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Email

More Products in Ball Products Category

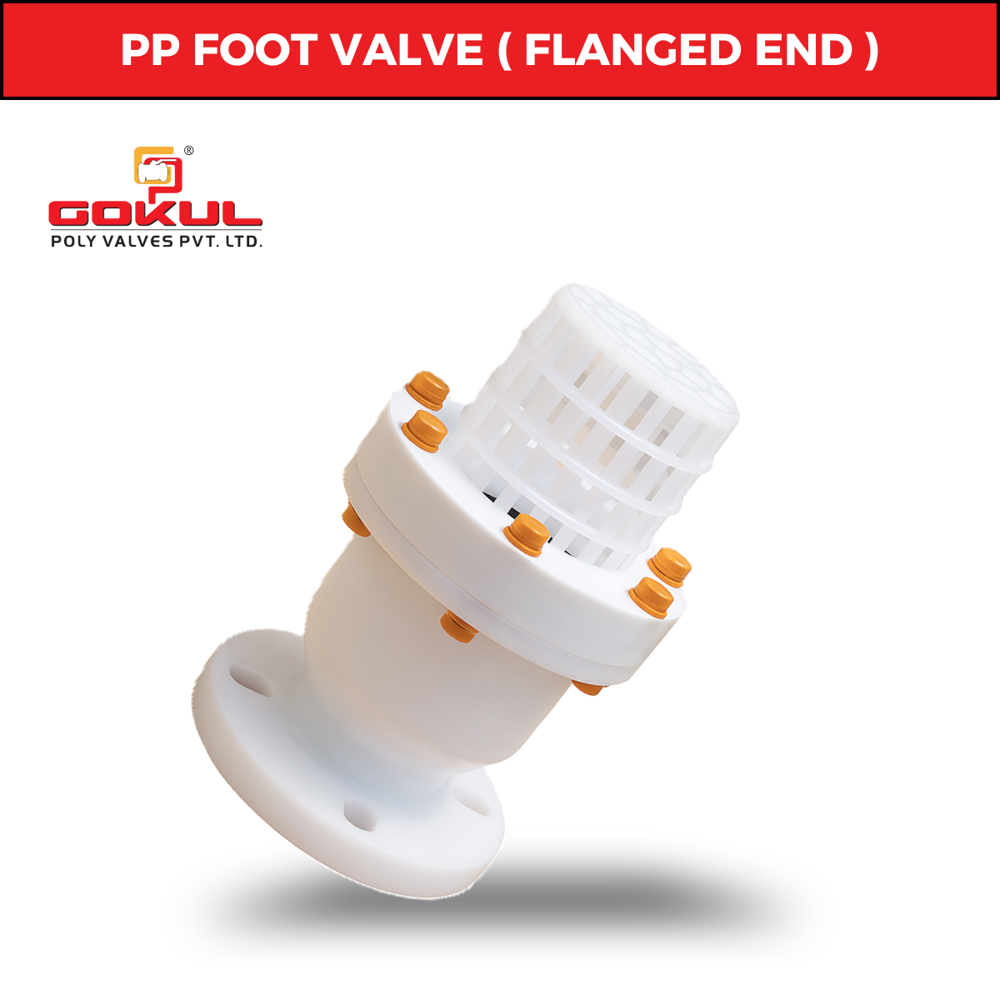

Threaded Polypropylene Foot Valve
