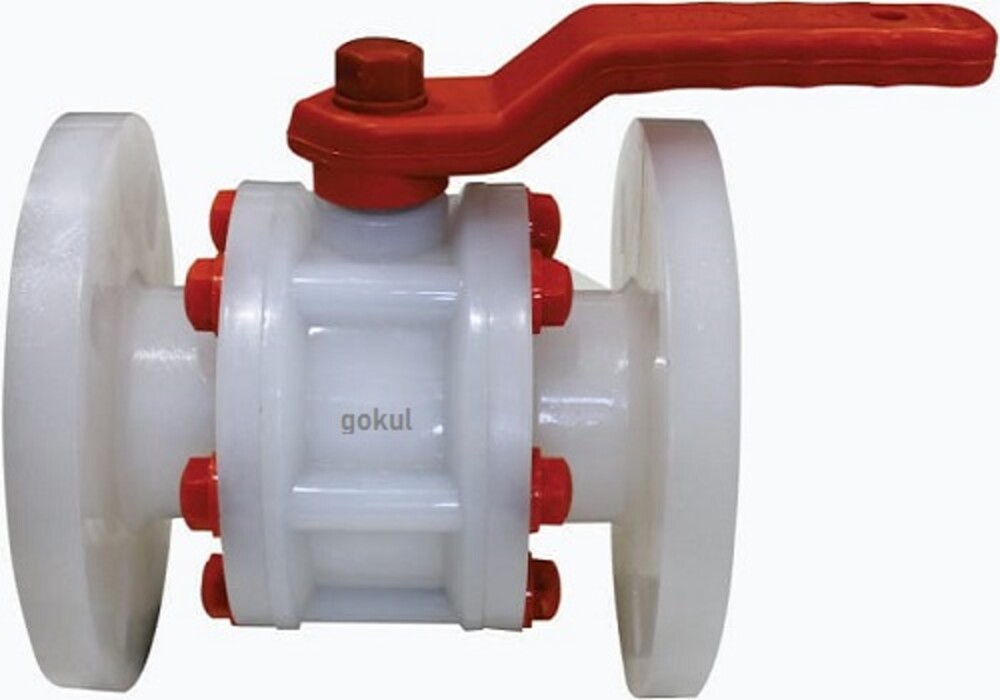

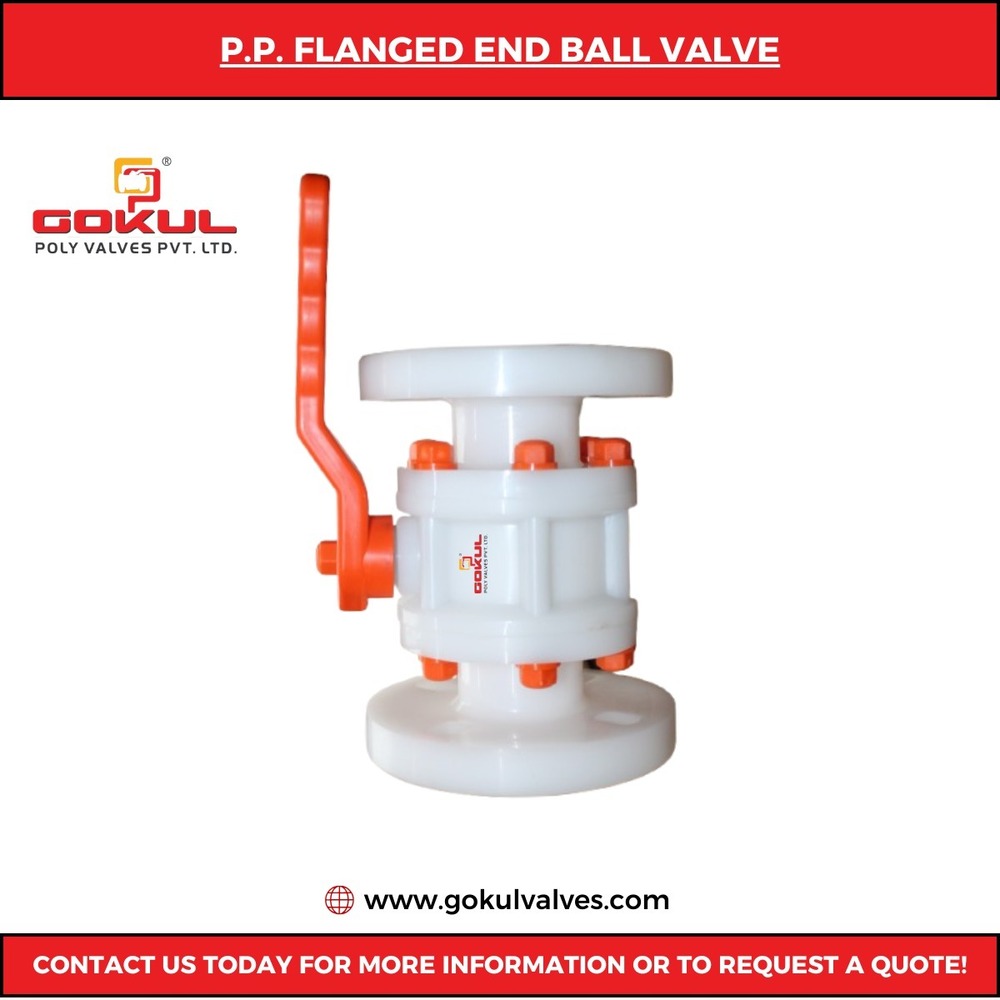

Gokul PP Ball Valve 2.5"

Price 1280 INR/ Number

Get a Price/Quote

Gokul PP Ball Valve 2.5" Specification

  • Channels
  • Intentional & Domestic Market
  • Structure
  • Ball
  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Pressure
  • Medium Pressure
  • Connection
  • Flanged
  • Material
  • Plastic
  • Usage
  • Industrial & Water Application
  • Size
  • 2.5"-63 mm
  • Media
  • Water
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Ball Valve
  • Port Size
  • 2.5"-63mm
  • Color
  • White
  • Flange
  • 150 class
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Gokul PP Ball Valve 2.5" Trade Information

  • Minimum Order Quantity
  • 30 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About Gokul PP Ball Valve 2.5"

Technical Specification

Material Of Construction PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride) Construction 3 piece design, 1 piece stem (spindle), full bore, Tef lon seated
Design 3 piece design Test pressure 08 kg./cm2
Max working temp 70 c (consistently) Size Range " 15MM TO 12ïï-315MM
Connection End Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD. Standard As per manufacturers

Material Specification

No. DESCRIPTION QTY. MATERIAL
1) Flanged end 2 PP / HDPE & PVDF
2) Body 1 PP / HDPE & PVDF
3) Ball 1 PP & PVDF
4) Stem/Spindal 1 Polypropylene With M.S. /S.S
5) Seat Ring 2 PTFE (TEF LON)
6) Body"O"Ring 2 Neoprene
7) Stem Seal Ring 1 PTFE (TEF LON)
8) Stem "O" Ring 1 Neoprene
9) Stud, Nut & Washer REQ M.S. Zinc Plated/S.S
10) Nut Cap REQ Polypropylene.
11) Handle 1 M.S. PP Coated.
12) Handle Hex. Pin 1 M.S./ S.S.
13) Handle Cap 1 Polypropylene.


Exceptional Polypropylene Construction

Manufactured from top-quality polypropylene (PP), the valve exhibits impressive resistance to corrosion and chemical deterioration, ensuring extended service life in harsh industrial settings. The flawless white finish complements overall durability, making it suitable for both water and other compatible media.


Reliable Flanged Connectivity

Featuring a 150 class flanged connection, the ball valve guarantees secure installation and easy integration into various piping systems. This connection type enables quick servicing and replacement while maintaining strong leak-proof performance under medium pressure conditions.

FAQs of Gokul PP Ball Valve 2.5":


Q: How is the Gokul PP Ball Valve 2.5" typically installed in water and industrial systems?

A: This valve is designed for flanged mounting, using its 150 class flanges to securely connect to plumbing or process pipelines. Installation requires alignment with corresponding flanges, followed by bolt tightening to ensure leak-free operation.

Q: What are the key benefits of using polypropylene (PP) for this ball valve?

A: Polypropylene offers excellent resistance to corrosion, chemicals, and scaling, making the valve durable in aggressive environments and guaranteeing minimal maintenance requirements throughout its service life.

Q: Where can the Gokul PP Ball Valve 2.5" be effectively used?

A: It is suitable for both industrial setups and water applications, including domestic markets. Typical installations include water treatment plants, chemical processing units, and other systems where reliable flow control for water or similar media is required.

Q: What is the maximum operating temperature and pressure for the valve?

A: The valve is rated for medium-pressure applications and can withstand media temperatures up to 80 Celsius (oC), making it ideal for most general-purpose water and process systems.

Q: Which company manufactures and supplies the Gokul PP Ball Valve 2.5"?

A: This valve is designed, manufactured, and exported by Gokul Poly Valves Pvt Ltd, a reputable provider catering to Indian and international markets with high-quality valve solutions.

Q: When should this valve be maintained or serviced?

A: Routine inspections are recommended, especially in high-usage or critical systems. Service intervals may vary based on operating conditions, but its PP construction typically means less frequent maintenance is required compared to metal valves.

Q: What is the process for replacing or servicing this valve?

A: To service or replace the valve, first isolate the section of pipe, relieve any pressure, and unbolt the flanged connections. The ball valve can then be safely removed, serviced as needed, or replaced with minimal system downtime.
