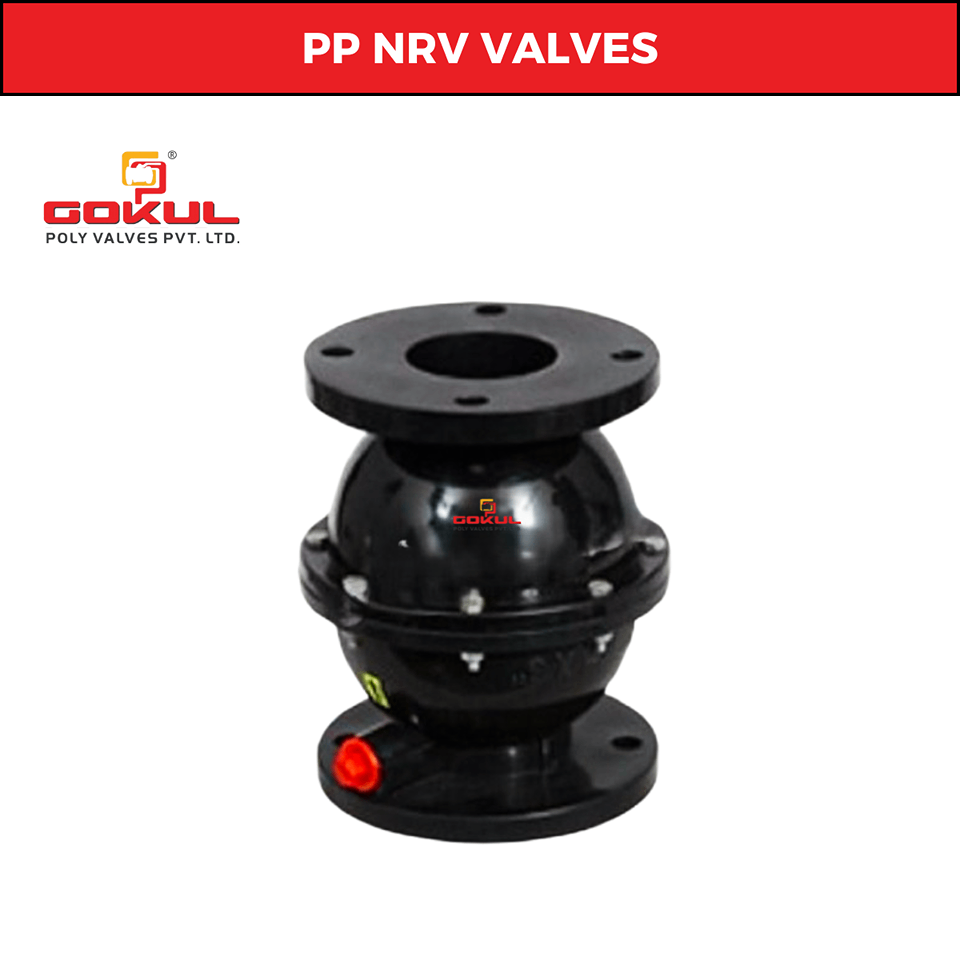

PP Non return Valve Nrv

Price 560 INR/ Number

Get a Price/Quote

PP Non return Valve Nrv Specification

  • Pressure
  • Medium Pressure
  • Channels
  • Intentional & Domestic Market
  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Structure
  • Ball
  • Connection
  • Flanged
  • Material
  • Plastic
  • Usage
  • Industrial & Water Application
  • Media
  • Water
  • Size
  • 1" To 12"
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Non Return Valve Flanged
  • Port Size
  • 1" to 12"
  • Flange
  • 150 class
  • Color
  • White
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


PP Non return Valve Nrv Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About PP Non return Valve Nrv

Technical Specification Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 25MM to 315MM Test pressure 10 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Top Body Polypropylene 1 2) Bottom body Polypropylene 1 3) Ball Polypropylene 1 4) Ball Ring Polypropylene 1 5) Seat Ring Neoprene Rubber 1 6) Stud, Nut & Washer SS Req.

FAQs of PP Non return Valve Nrv:


Q: What are the connection types available for the PP Non-Return Valve NRV?

A: The PP Non-Return Valve NRV comes with a flanged connection type.

Q: What is the maximum temperature of media that the valve can handle?

A: The valve can handle media temperatures up to 80C.

Q: What is the size range available for the PP Non-Return Valve NRV?

A: The valve is available in sizes ranging from 1 inch to 12 inches.

Q: What material is used for manufacturing the valve?

A: The valve is made of plastic with a polypropylene (PP) finish.

Q: What are the primary applications of the PP Non-Return Valve NRV?

A: The valve is used for industrial and water applications.

Q: What is the pressure rating of this valve?

A: The valve is designed to handle medium pressure.

Q: Is this product suitable for international and domestic markets?

A: Yes, it is designed for both international and domestic markets.

PP Non return Valve Nrv
PP Non return Valve Nrv
PP Non return Valve Nrv
PP Non return Valve Nrv
PP Non return Valve Nrv
PP Non return Valve Nrv
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Ball Products Category

PP Foot Valve Screw End 1.5

PP Foot Valve Screw End 1.5"

Price 460 INR / Number

Minimum Order Quantity : 10

Channels : Intentional & Domestic Market

Port Size : 1.5"40mm

Finish : Polypropylene (PP)

Temperature of Media : 80 Celsius (oC)

Get a Price/Quote
Gokul PP Non Return Valve Flange End

Gokul PP Non Return Valve Flange End

Price 1540 INR / Number

Minimum Order Quantity : 10

Channels : Intentional & Domestic Market

Port Size : 1" To 12"

Finish : Polypropylene (PP)

Temperature of Media : 80 Celsius (oC)

Get a Price/Quote

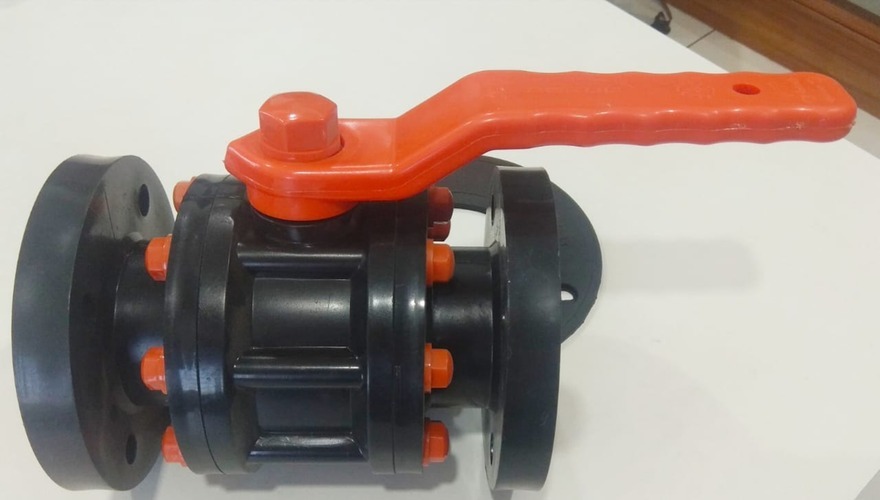

Gokul PP Ball valve Flange End 3
