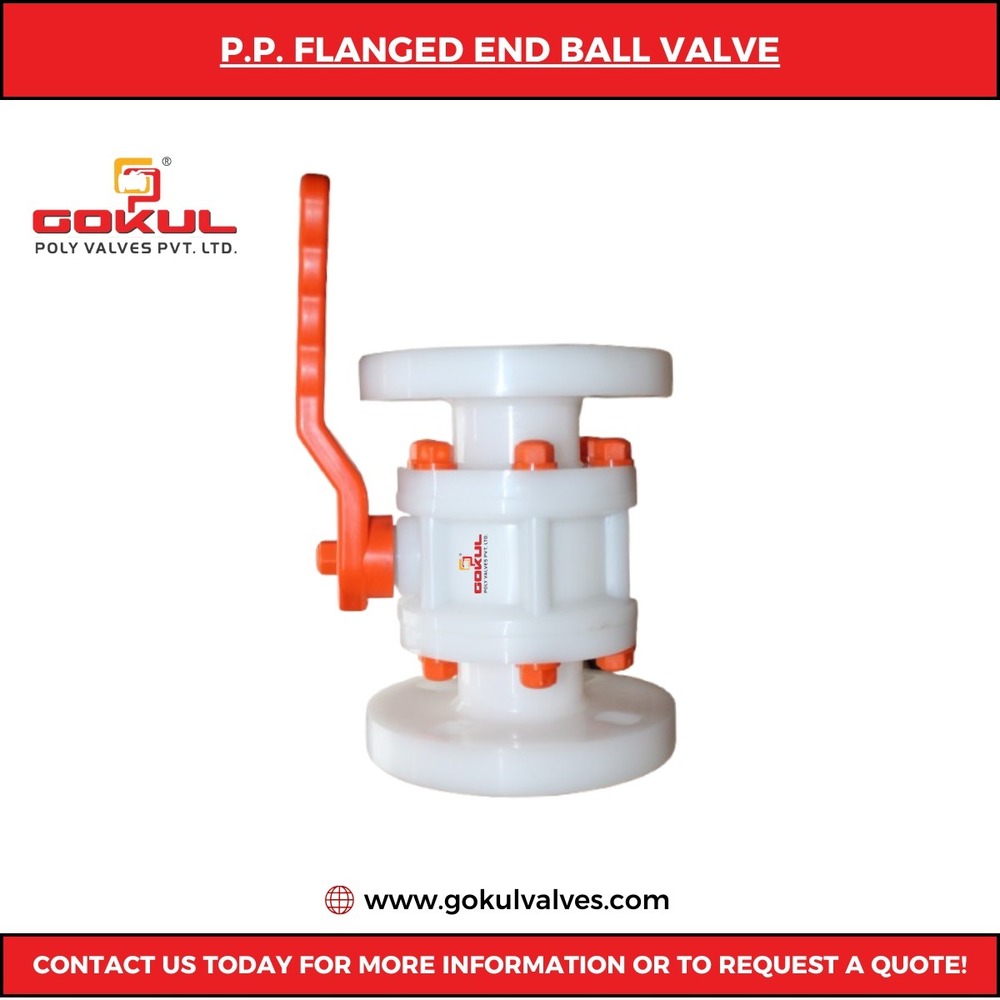

Gokul PP Ball Valve Flange End 1/2"

Price 315 INR/ Number

Get a Price/Quote

Gokul PP Ball Valve Flange End 1/2" Specification

Channels
Intentional & Domestic Market

Structure
Ball

Connection
Flanged

Caliber
Gokul Poly Valves Pvt Ltd

Pressure
Medium Pressure

Usage
Industrial & Water Application

Material
Plastic

Media
Water

Size
1/2"-15MM

Temperature of Media
80 Celsius (oC)

Product Type
PP Ball Valve Flange End

Port Size
1/2"-15mm

Color
White

Flange
150 class

Finish
Polypropylene (PP)

Application
industrial and water application

Gokul PP Ball Valve Flange End 1/2" Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About Gokul PP Ball Valve Flange End 1/2"

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore, Tef lon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12ïï-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEF LON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEF LON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Versatility in Application

This PP ball valve is suitable for a wide array of industrial and water-related purposes, adapting efficiently to both process controls and distribution systems. Its polypropylene construction ensures resistance to corrosive environments and chemicals, making it a reliable choice for consistent usage in varied sectors.

Durable Construction & Design

Made with high-quality polypropylene, the valve provides superior durability and thermal stability, operating flawlessly up to 80C. The flanged ends offer secure connections, reducing the risk of leaks and enabling straightforward installation and maintenance.

Trusted Manufacturing & Export

Gokul Poly Valves Pvt Ltd stands as a reputed exporter, manufacturer, supplier, and service provider in India. Their expertise ensures each PP ball valve meets stringent standards, delivering optimal performance and dependability whether used domestically or for international markets.

FAQs of Gokul PP Ball Valve Flange End 1/2":

Q: How is the Gokul PP Ball Valve Flange End installed in industrial or water setups?

A: This valve is installed using its flanged ends, which align with 150 class standards for reliable and secure mounting. Professional installation ensures proper alignment and tight sealing, which is essential for smooth operation and minimal leakage.

Q: What benefits does polypropylene (PP) offer for this ball valve?

A: Polypropylene provides excellent chemical and corrosion resistance, thermal stability up to 80C, and lightweight durability. This makes the valve suitable for various industrial and water applications, ensuring long service life and reduced maintenance needs.

Q: When should this valve be used in industrial or domestic water systems?

A: It is best applied when medium-pressure control is required and where water or non-aggressive chemicals are being transported. Its 1/2"-15mm size suits pipeline systems needing consistent shut-off or flow regulation within the specified temperature range.

Q: Where is the Gokul PP Ball Valve commonly utilized?

A: This valve is widely employed in industrial facilities, water treatment plants, and across domestic water distribution systems throughout India and globally. Its versatility supports broad intent and domestic market channels.

Q: What is the process for maintaining this ball valve?

A: Routine inspection involves checking for leaks, verifying tightness of flange mounting, and ensuring unobstructed ball movement. Periodic cleaning and seal replacement are recommended to keep the valve functioning optimally.

Q: How does the ball structure enhance valve performance?

A: The ball structure allows for quick shut-off and precise flow control. Its internal design results in minimal pressure drop and smooth operation, making it advantageous for maintaining consistent system performance.
