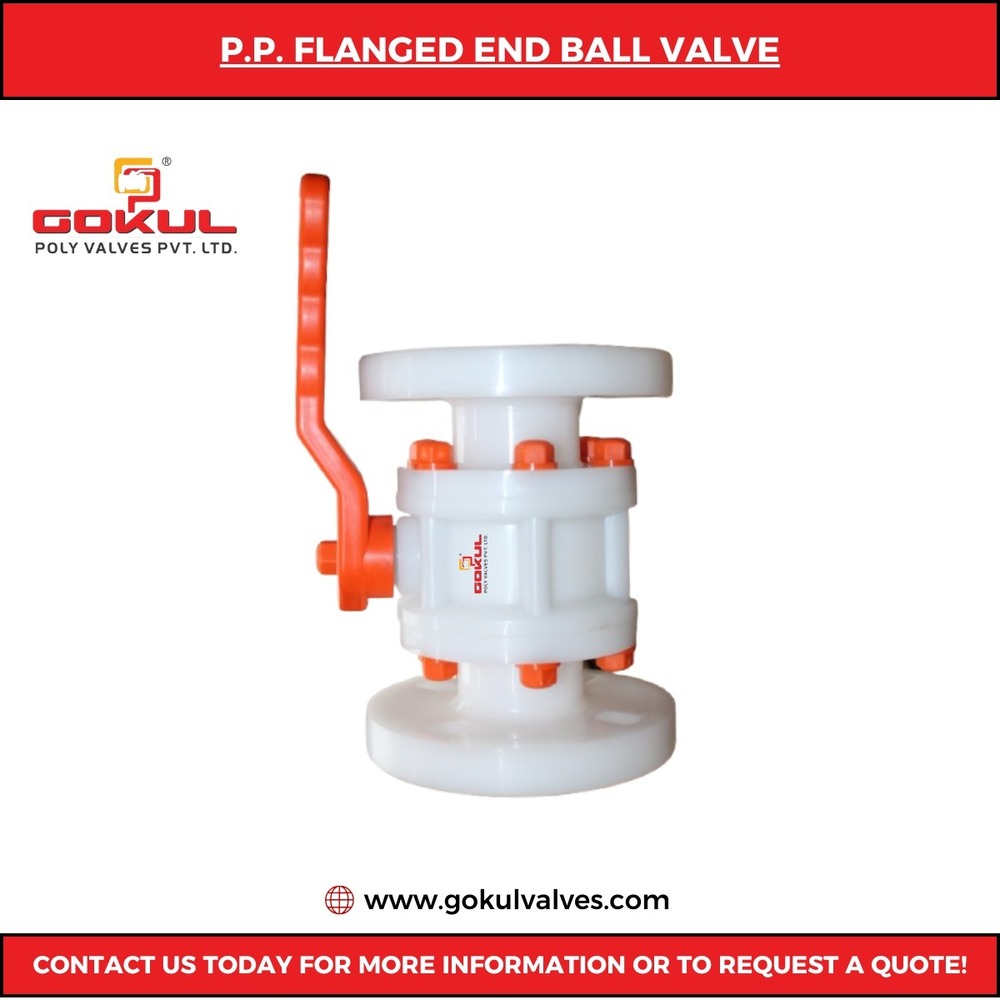

Gokul PP Ball valve Flange End 1.5"

635 INR/Number

Get a Price/Quote

Product Details:

Size 1.5"-40mm
Structure Ball
Product Type PP Ball Valve Flange End
Connection Flanged
Caliber Gokul Poly Valves Pvt Ltd
Color White
Pressure Medium Pressure
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Gokul PP Ball valve Flange End 1.5" Price And Quantity

Minimum Order Quantity 10 Number
Price Range 635.00 - 635.00 INR/Number
Price 635 INR/Number

Gokul PP Ball valve Flange End 1.5" Product Specifications

Structure Ball
Size 1.5"-40mm
Application industrial and water application
Finish Polypropylene (PP)
Color White
Product Type PP Ball Valve Flange End
Caliber Gokul Poly Valves Pvt Ltd
Connection Flanged
Flange 150 class
Media Water
Pressure Medium Pressure
Material Plastic
Temperature of Media 80 Celsius (oC)
Port Size 1.5"-40mm
Channels Intentional & Domestic Market
Usage Industrial & Water Application

Gokul PP Ball valve Flange End 1.5" Trade Information

FOB Port Ahmedabad
Payment Terms Cash Advance (CA) Cash in Advance (CID) Cheque
Supply Ability 10 Number Per Day
Delivery Time 1 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Box Packing
Main Export Market(s) Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
Main Domestic Market All India
Certifications ISO & Material Test Certificate

Product Description

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore, Teflon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12ïï-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEFLON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEFLON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.
