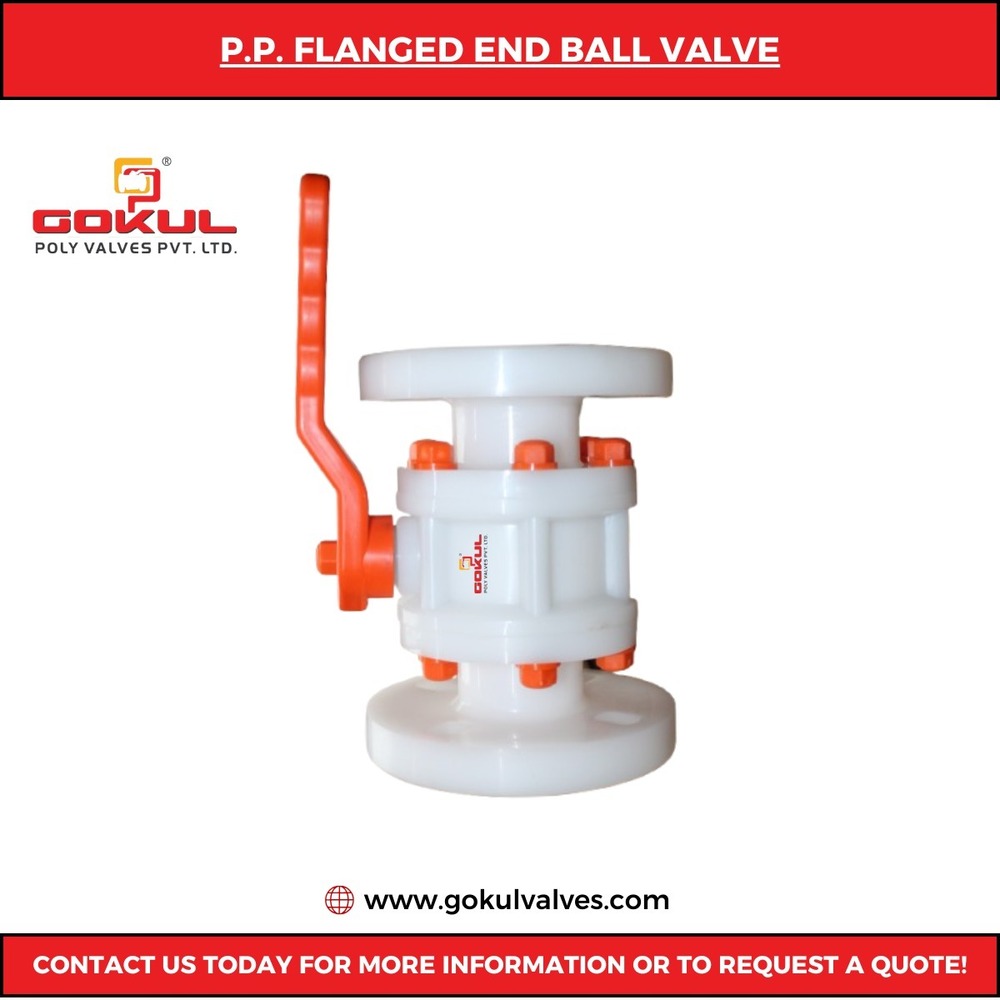

Gokul PP Ball valve Flange End 3/4"

Price 320 INR/ Number

Get a Price/Quote

Gokul PP Ball valve Flange End 3/4" Specification

  • Channels
  • Intentional & Domestic Market
  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Structure
  • Ball
  • Connection
  • Flanged
  • Pressure
  • Medium Pressure
  • Usage
  • Industrial & Water Application
  • Material
  • Plastic
  • Size
  • 3/4"-20MM
  • Media
  • Water
  • Temperature of Media
  • 80 Celsius (oC)
  • Port Size
  • 3/4"-20MM
  • Flange
  • 150 class
  • Color
  • White
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Gokul PP Ball valve Flange End 3/4" Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About Gokul PP Ball valve Flange End 3/4"

Technical Specification Material Of Construction PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride) Construction 3 piece design, 1 piece stem (spindle), full bore, Tef-lon seated Design 3 piece design Test pressure 08 kg./cm2 Max working temp 70 c (consistently) Size Range " 15MM TO 12-315MM Connection End Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD. Standard As per manufacturers Material Specification No. DESCRIPTION QTY. MATERIAL 1) Flanged end 2 PP / HDPE & PVDF 2) Body 1 PP / HDPE & PVDF 3) Ball 1 PP & PVDF 4) Stem/Spindal 1 Polypropylene With M.S. /S.S 5) Seat Ring 2 PTFE (TEF-LON) 6) Body"O"Ring 2 Neoprene 7) Stem Seal Ring 1 PTFE (TEF-LON) 8) Stem "O" Ring 1 Neoprene 9) Stud, Nut & Washer REQ M.S. Zinc Plated/S.S 10) Nut Cap REQ Polypropylene. 11) Handle 1 M.S. PP Coated. 12) Handle Hex. Pin 1 M.S./ S.S. 13) Handle Cap 1 Polypropylene.

FAQs of Gokul PP Ball valve Flange End 3/4":


Q: What is the material used in the Gokul PP Ball Valve Flange End 3/4"?

A: The Gokul PP Ball Valve Flange End 3/4" is made of Polypropylene (PP), a durable plastic material.

Q: What is the maximum operating temperature for the media in this ball valve?

A: The maximum operating temperature for the media in the Gokul PP Ball Valve Flange End 3/4" is 80C.

Q: What type of connection does this ball valve have?

A: The Gokul PP Ball Valve Flange End 3/4" features a flanged connection.

Q: What is the pressure rating for this ball valve?

A: The Gokul PP Ball Valve Flange End 3/4" is designed to handle medium-pressure applications.

Q: What applications is this ball valve suitable for?

A: The Gokul PP Ball Valve Flange End 3/4" is suitable for industrial and water applications.

Q: What is the size and port dimension of the Gokul PP Ball Valve Flange End?

A: The size and port dimension of the Gokul PP Ball Valve Flange End is 3/4"-20MM.

Q: What color is the Gokul PP Ball Valve Flange End 3/4"?

A: The Gokul PP Ball Valve Flange End 3/4" is white in color.
