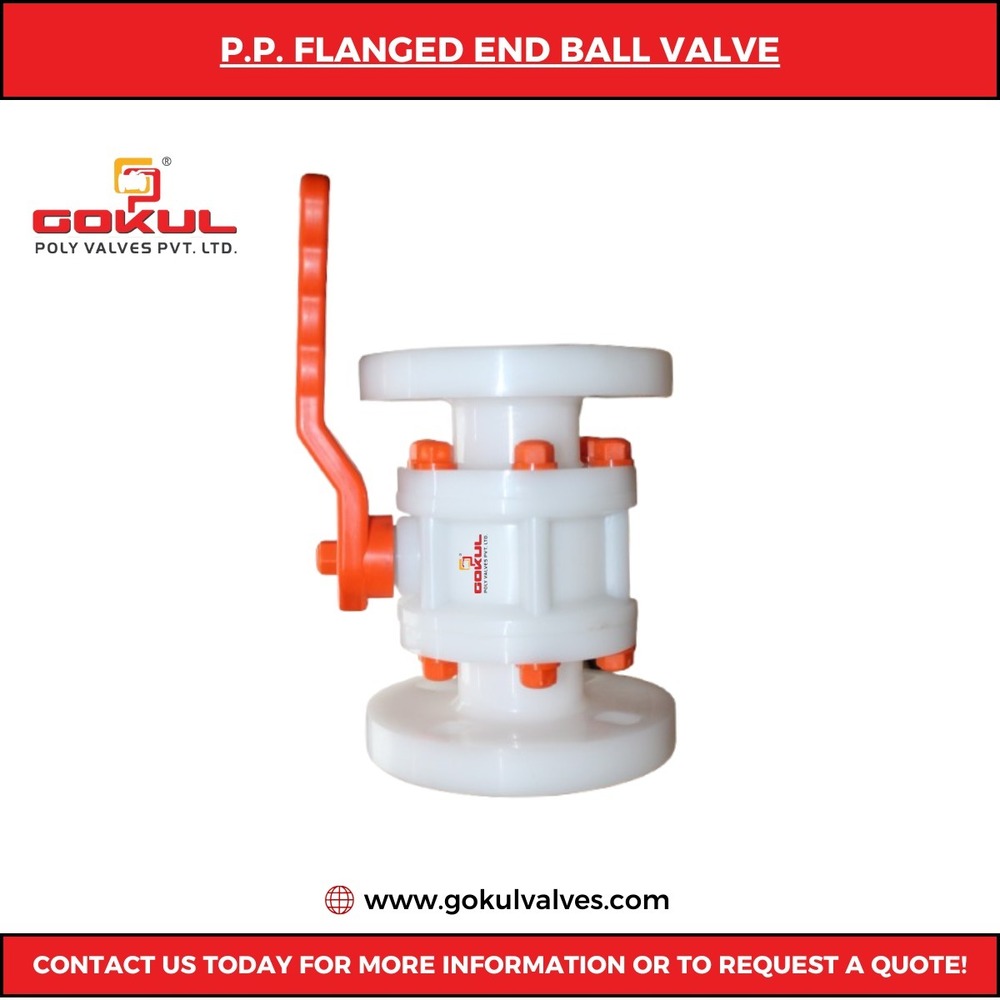

Gokul PP Ball valve Flange End 6"

Price 8360 INR/ Number

Get a Price/Quote

Gokul PP Ball valve Flange End 6" Specification

Usage
Industrial & Water Application

Size
6"-150MM

Product Type
PP Ball Valve Flange End

Color
White

Gokul PP Ball valve Flange End 6" Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Per Day

Delivery Time
2 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About Gokul PP Ball valve Flange End 6"

Technical Specification Material Of Construction PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride) Construction 3 piece design, 1 piece stem (spindle), full bore, Tef lon seated Design 3 piece design Test pressure 08 kg./cm2 Max working temp 70 c (consistently) Size Range " 15MM TO 12-315MM Connection End Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD. Standard As per manufacturers Material Specification No. DESCRIPTION QTY. MATERIAL 1) Flanged end 2 PP / HDPE & PVDF 2) Body 1 PP / HDPE & PVDF 3) Ball 1 PP & PVDF 4) Stem/Spindal 1 Polypropylene With M.S. /S.S 5) Seat Ring 2 PTFE (TEF LON) 6) Body"O"Ring 2 Neoprene 7) Stem Seal Ring 1 PTFE (TEF LON) 8) Stem "O" Ring 1 Neoprene 9) Stud, Nut & Washer REQ M.S. Zinc Plated/S.S 10) Nut Cap REQ Polypropylene. 11) Handle 1 M.S. PP Coated. 12) Handle Hex. Pin 1 M.S./ S.S. 13) Handle Cap 1 Polypropylene.

FAQs of Gokul PP Ball valve Flange End 6":

Q: What is the connection type of the Gokul PP Ball Valve Flange End 6"?

A: The connection type of the Gokul PP Ball Valve Flange End 6" is flanged.

Q: What is the temperature range that the Gokul PP Ball Valve Flange End 6" can handle?

A: The Gokul PP Ball Valve Flange End 6" can handle media temperatures up to 80C.

Q: What material is used in the construction of the Gokul PP Ball Valve Flange End 6"?

A: The valve is made from polypropylene (PP) plastic material.

Q: What size and pressure rating does the Gokul PP Ball Valve Flange End 6" have?

A: The valve size is 6"-150MM, and it is designed for medium pressure applications.

Q: What applications are suitable for the Gokul PP Ball Valve Flange End 6"?

A: The valve is suitable for industrial and water applications.

Gokul PP Ball valve Flange End 6

Gokul PP Ball valve Flange End 6

Gokul PP Ball valve Flange End 6

Gokul PP Ball valve Flange End 6

Gokul PP Ball valve Flange End 6

Gokul PP Ball valve Flange End 6

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Email

More Products in Ball Products Category

PP Non Return Valve Screwed

PP Non Return Valve Screwed

Price 1340 INR / Number

Minimum Order Quantity : 10

Color : White

Size : 1" To 4"

Usage : Industrial & Water Application

Product Type : PP Non Return Valve Screw End

Get a Price/Quote

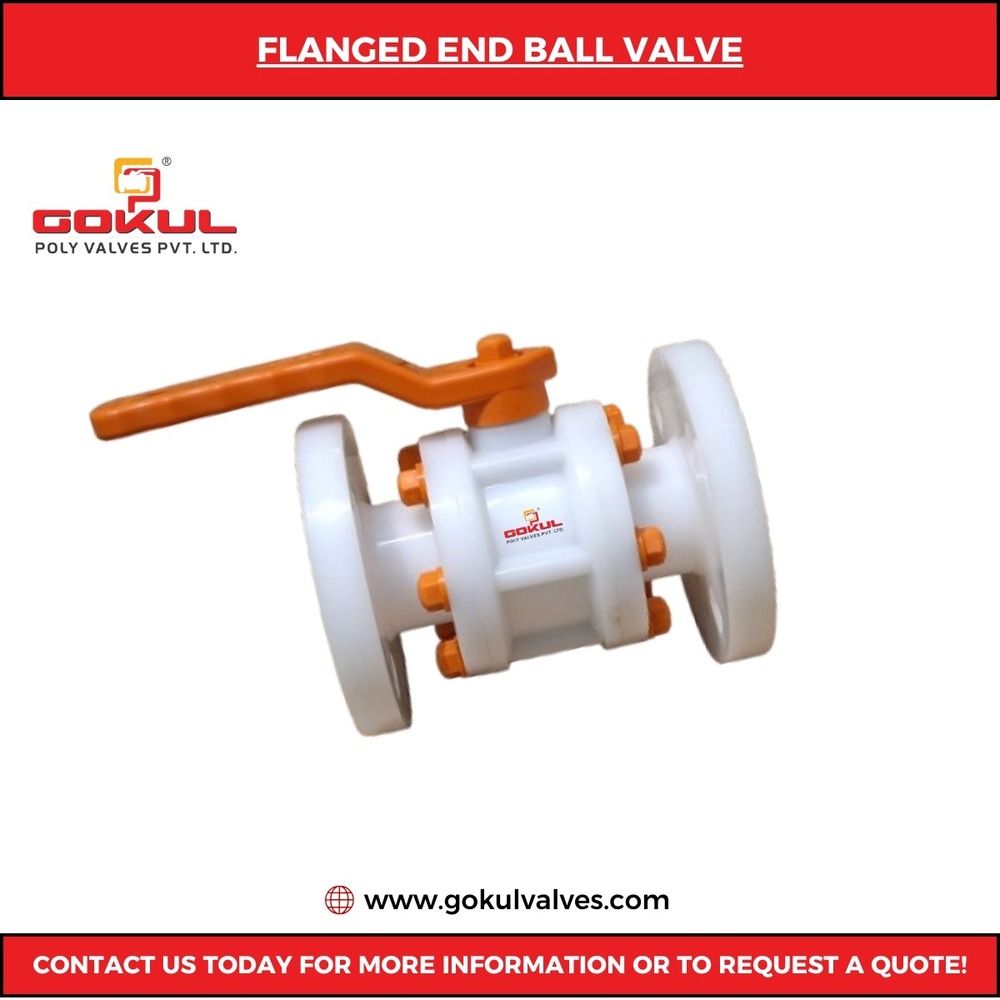

Pp Ball Valve Flange End 1

Pp Ball Valve Flange End 1"

Price 394 INR / Piece

Minimum Order Quantity : 20 Pieces

Color : White

Size : 1"25MM

Usage : Industrial & Water Application

Product Type : PP Ball Valve Flange End

Get a Price/Quote

Gokul Polypropylene Diaphragm Valve Screwed End

Gokul Polypropylene Diaphragm Valve Screwed End

Price 325 INR / Number

Minimum Order Quantity : 10

Color : White

Size : 1/2" To 1"

Usage : Industrial & Water Application

Product Type : PP Diaphragm Valve Screw End

Get a Price/Quote

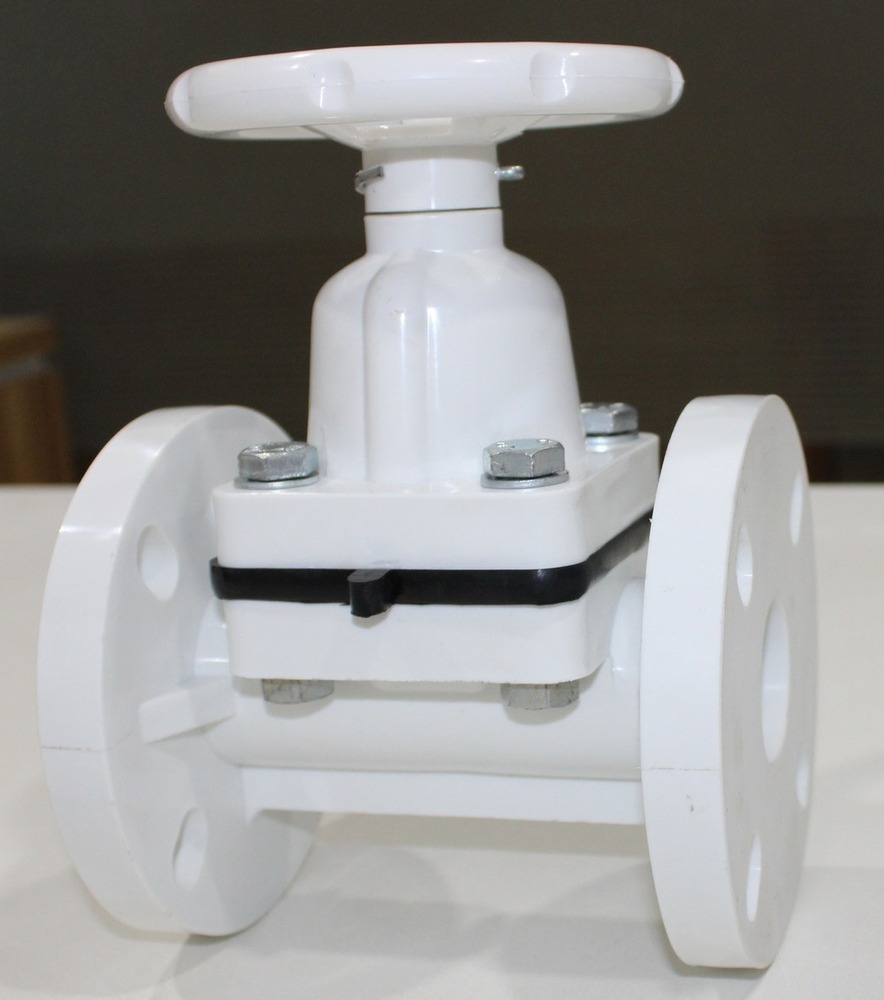

Gokul PP Diaphragm Flange End Valve 2
