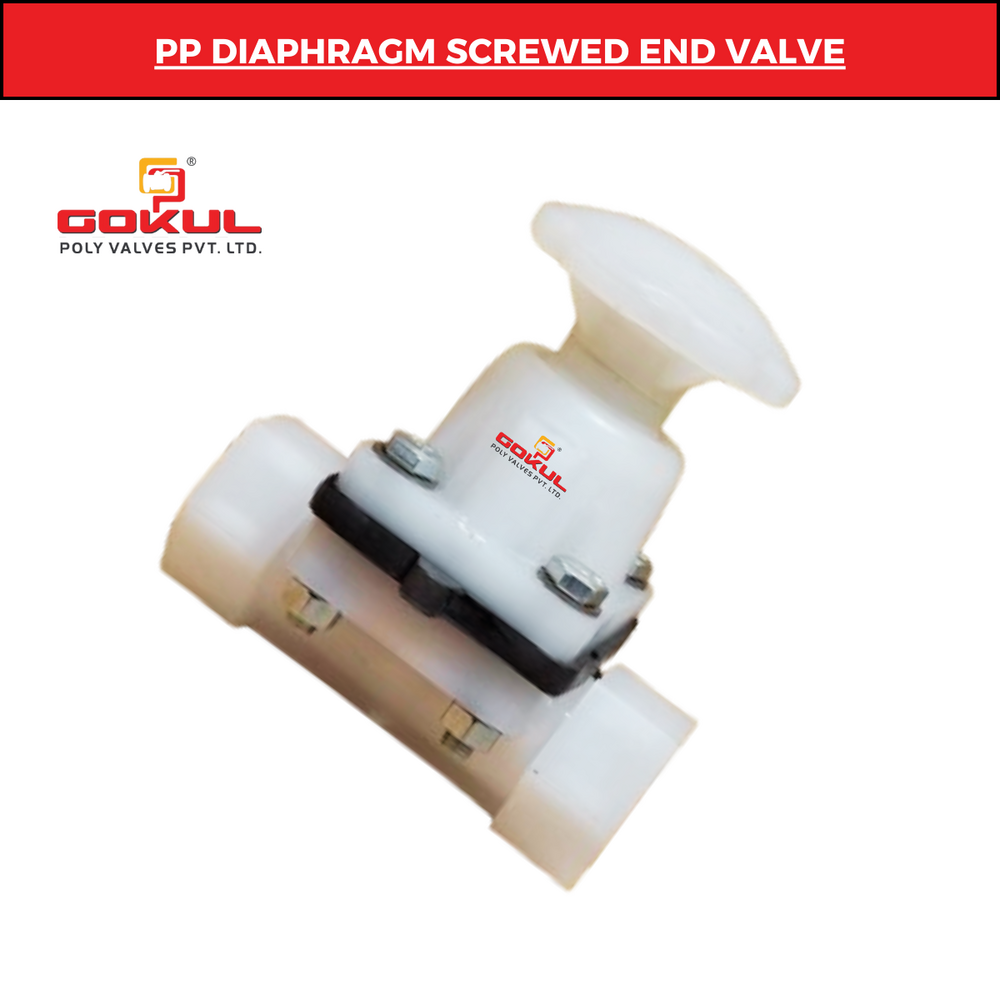

Gokul PP Diaphragm Screwed End Valve

About Gokul PP Diaphragm Screwed End Valve

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	weir type design,Soft seated, raising stem
Design	2 Piece Design	Connection End	Screw end (BSP thread)
Size Range	15MM to 150MM	Test pressure	6 kg./cm2
Max working temp	70 c (consistently)	Standard	As per manufacturer

Material Specification
No.	DESCRIPTION	MATERIAL	QTY.
1)	Body	Polypropylene	1
2)	Bonnet	Polypropylene	1
3)	Hand wheel	Polypropylene	1
4)	Diaphragm	Neoprene Rubber	1
5)	Compressor	PP	1
6)	Stem / Spindel	M.S. /Brass	1
7)	Nut	M.S./ S.S.	1
8)	Pin	M.S./ S.S.	1
9)	Bolt, Nut, Washer	M.S./ S.S.	REQ
10)	Cap	Polypropylene	1

Precision Control for Water Applications

Designed for both industrial and domestic markets, the Gokul PP Diaphragm Valve ensures precise fluid regulation in water supply systems. Its polypropylene material provides chemical resistance, making it reliable for handling medium pressure and varying temperatures. Ideal for sustained usage, this valve excels in environments where performance and durability are vital.


Ease of Installation and Versatile Connections

The screwed end BSP threaded valve offers seamless integration into existing pipelines, simplifying installation and maintenance. With flanged screw end connections and a compact size range, it adapts readily to different system requirements, streamlining the implementation process for manufacturers, suppliers, and end users alike.
