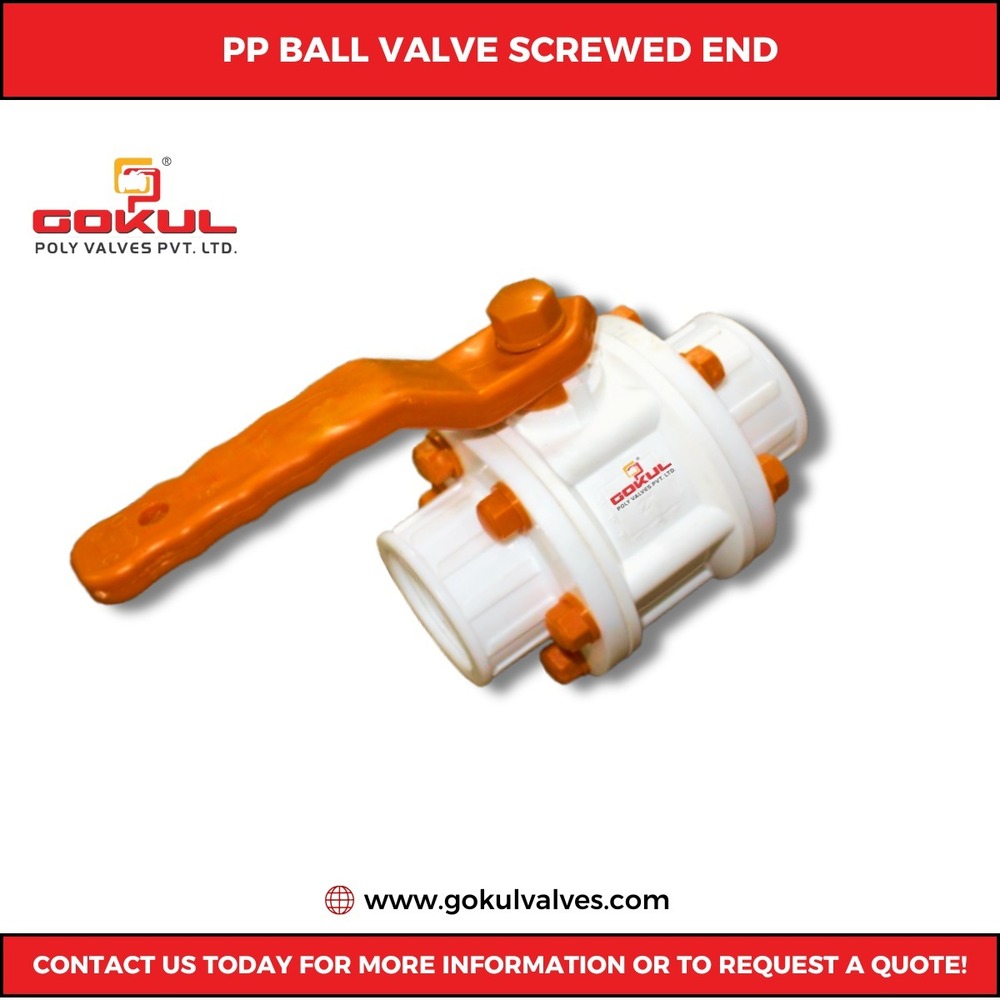

Gokul Screw End PP Ball Valve. Gokul Screw End PP Ball Valve. Gokul Screw End PP Ball Valve. Gokul Screw End PP Ball Valve. Gokul Screw End PP Ball Valve. Gokul Screw End PP Ball Valve. Gokul Screw End PP Ball Valve. Gokul Screw End PP Ball Valve. Gokul Screw End PP Ball Valve. Gokul Screw End PP Ball Valve. Gokul Screw End PP Ball Valve.

Gokul Screw End PP Ball Valve.

560 INR/Number

Product Details:

  • Channels Intentional & Domestic Market
  • Color White
  • Connection Screw End (BSP Threaded)
  • Usage Industrial & Water Application
  • Pressure Medium Pressure
  • Caliber Gokul Poly Valves Pvt Ltd
  • Structure Ball
  • Click to view more
X

Gokul Screw End PP Ball Valve. Price And Quantity

  • 560.00 - 560.00 INR/Number
  • 560 INR/Number
  • 20 Number

Gokul Screw End PP Ball Valve. Product Specifications

  • 1/2" To 4"
  • PP Screw End Ball Valve
  • Water
  • industrial and water application
  • Gokul Poly Valves Pvt Ltd
  • 1/2" To 4"
  • Ball
  • Polypropylene (PP)
  • 80 Celsius (oC)
  • BSP Threaded
  • Screw End (BSP Threaded)
  • Industrial & Water Application
  • Intentional & Domestic Market
  • Plastic
  • White
  • Medium Pressure

Gokul Screw End PP Ball Valve. Trade Information

  • Ahmedabad
  • Cash Advance (CA) Cash in Advance (CID) Cheque
  • 50 Number Per Day
  • 2 Days
  • Yes
  • Contact us for information regarding our sample policy
  • Box Packing
  • Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
  • All India
  • ISO & Material Test Certificate

Product Description

Technical Specification

Material Of Construction PP (Polypropylene) Construction 3 piece design, 1 piece stem (spindle), full bore, Teflon seated
Design 3 piece design Test pressure 08 kg./cm2
Max working temp 70 c (consistently) Size Range "- 15MM TO 100MM- 4ï
Connection End Screw end (BSP thread) Standard As per manufacturer

Material Specification

NO. DESCRIPTION QTY. MATERIAL
1) Flanged end 2 Polypropylene
2) Body 1 Polypropylene
3) Ball 1 Polypropylene
4) Stem/Spindal 1 Polypropylene With M.S. /S.S
5) Seat Ring 2 PTFE (TEFLON)
6) Body"O"Ring 2 Neoprene
7) Stem Seal Ring 1 PTFE (TEFLON)
8) Stem "O" Ring 1 Neoprene
9) Stud, Nut & Washer REQ M.S. Zinc Plated/S.S
10) Nut Cap REQ Polypropylene.
11) Handle 1 M.S. PP Coated.
12) Handle Hex. Pin 1 M.S./ S.S.
13) Handle Cap 1 Polypropylene.
