Gokul Threaded End Polypropylene Diaphragm Valve

Price 390 INR/ Number

Get a Price/Quote

Gokul Threaded End Polypropylene Diaphragm Valve Specification

  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Structure
  • Ball
  • Channels
  • Intentional & Domestic Market
  • Connection
  • Screw End (BSP Threaded)
  • Pressure
  • Medium Pressure
  • Material
  • Plastic
  • Media
  • Water
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Diaphragm Valve Screw End
  • Port Size
  • 1/2" To 1"
  • Color
  • White
  • Flange
  • BSP Threaded
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Gokul Threaded End Polypropylene Diaphragm Valve Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About Gokul Threaded End Polypropylene Diaphragm Valve

Technical Specification Material Of Construction PP (Polypropylene) Construction weir type design,Soft seated, raising stem Design 2 Piece Design Connection End Screw end (BSP thread) Size Range 15MM to 150MM Test pressure 6 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Body Polypropylene 1 2) Bonnet Polypropylene 1 3) Hand wheel Polypropylene 1 4) Diaphragm Neoprene Rubber 1 5) Compressor PP 1 6) Stem / Spindel M.S. /Brass 1 7) Nut M.S./ S.S. 1 8) Pin M.S./ S.S. 1 9) Bolt, Nut, Washer M.S./ S.S. REQ 10) Cap Polypropylene 1

FAQs of Gokul Threaded End Polypropylene Diaphragm Valve:


Q: What type of connection does the Gokul Threaded End Polypropylene Diaphragm Valve have?

A: The valve is equipped with a screw end connection featuring BSP threading.

Q: What material is used in the construction of this diaphragm valve?

A: The valve is made of polypropylene (PP) plastic.

Q: What is the suitable media for this valve?

A: The valve is designed for use with water.

Q: What temperature can the media handle in this diaphragm valve?

A: The valve can handle media temperatures up to 80C.

Q: What pressure level is this diaphragm valve suitable for?

A: The valve is designed to operate under medium pressure conditions.

Q: What are the available port sizes for this diaphragm valve?

A: The valve comes in port sizes ranging from 1/2" to 1".

Q: For what applications is the Gokul Threaded End Polypropylene Diaphragm Valve suitable?

A: The valve is suitable for industrial and water applications.

Gokul Threaded End Polypropylene Diaphragm Valve
Gokul Threaded End Polypropylene Diaphragm Valve
Gokul Threaded End Polypropylene Diaphragm Valve
Gokul Threaded End Polypropylene Diaphragm Valve
Gokul Threaded End Polypropylene Diaphragm Valve
Gokul Threaded End Polypropylene Diaphragm Valve
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Ball Products Category

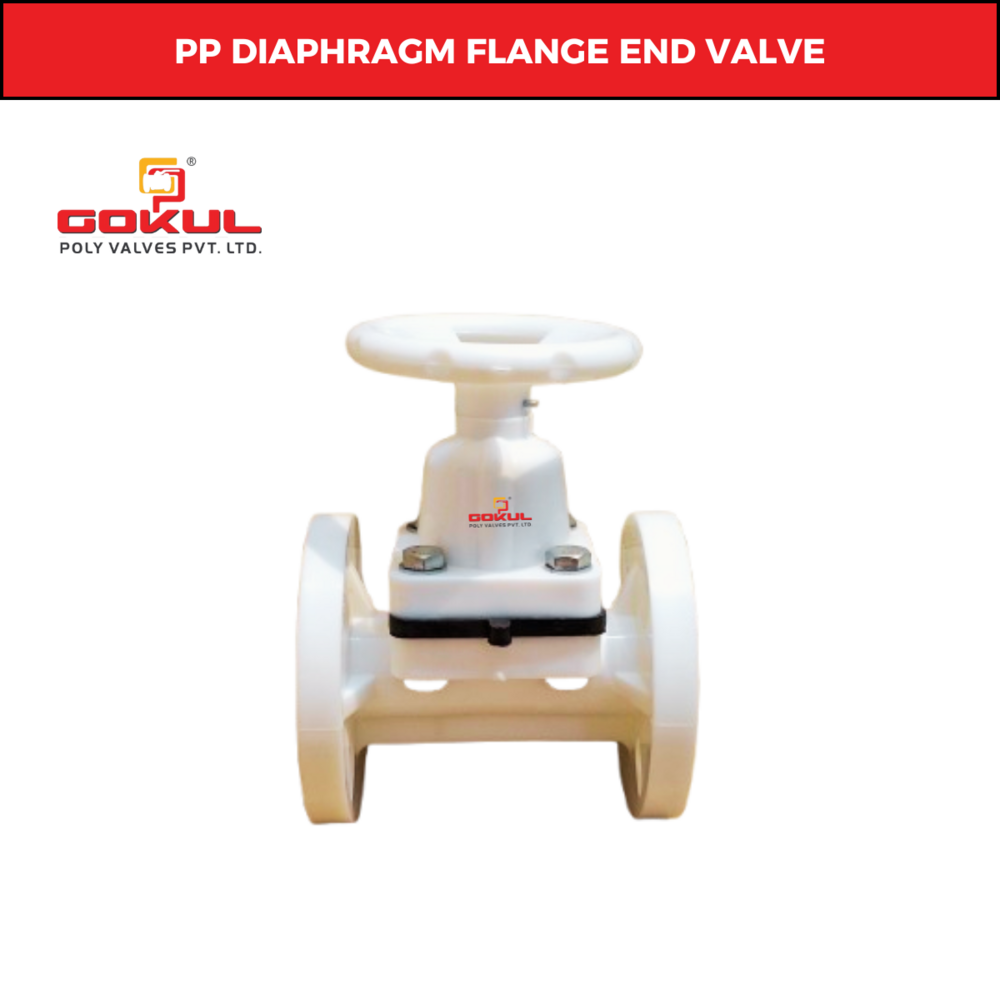

Gokul Flange End Polypropylene Diaphragm Valve 2
