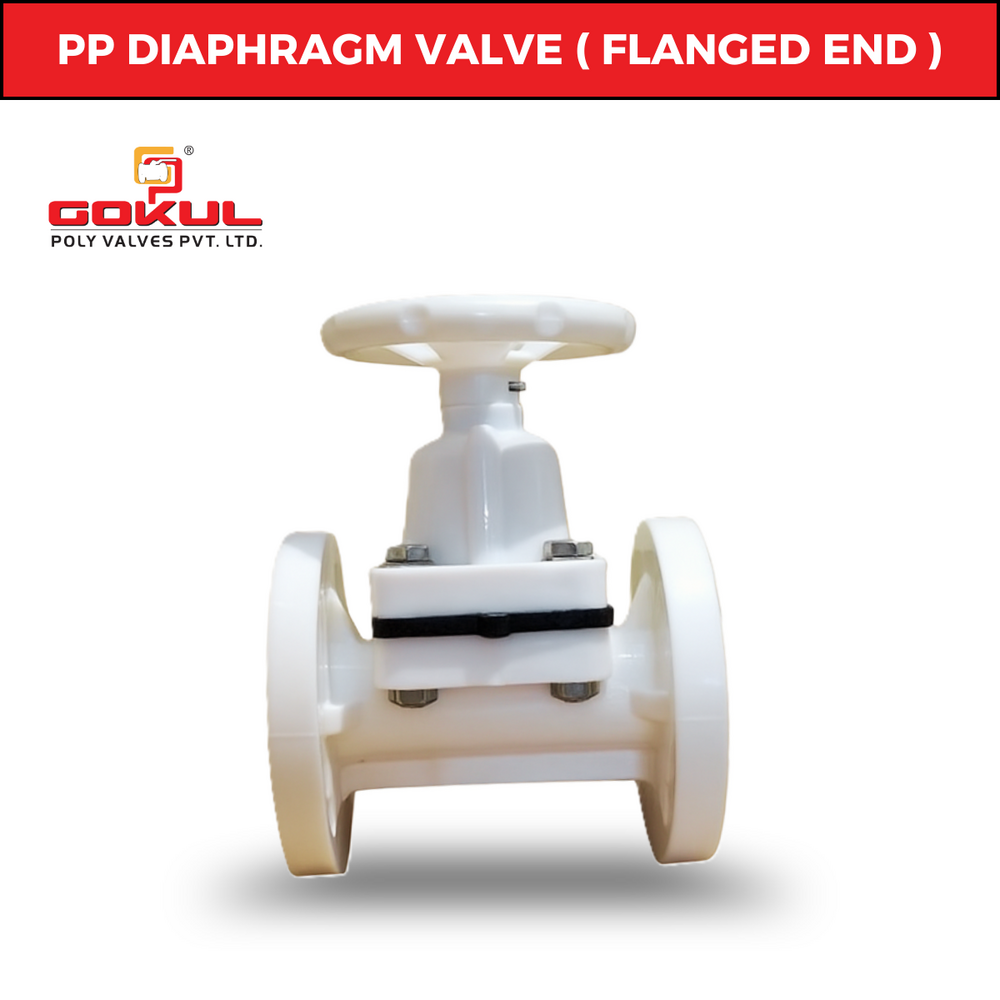

Polypropylene Diaphragm valve Flange End 4"

6660 INR/Number

Get a Price/Quote

Product Details:

Click to view more
Share Your Product:

Request To Call Back Send Inquiry

X

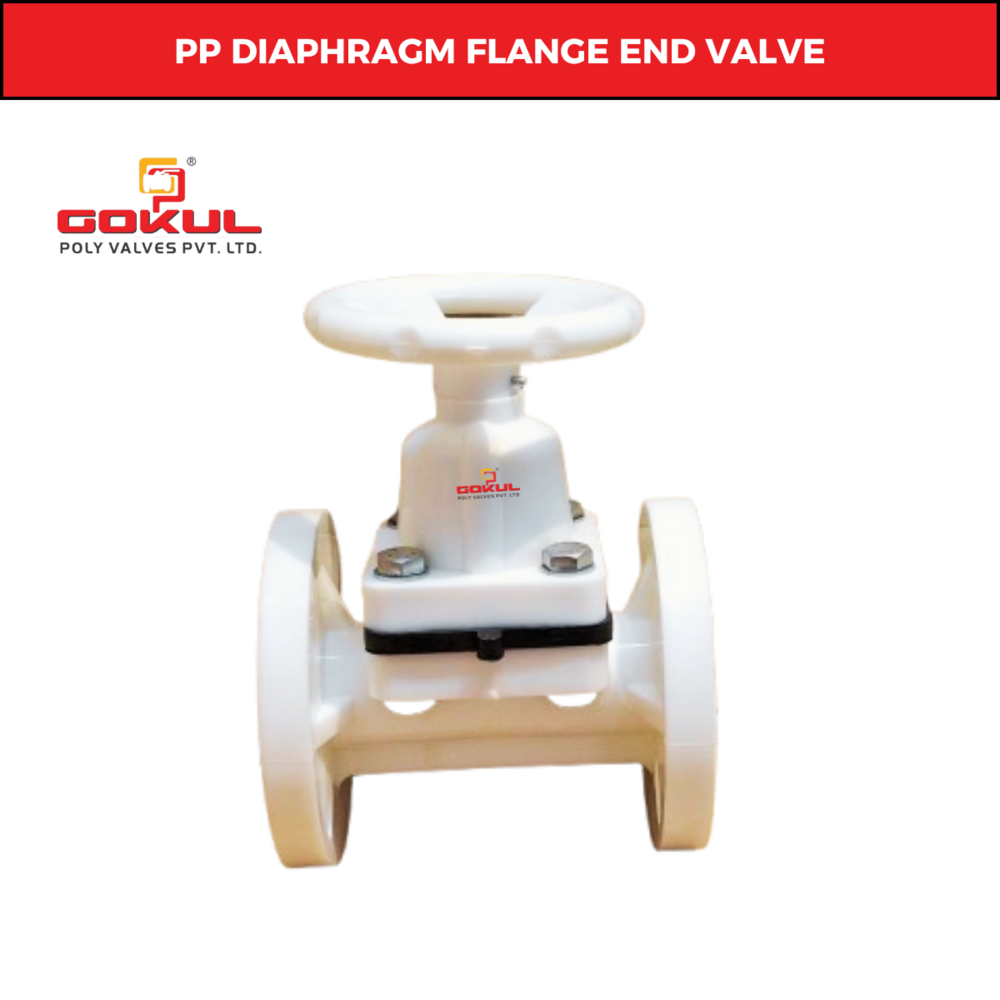

Polypropylene Diaphragm valve Flange End 4" Price And Quantity

Price 6660 INR/Number
Minimum Order Quantity 10 Number

Polypropylene Diaphragm valve Flange End 4" Trade Information

FOB Port Ahmedabad
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 10 Number Per Day
Delivery Time 1 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details BOX PACKING
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications ISO & Material Test Certificate

Product Description

Technical Specification Material Of Construction PP (Polypropylene) Construction weir type design,Soft seated, raising stem Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 15MM to 150MM Test pressure 6 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Body Polypropylene 1 2) Bonnet Polypropylene 1 3) Hand wheel Polypropylene 1 4) Diaphragm Neoprene Rubber 1 5) Compressor PP 1 6) Stem / Spindel M.S. /Brass 1 7) Nut M.S./ S.S. 1 8) Pin M.S./ S.S. 1 9) Bolt, Nut, Washer M.S./ S.S. REQ 10) Cap Polypropylene 1

FAQs of Polypropylene Diaphragm valve Flange End 4":

Q: What is the port size of the Polypropylene Diaphragm Valve Flange End 4"?

A: The port size of the Polypropylene Diaphragm Valve Flange End 4" is 4"-100MM.

Q: What type of media is this diaphragm valve suitable for?

A: This diaphragm valve is suitable for water media.

Q: What is the maximum temperature this valve can handle?

A: This valve can handle a maximum temperature of 80C.

Q: What material is used in the construction of this valve?

A: The valve is made from polypropylene (PP) plastic.

Q: What is the connection type of this valve?

A: The connection type of this valve is flanged.

Q: What is the pressure capacity of this valve?

A: This valve is designed for medium pressure applications.

Q: What are the primary applications of this valve?

A: The valve is primarily used for industrial and water applications.

Tell us about your requirement

product

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Email

Other Products in 'My products ' category

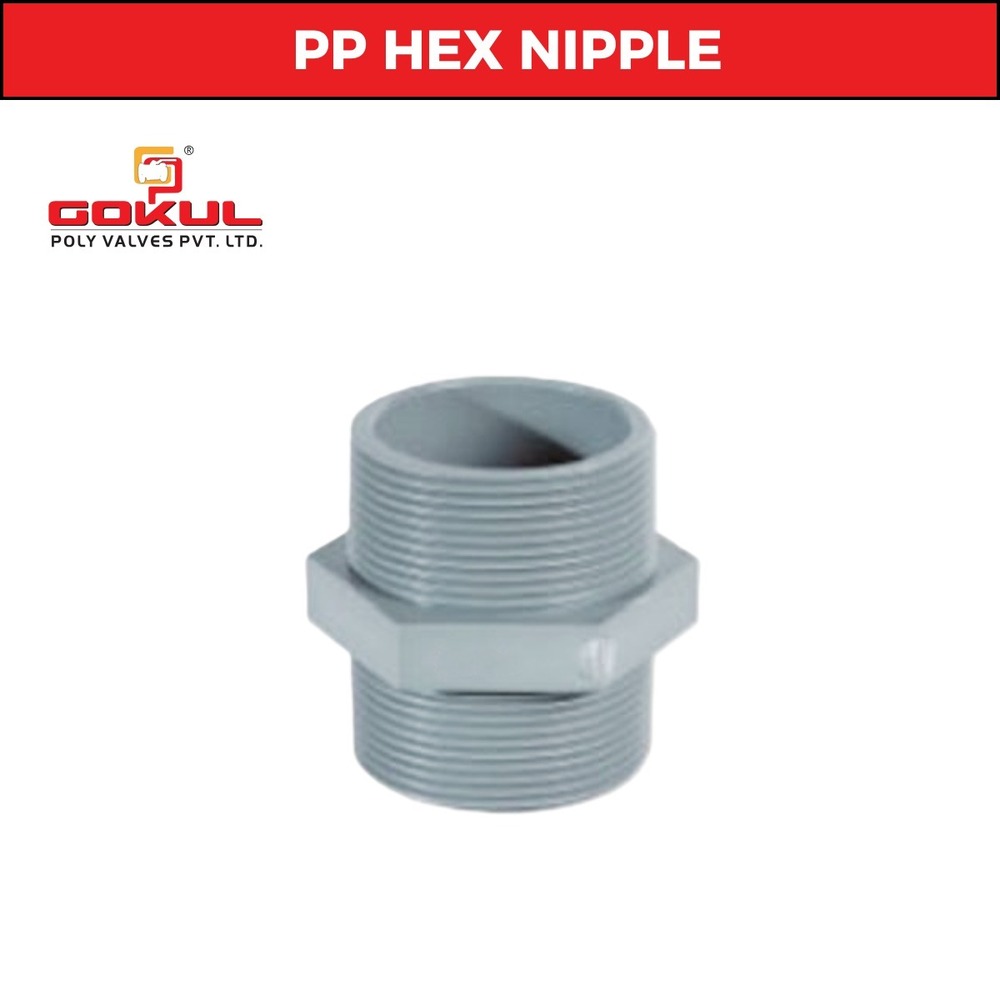

Gokul Pp Thread Hex Nipple

Gokul Pp Thread Hex Nipple Price : 43 INR/Piece Minimum Order Quantity : 100 Usage : Industrial & Water line Product Type : Bends Application : Industrial & Water Line Material : PP Color : Grey Dimension (L*W*H) : 1/2" to 4" Inch (in) Shape : Round End Type : ButWeld, Butfusion , Socket fusion , Electrofusion Connection Type : ButWeld, Butfusion , Socket fusion , Electrofusion Pipe Type : Butweld Corrosion Resistant : excellent corrosion resistance Thickness : 3MM TO 5MM Millimeter (mm) Diameter : 1/2" to 4" Inch (in) Port Size : 1/2" to 4" Capacity : 10 Kg Material Grade : PE100 Wall Thickness : 3 To 5 Millimeter (mm) Technics : Other Features : Stronger Pipe Joining , High Performance, Easy Installation, Leak Reduction, Environmental Friendliness, Versatility. Working Presssure : 10KG Surface Treatment : Other Standard : ANSI Surface Finish : Polypropylene PP Pressure Ratings : 10KG Fittings : Elbows, Tees, Reducers, Couplings, Flanges, Valves Thread Type : Bsp Threaded Nominal Pressure : 10 KG kilometer/hr (KPH) Connection : Male

Send Inquiry

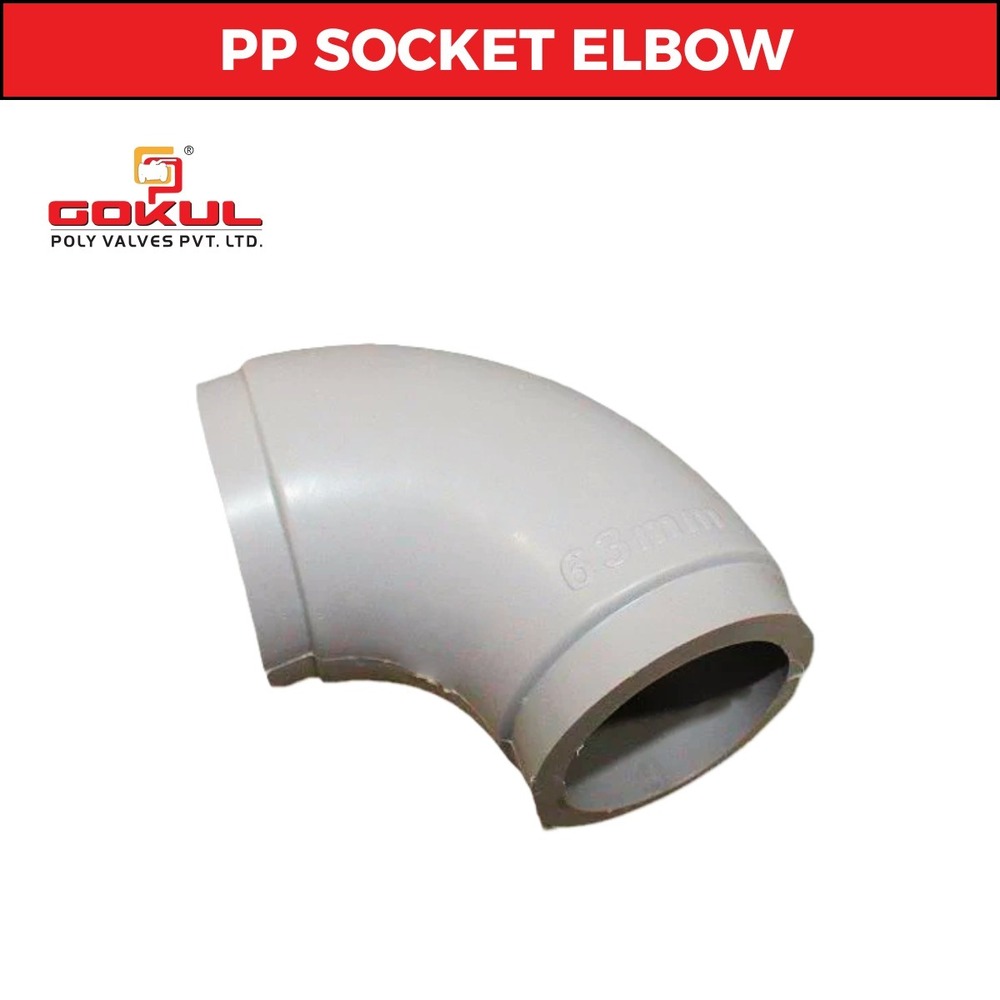

Gokul Pp Moulded Elbow Socket Type Threaded

Gokul Pp Moulded Elbow Socket Type Threaded Price : 55 INR/Piece Minimum Order Quantity : 100 Usage : Industrial & Water line Product Type : Elbow Application : Industrial & Water Line Material : PP Color : Grey Dimension (L*W*H) : 1/2" To 6" Inch (in) Shape : Round End Type : ButWeld, Butfusion , Socket fusion , Electrofusion Connection Type : ButWeld, Butfusion , Socket fusion , Electrofusion Pipe Type : Butweld Corrosion Resistant : excellent corrosion resistance Thickness : 3MM TO 5MM Millimeter (mm) Diameter : 1/2" To 6" Inch (in) Port Size : 1/2" To 6" Capacity : 10 Kg Material Grade : PE100 Wall Thickness : 3 To 5 Millimeter (mm) Technics : Other Features : Stronger Pipe Joining , High Performance, Easy Installation, Leak Reduction, Environmental Friendliness, Versatility. Working Presssure : 10KG Surface Treatment : Other Standard : ANSI Surface Finish : Polypropylene PP Pressure Ratings : 10KG Thread Type : Bsp Threaded Nominal Pressure : 10 KG miles/hr (MPH) Connection : Female

Send Inquiry

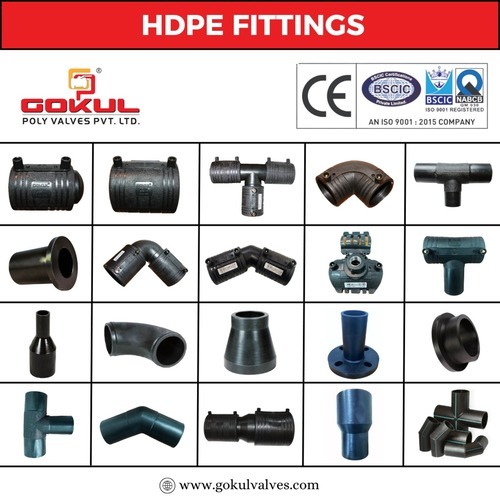

Gokul HDPE Butt Weld Pipe Fittings

Gokul HDPE Butt Weld Pipe Fittings Price : 100 INR/Number Minimum Order Quantity : 100 Usage : Industrial & Water line Product Type : Bends Application : Industrial & Water Line Material : HDPE Color : Black Dimension (L*W*H) : 1/2" to 12" Millimeter (mm) Shape : Round End Type : ButWeld, Butfusion , Socket fusion , Electrofusion Connection Type : ButWeld, Butfusion , Socket fusion , Electrofusion Pipe Type : Butweld Corrosion Resistant : excellent corrosion resistance Thickness : 3MM TO 5MM Millimeter (mm) Diameter : 1/2" to 12" Millimeter (mm) Port Size : 1/2" to 12" Capacity : 10 Kg Material Grade : PE100 Wall Thickness : 3 To 5 Millimeter (mm) Technics : Other Features : Stronger Pipe Joining , High Performance, Easy Installation, Leak Reduction, Environmental Friendliness, Versatility. Working Presssure : 10 / 6 KG Surface Treatment : Other Standard : ANSI Surface Finish : High Density Polypropylene HDPE Pressure Ratings : 10 / 6 KG Fittings : Couplings, Flanges, Caps Nipples, Valves, Elbows, Tees, Reducers Thread Type : Male and Female Thread

Send Inquiry

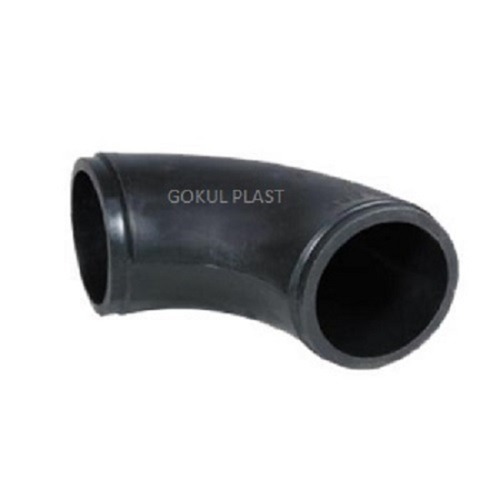

GOKUL HDPE ELBOW
