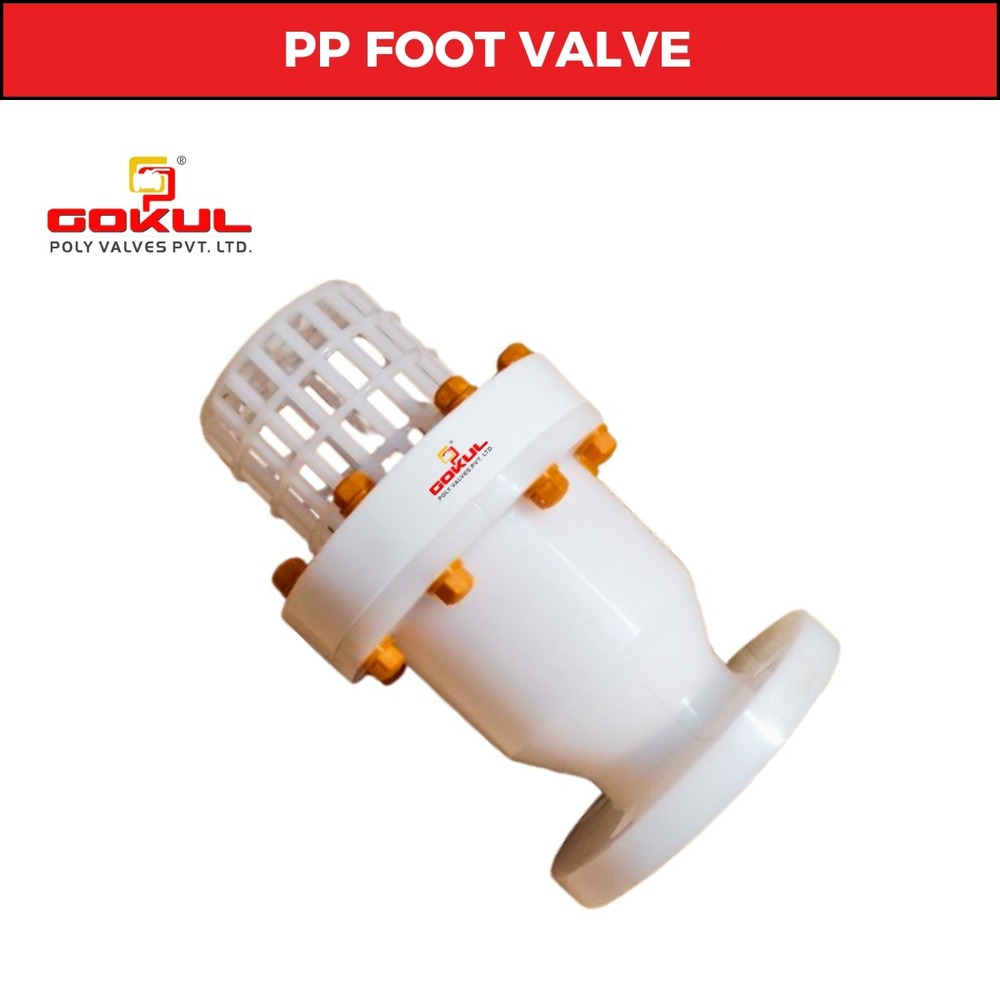

Polypropylene Foot valve Flanged

Price 536 INR/ Number

Get a Price/Quote

Polypropylene Foot valve Flanged Specification

  • Connection
  • Flanged
  • Structure
  • Ball
  • Pressure
  • Medium Pressure
  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Channels
  • Intentional & Domestic Market
  • Usage
  • Industrial & Water Application
  • Material
  • Plastic
  • Media
  • Water
  • Size
  • 1" To 12"
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Foot Valve Flange End
  • Port Size
  • 1" To 12"
  • Flange
  • 150 class
  • Color
  • White
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Polypropylene Foot valve Flanged Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About Polypropylene Foot valve Flanged

Technical Specification Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 25MM to 315MM Test pressure 10 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION QTY MATERIAL 1) Top Body 1 Polypropylene 2) Bottam Body 1 Polypropylene 3) Screen 1 Polypropylene 4) Ball 1 Polypropylene 5) Ball Ring 1 Polypropylene 6) Seat Ring 1 Neoprene Rubber 7) Stud, Nut & Washer Req. SS

FAQs of Polypropylene Foot valve Flanged:


Q: What is the port size range available for the Polypropylene Foot Valve Flanged?

A: The Polypropylene Foot Valve Flanged is available in port sizes ranging from 1" to 12".

Q: What applications can this valve be used for?

A: This valve is suitable for industrial and water applications.

Q: What material is used to manufacture the Polypropylene Foot Valve Flanged?

A: The valve is made from plastic with a polypropylene (PP) finish.

Q: What is the temperature tolerance of the media for this valve?

A: The valve is capable of handling media temperatures up to 80 degrees Celsius (oC).

Q: What type of connection does the Polypropylene Foot Valve Flanged have?

A: This valve features a flanged connection with a 150-class flange.

Polypropylene Foot valve Flanged
Polypropylene Foot valve Flanged
Polypropylene Foot valve Flanged
Polypropylene Foot valve Flanged
Polypropylene Foot valve Flanged
Polypropylene Foot valve Flanged
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Ball Products Category

Gokul PP Diaphragm Threaded Valve

Gokul PP Diaphragm Threaded Valve

Price 203 INR / Number

Minimum Order Quantity : 10

Color : White

Structure : Ball

Pressure : Medium Pressure

Temperature of Media : 80 Celsius (oC)

Get a Price/Quote
HDPE Flanged End Ball Valve

HDPE Flanged End Ball Valve

Price 1760 INR / Number

Minimum Order Quantity : 10

Color : Black

Structure : Ball

Pressure : Medium Pressure

Temperature of Media : 80 Celsius (oC)

Get a Price/Quote
pp ball valve 12

pp ball valve 12"

Price 41150 INR / Number

Minimum Order Quantity : 10

Color : White

Structure : Ball

Pressure : Medium Pressure

Temperature of Media : 80 Celsius (oC)

Get a Price/Quote

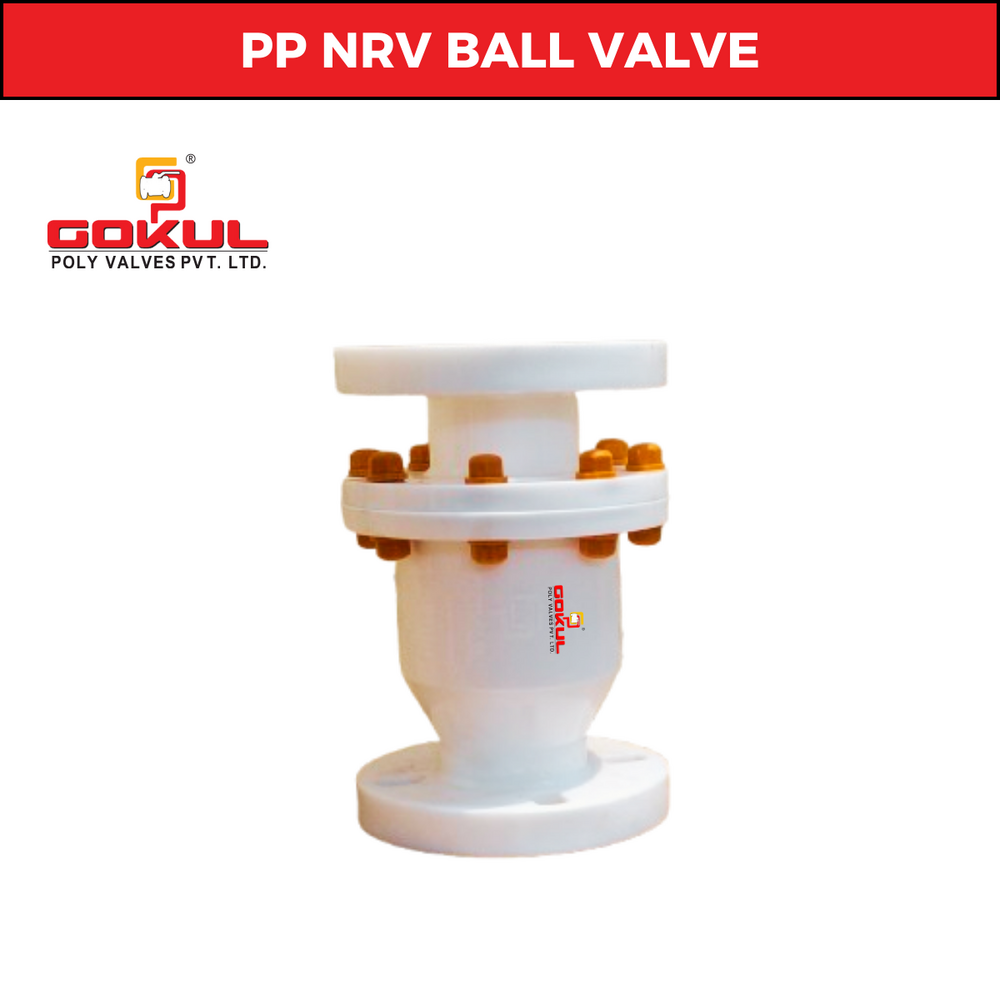

PP Non Return Valve Flanges
