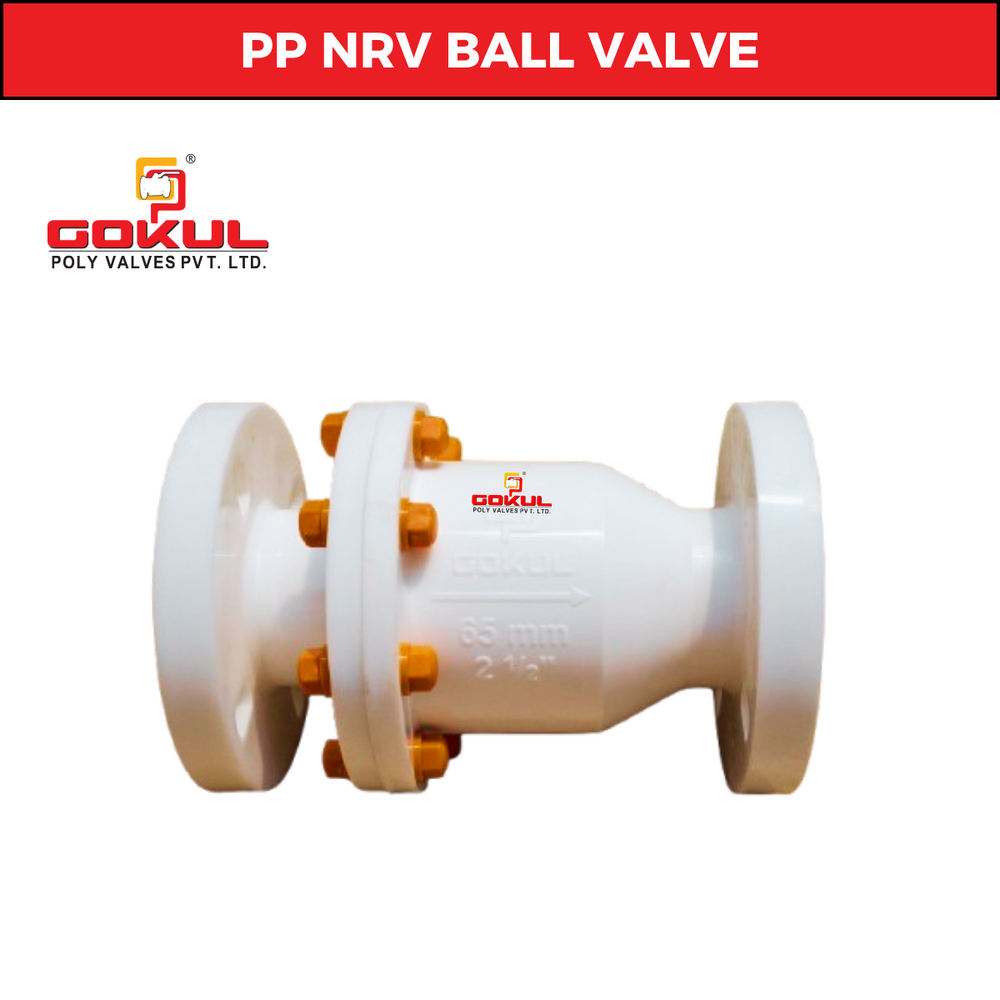

Polypropylene Nrv Flanged End

Price 710 INR/ Number

Get a Price/Quote

Polypropylene Nrv Flanged End Specification

Caliber
Gokul Poly Valves Pvt Ltd

Pressure
Medium Pressure

Structure
Ball

Connection
Flanged

Channels
Intentional & Domestic Market

Usage
Industrial & Water Application

Material
Plastic

Media
Water

Size
1" To 12"

Temperature of Media
80 Celsius (oC)

Product Type
PP Non Return Valve Flanged

Port Size
1" To 12"

Flange
150 class

Color
White

Finish
Polypropylene (PP)

Application
industrial and water application

Polypropylene Nrv Flanged End Trade Information

Minimum Order Quantity
20 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing q

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About Polypropylene Nrv Flanged End

Technical Specification Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 25MM to 315MM Test pressure 10 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Top Body Polypropylene 1 2) Bottom body Polypropylene 1 3) Ball Polypropylene 1 4) Ball Ring Polypropylene 1 5) Seat Ring Neoprene Rubber 1 6) Stud, Nut & Washer SS Req.

FAQs of Polypropylene Nrv Flanged End:

Q: What material is used to manufacture the Polypropylene NRV Flanged End?

A: The Polypropylene NRV Flanged End is made of plastic with a polypropylene (PP) finish.

Q: What is the size range available for the Polypropylene NRV Flanged End?

A: The size range for the Polypropylene NRV Flanged End is from 1 inch to 12 inches.

Q: What is the maximum temperature media that the Polypropylene NRV Flanged End can handle?

A: The Polypropylene NRV Flanged End can handle media temperatures up to 80 degrees Celsius.

Q: What types of industrial applications is the Polypropylene NRV Flanged End suitable for?

A: The Polypropylene NRV Flanged End is suitable for industrial and water applications.

Q: What type of connection does the Polypropylene NRV Flanged End use?

A: The Polypropylene NRV Flanged End uses a flanged connection with a 150 class flange design.

Q: Is the Polypropylene NRV Flanged End suitable for domestic markets?

A: Yes, the Polypropylene NRV Flanged End is suitable for both intentional and domestic markets.

Q: What is the pressure rating of the Polypropylene NRV Flanged End?

A: The Polypropylene NRV Flanged End is designed to handle medium pressure levels.
