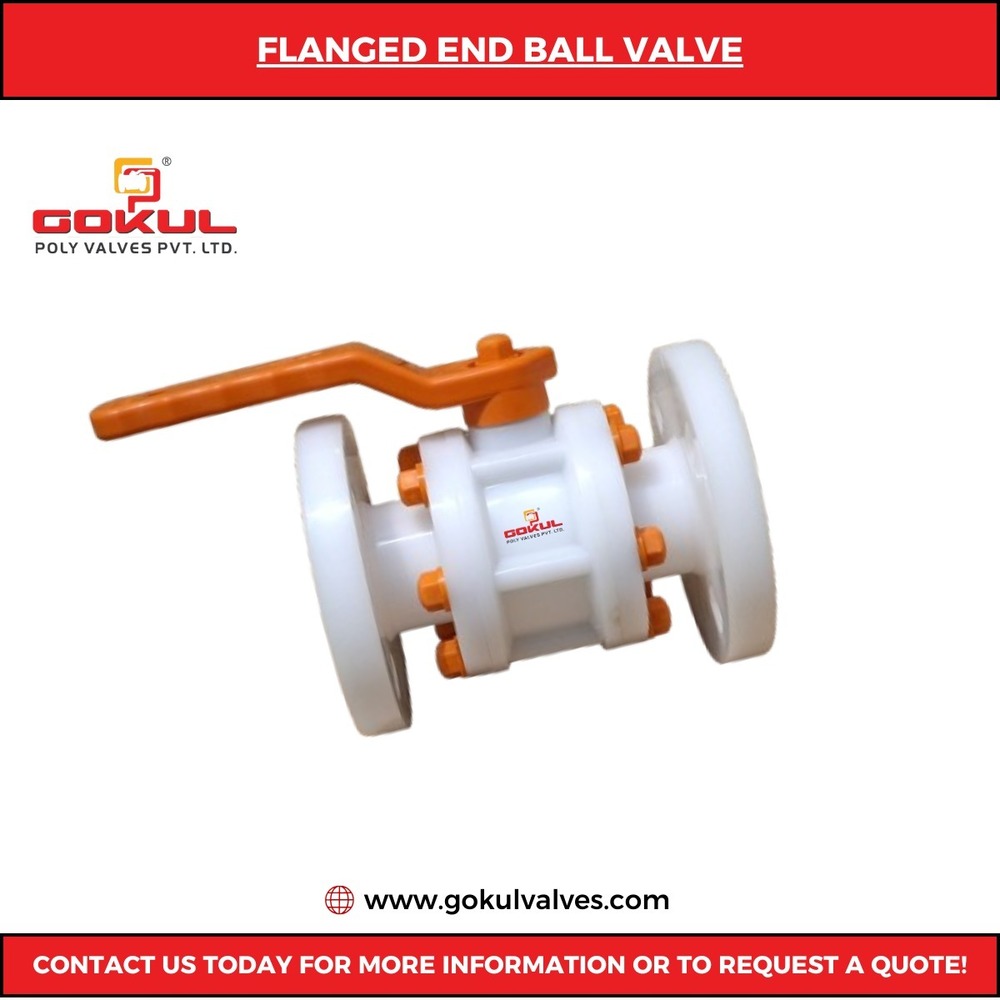

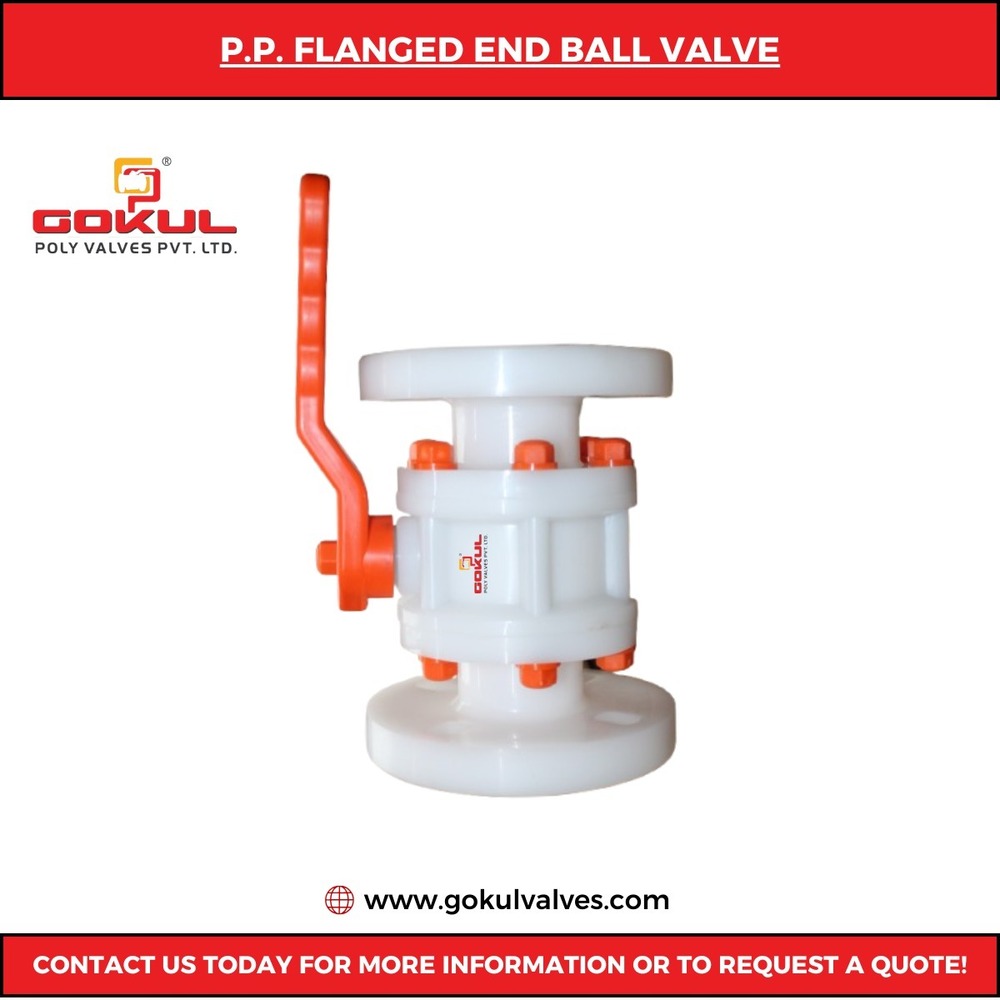

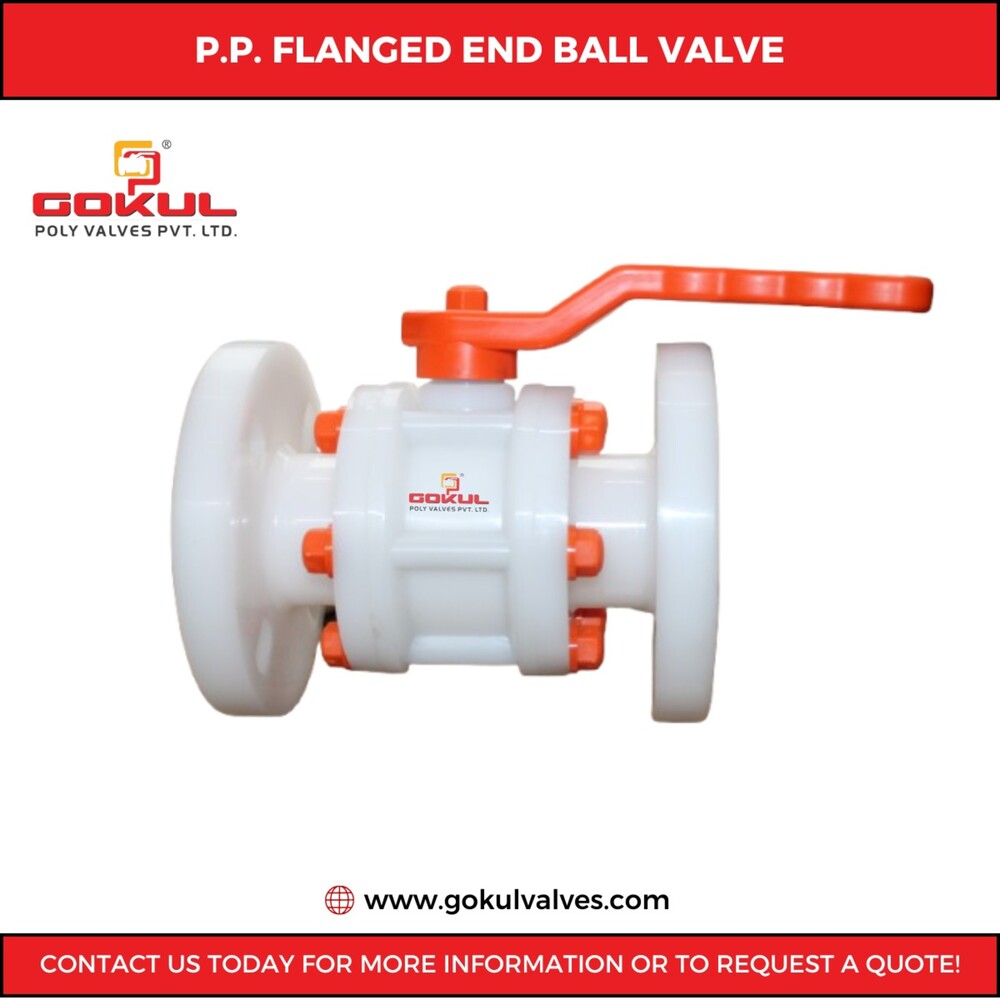

Pp Ball Valve Flange End 6"

About Pp Ball Valve Flange End 6"

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore, Tef lon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12ïï-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEF LON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEF LON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Reliable Performance in Challenging Conditions

This PP Ball Valve is engineered to withstand demanding environments and sustain effective operation at media temperatures up to 80C. Its medium-pressure design makes it suitable for a variety of industrial and water management systems. The polypropylene construction offers exceptional resistance to harsh chemicals, guaranteeing longevity and smooth functionality in both domestic and international applications.


Optimized for Industrial and Water Applications

Specifically developed for industrial as well as water distribution systems, the valves 6-inch flanged connection adheres to the 150 class standardensuring compatibility and secure installation. The ball structure inside the valve facilitates accurate regulation of water flow, promoting safe and efficient system performance. Its versatility meets the rigorous demands of manufacturing, supply, and service sectors.
