Screw End Polypropylene Ball Valve

Price 1540 INR/ Number

Get a Price/Quote

Screw End Polypropylene Ball Valve Specification

  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Connection
  • Screw End (BSP Threaded)
  • Pressure
  • Medium Pressure
  • Channels
  • Intentional & Domestic Market
  • Structure
  • Ball
  • Usage
  • Industrial & Water Application
  • Material
  • Plastic
  • Size
  • 1/2" To 4"
  • Media
  • Water
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Screw End Ball Valve
  • Port Size
  • 1/2" To 4"
  • Color
  • White
  • Flange
  • BSP Threaded
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Screw End Polypropylene Ball Valve Trade Information

  • Minimum Order Quantity
  • 10 Number
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material Test Certificate


About Screw End Polypropylene Ball Valve

Technical Specification

Material Of Construction PP (Polypropylene) Construction 3 piece design, 1 piece stem (spindle), full bore, Tef lon seated
Design 3 piece design Test pressure 08 kg./cm2
Max working temp 70 c (consistently) Size Range "- 15MM TO 100MM- 4ï
Connection End Screw end (BSP thread) Standard As per manufacturer

Material Specification

NO. DESCRIPTION QTY. MATERIAL
1) Flanged end 2 Polypropylene
2) Body 1 Polypropylene
3) Ball 1 Polypropylene
4) Stem/Spindal 1 Polypropylene With M.S. /S.S
5) Seat Ring 2 PTFE (TEF LON)
6) Body"O"Ring 2 Neoprene
7) Stem Seal Ring 1 PTFE (TEF LON)
8) Stem "O" Ring 1 Neoprene
9) Stud, Nut & Washer REQ M.S. Zinc Plated/S.S
10) Nut Cap REQ Polypropylene.
11) Handle 1 M.S. PP Coated.
12) Handle Hex. Pin 1 M.S./ S.S.
13) Handle Cap 1 Polypropylene.


Reliable Material and Build

Manufactured from durable polypropylene (PP), this ball valve resists corrosion and chemical attack, making it highly suited for industrial and water applications. The robust build ensures longevity even under medium pressure and a wide range of operating environments.


Versatile BSP Threaded Design

Equipped with screw ends that conform to BSP threading standards, this product simplifies installation, maintenance, and ensures compatibility with a variety of existing pipeline systems. Its versatility makes it a popular choice for both intentional and domestic markets.

FAQs of Screw End Polypropylene Ball Valve:


Q: How do you install the screw end polypropylene ball valve in a water pipeline?

A: Installation is straightforwardsimply connect the BSP threaded ends of the valve to the corresponding threaded pipes. Ensure the threads are clean and apply sealing tape to prevent leaks. Tighten with suitable tools without over-tightening to avoid damaging the threads.

Q: What are the main benefits of using polypropylene (PP) for this type of ball valve?

A: Polypropylene provides excellent resistance to corrosion and chemicals, making the valve suitable for a wide variety of industrial and water applications. Its durability ensures reliable performance even at temperatures up to 80C and in medium pressure systems.

Q: When should I consider using this valve instead of a metal ball valve?

A: Opt for this polypropylene ball valve in situations where the media may be corrosive to metals, or when a lightweight solution is preferable. It is ideal for water distribution, irrigation, treatment plants, and medium pressure industrial processes.

Q: Where can the screw end polypropylene ball valve be applied effectively?

A: It is highly effective in industrial facilities, water treatment plants, irrigation systems, and plumbing lines requiring secure flow control. Its compatibility with BSP threaded pipes ensures flexible installation in both new and existing pipelines.

Q: What is the process for maintaining this ball valve?

A: Routine maintenance involves periodically checking for any leaks or build-up around the screw end connections. If needed, disassemble using the threaded ends for cleaning, and reassemble, ensuring threads are properly sealed and tightened.

Q: How is the valves performance affected by temperature and pressure?

A: The ball valve is designed for medium pressure and functions optimally with media temperatures up to 80C. Staying within these limits will ensure consistent, long-lasting operation and prevent premature wear.

Screw End Polypropylene Ball Valve
Screw End Polypropylene Ball Valve
Screw End Polypropylene Ball Valve
Screw End Polypropylene Ball Valve
Screw End Polypropylene Ball Valve
Screw End Polypropylene Ball Valve
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Ball Products Category

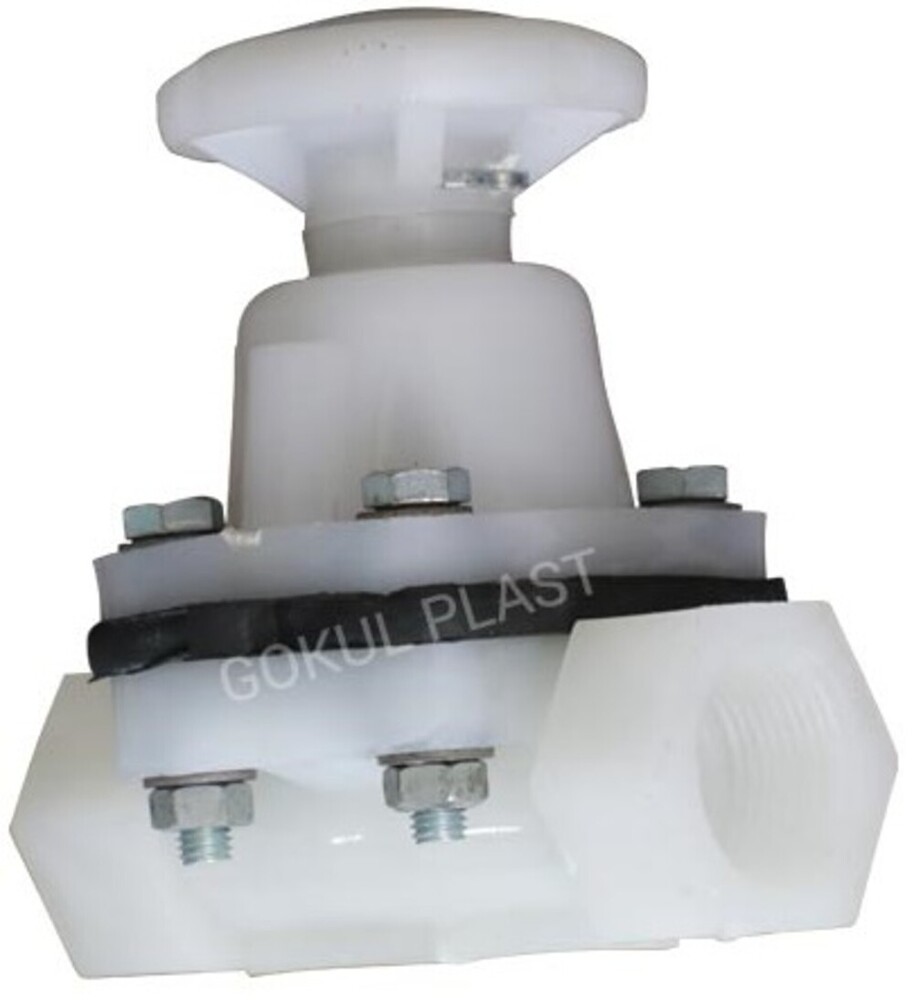

polypropylene Diaphragm Flange End Valve 1/2

polypropylene Diaphragm Flange End Valve 1/2"

Price 390 INR / Number

Minimum Order Quantity : 10

Connection : Flanged

Product Type : PP Diaphragm Valve Flange End

Usage : Industrial & Water Application

Caliber : Gokul Poly Valves Pvt Ltd

Get a Price/Quote
Polypropylene Nrv

Polypropylene Nrv

Price 22000 INR / Number

Minimum Order Quantity : 10

Connection : Flanged

Product Type : PP Non Return Valve Flanged

Usage : Industrial & Water Application

Caliber : Gokul Poly Valves Pvt Ltd

Get a Price/Quote
Polypropylene Foot Valve Threaded End

Polypropylene Foot Valve Threaded End

Price 630 INR / Number

Minimum Order Quantity : 10

Connection : Screw End (BSP Threaded)

Product Type : PP Foot Valve Screw End

Usage : Industrial & Water Application

Caliber : Gokul Poly Valves Pvt Ltd

Get a Price/Quote

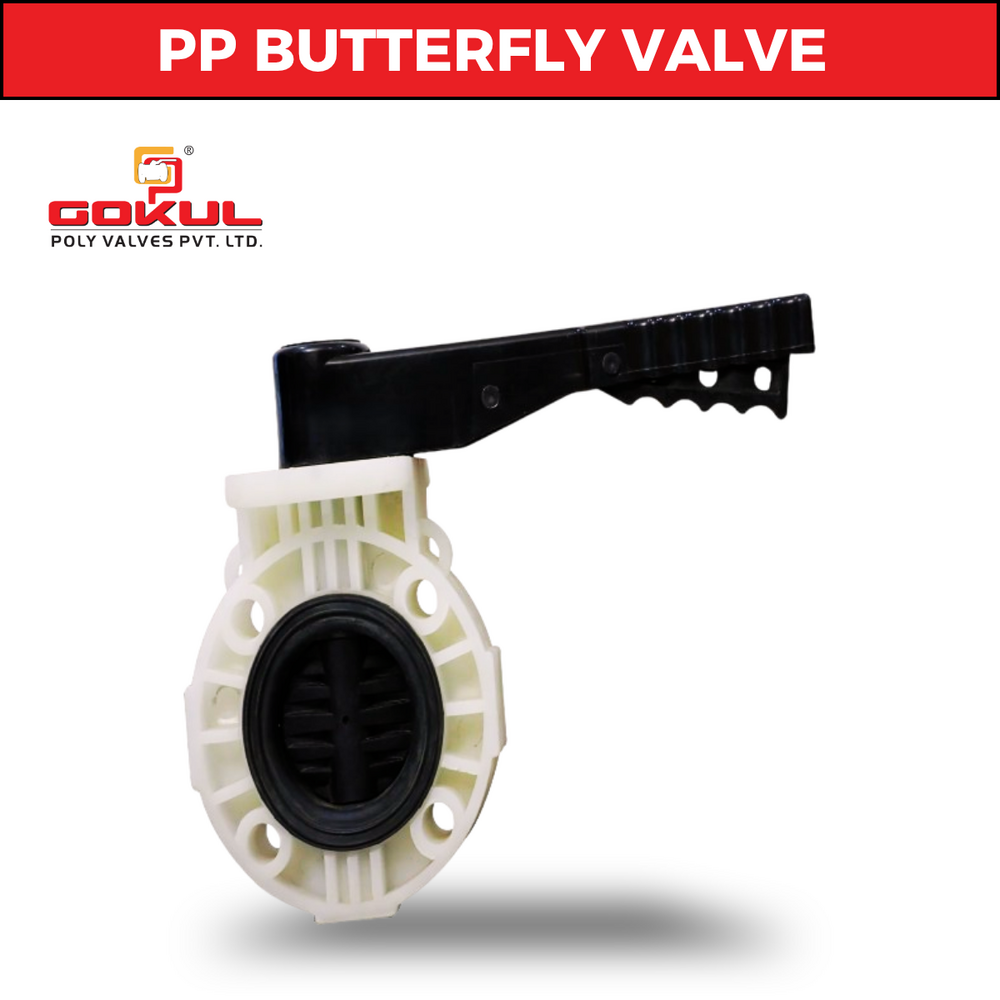

PP Butterfly Valve Gear Box Operated
