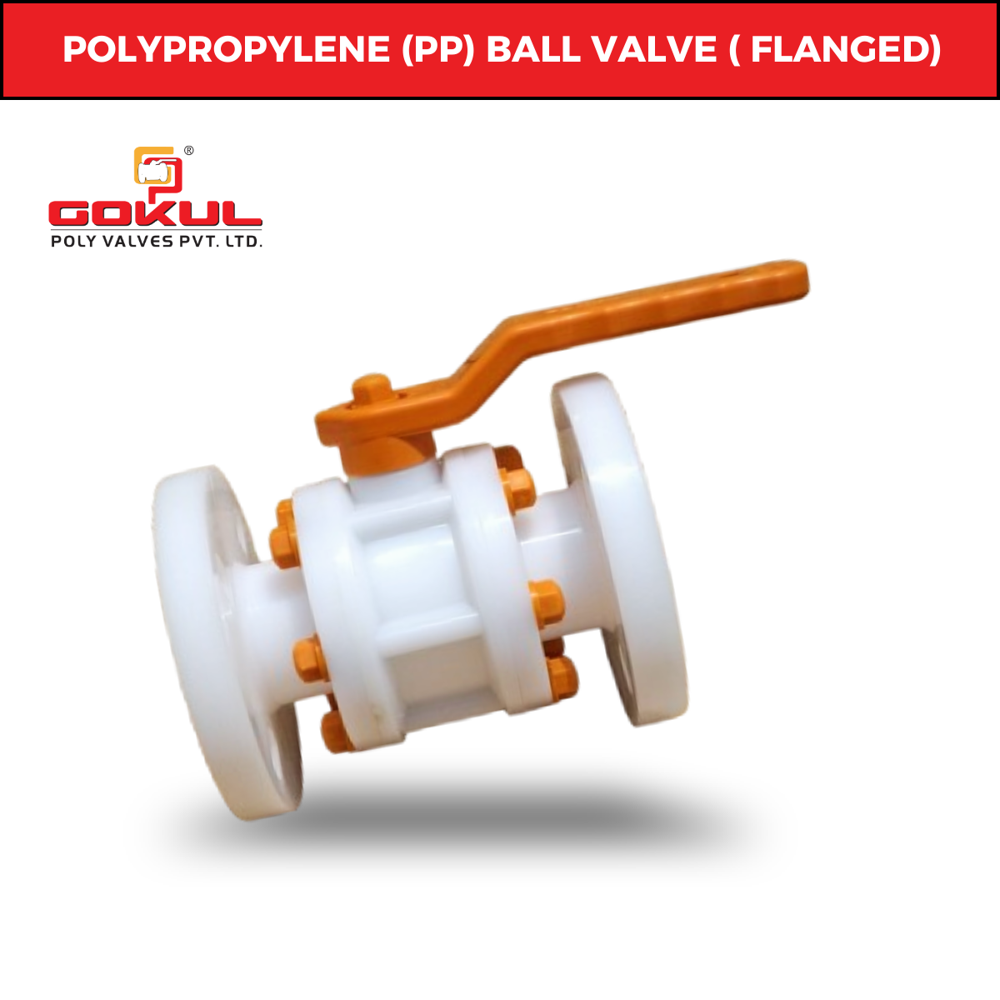

pp ball valve 6"

Price 8360 INR/ Number

Get a Price/Quote

pp ball valve 6" Specification

Caliber
Gokul Poly Valves Pvt Ltd

Pressure
Medium Pressure

Channels
Intentional & Domestic Market

Structure
Ball

Connection
Flanged

Material
Plastic

Usage
Industrial & Water Application

Media
Water

Size
6"-150MM

Temperature of Media
80 Celsius (oC)

Product Type
PP Ball Valve

Port Size
6"150MM

Flange
150 class

Color
White

Finish
Polypropylene (PP)

Application
industrial and water application

pp ball valve 6" Trade Information

Minimum Order Quantity
5 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About pp ball valve 6"

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore, Tef lon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEF LON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEF LON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

pp ball valve 6

pp ball valve 6

pp ball valve 6

pp ball valve 6

pp ball valve 6

pp ball valve 6

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Email

More Products in Ball Products Category

Gokul PP 3 Piece Flange End Ball Valve

Gokul PP 3 Piece Flange End Ball Valve

Price 38720 INR / Number

Minimum Order Quantity : 10

Size : 1/2" To 12"

Port Size : 1/2" To 12"

Connection : Flanged

Application : industrial and water application

Get a Price/Quote

PP Foot Valve Threaded End Foot Valve

PP Foot Valve Threaded End Foot Valve

Price 300 INR / Number

Minimum Order Quantity : 10

Size : 1" To 4"

Port Size : 1" To 4"

Connection : Screw End (BSP Threaded)

Application : industrial and water application

Get a Price/Quote

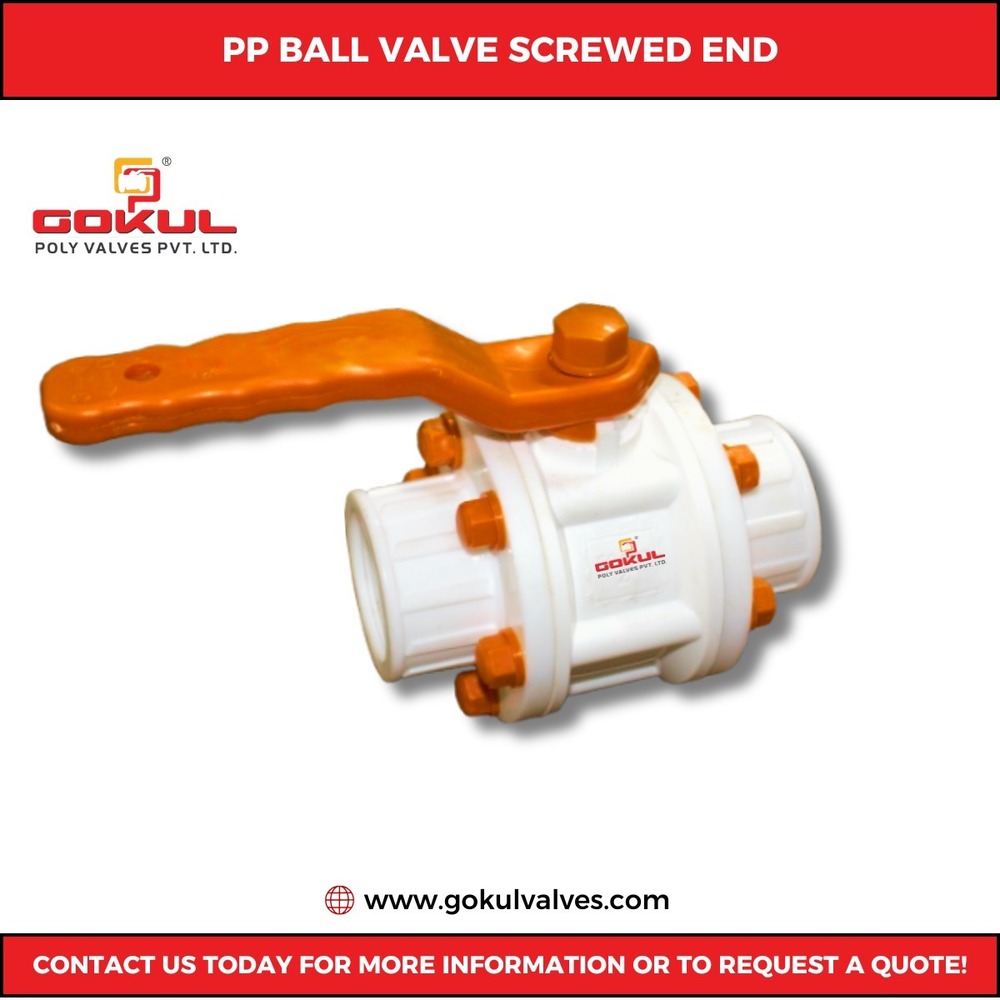

Polypropylene Ball Valve Screwed End
