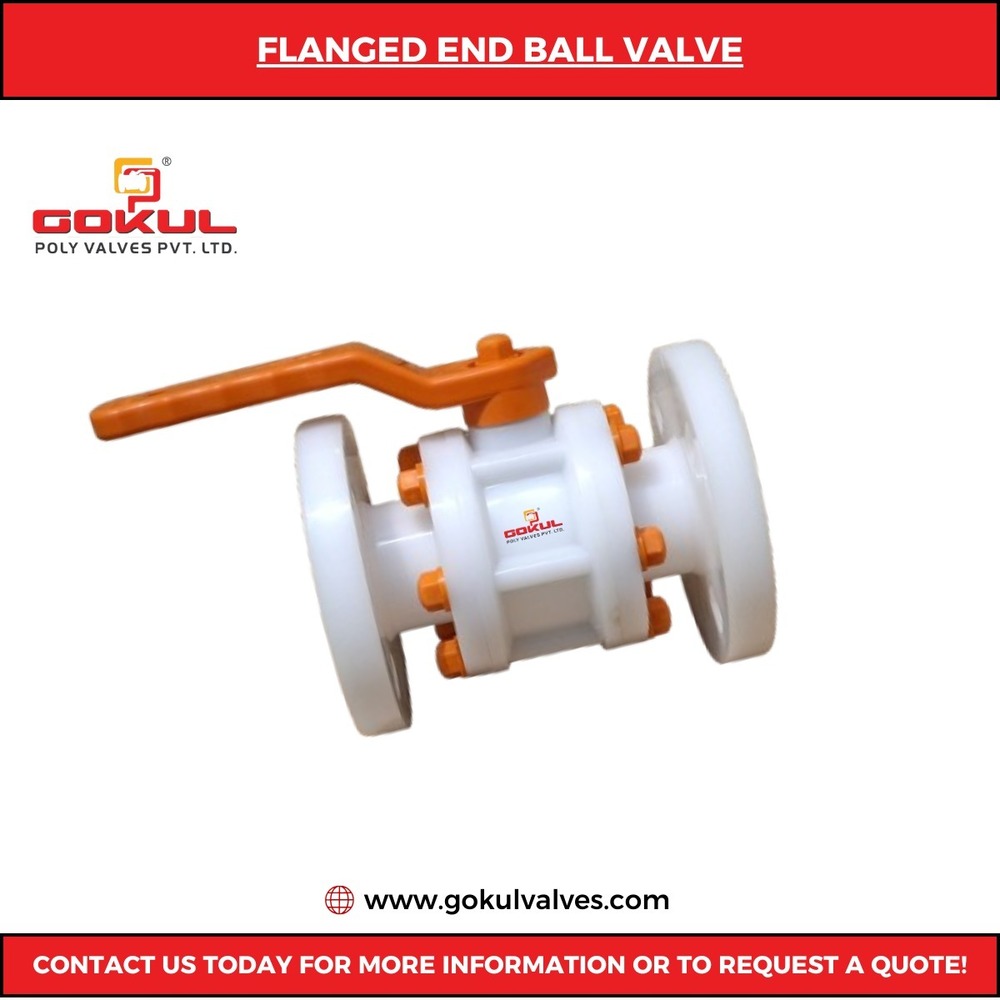

3pc. Flanged End PP Ball Valve

Price 41150 INR/ Number

Get a Price/Quote

3pc. Flanged End PP Ball Valve Specification

Structure
Ball

Pressure
Medium Pressure

Channels
Intentional & Domestic Market

Caliber
Gokul Poly Valves Pvt Ltd

Connection
Flanged

Usage
Industrial & Water Application

Material
Plastic

Media
Water

Size
1/2" To 12"

Temperature of Media
80 Celsius (oC)

Product Type
PP Ball Valve Flange End

Port Size
1/2" To 12"

Flange
150 class

Color
White

Finish
Polypropylene (PP)

Application
industrial and water application

3pc. Flanged End PP Ball Valve Trade Information

Minimum Order Quantity
10 Number

FOB Port
Ahmedabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box Packing

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO & Material Test Certificate

About 3pc. Flanged End PP Ball Valve

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore, Tef lon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12ïï-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEF LON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEF LON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Versatile Flanged End Ball Valve

This 3pc. PP Ball Valve is designed to suit a wide range of industrial and water management applications. With flanged ends and a robust ball structure, it accommodates medium pressure requirements, ensuring safety and efficiency for both intentional and domestic markets.

Industry Standard Polypropylene Construction

Crafted using advanced polypropylene material, the valve offers excellent chemical resistance, durability, and low maintenance needs. The white finish highlights its modern aesthetics, while its lightweight plastic structure makes installation and handling effortless.

FAQs of 3pc. Flanged End PP Ball Valve:

Q: How does the 3pc. Flanged End PP Ball Valve operate in industrial and water applications?

A: The valve uses a flanged ball mechanism that allows for precise control over water flow in both industrial plants and water systems. Its polypropylene construction ensures resistance to corrosion and chemical attack, supporting continuous, efficient operation at up to 80C.

Q: What sizes are available for this PP ball valve, and what is the port size range?

A: The valve is available in a comprehensive range of sizes, from 1/2 inch to 12 inches. This makes it suitable for a broad spectrum of piping systems in both small-scale and large-scale industrial or water utility projects.

Q: When should I choose a polypropylene (PP) flanged valve over alternative materials?

A: Select a PP flanged valve when you require a cost-effective, corrosion-resistant solution for handling water or mild chemicals at medium pressure and up to 80C, especially where metal valves might be prone to corrosion.

Q: Where is this ball valve most commonly installed?

A: This valve is typically installed in water treatment facilities, industrial processing plants, and systems requiring reliable water flow management. Its suitability for both the domestic and intentional export market allows for diverse implementation.

Q: What is the benefit of the flanged end design in this valve?

A: A flanged end makes installation, maintenance, and replacement swift and safe. It provides a secure connection between pipes, ensuring leak-proof integration in demanding environments.

Q: How is the valve maintained or serviced?

A: The 3pc. construction allows for straightforward disassembly, inspection, and cleaning. Maintenance is simple since the polypropylene material resists scaling and buildup, minimizing downtime.
