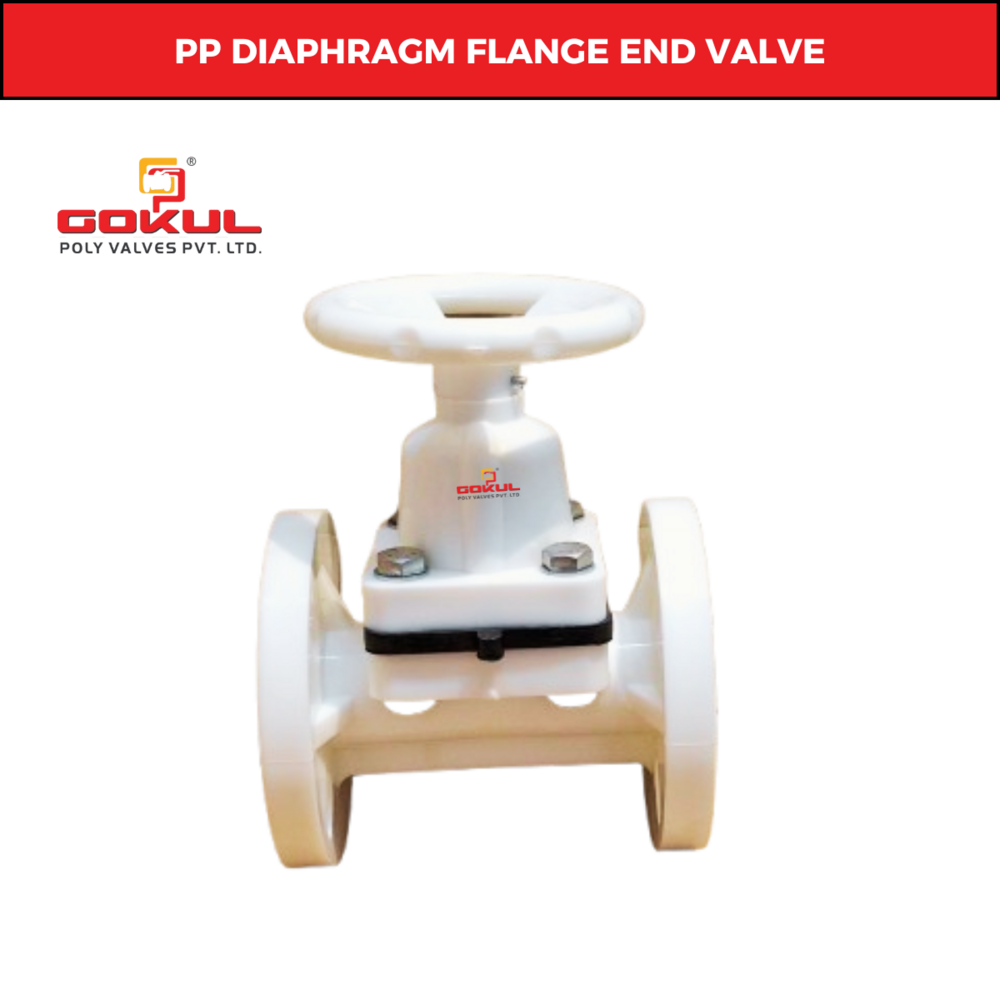

Gokul Flange End Polypropylene Diaphragm Valve 2"

870 INR/Number
Get a Price/Quote

Product Details:

  • Connection Flanged
  • Product Type PP Diaphragm Valve Flange End
  • Channels Intentional & Domestic Market
  • Color White
  • Size 2"-50MM
  • Caliber Gokul Poly Valves Pvt Ltd
  • Usage Industrial & Water Application
  • Click to view more
Request To Call Back Send Inquiry
X

Gokul Flange End Polypropylene Diaphragm Valve 2" Price And Quantity

  • 10 Number
  • 870.00 - 870.00 INR/Number
  • 870 INR/Number

Gokul Flange End Polypropylene Diaphragm Valve 2" Product Specifications

  • industrial and water application
  • Water
  • 80 Celsius (oC)
  • 2"-50MM
  • Gokul Poly Valves Pvt Ltd
  • Industrial & Water Application
  • Ball
  • Medium Pressure
  • 150 class
  • Flanged
  • 2"-50mm
  • PP Diaphragm Valve Flange End
  • Polypropylene (PP)
  • White
  • Plastic
  • Intentional & Domestic Market

Gokul Flange End Polypropylene Diaphragm Valve 2" Trade Information

  • Ahmedabad
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • 10 Number Per Day
  • 1 Days
  • Yes
  • Contact us for information regarding our sample policy
  • Box Packing
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • All India
  • ISO & Material Test Certificate

Product Description

Technical Specification Material Of Construction PP (Polypropylene) Construction weir type design,Soft seated, raising stem Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 15MM to 150MM Test pressure 6 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Body Polypropylene 1 2) Bonnet Polypropylene 1 3) Hand wheel Polypropylene 1 4) Diaphragm Neoprene Rubber 1 5) Compressor PP 1 6) Stem / Spindel M.S. /Brass 1 7) Nut M.S./ S.S. 1 8) Pin M.S./ S.S. 1 9) Bolt, Nut, Washer M.S./ S.S. REQ 10) Cap Polypropylene 1

FAQs of Gokul Flange End Polypropylene Diaphragm Valve 2":


Q: What is the port size of the Gokul Flange End Polypropylene Diaphragm Valve?

A: The port size of the valve is 2"-50mm.

Q: What is the connection type of this diaphragm valve?

A: The connection type of the valve is flanged.

Q: What is the maximum temperature of media the valve can handle?

A: The valve can handle media with a temperature of up to 80C.

Q: What material is the Gokul Flange End Polypropylene Diaphragm Valve made of?

A: The valve is made of plastic, specifically Polypropylene (PP).

Q: In which applications can this diaphragm valve be used?

A: The valve can be used in industrial and water applications.

Q: What is the pressure rating of this valve?

A: The valve is designed for medium pressure applications.

Q: What is the flange class of the Gokul Flange End Polypropylene Diaphragm Valve?

A: The flange class of the valve is 150 class.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

Other Products in 'Ball Products' category

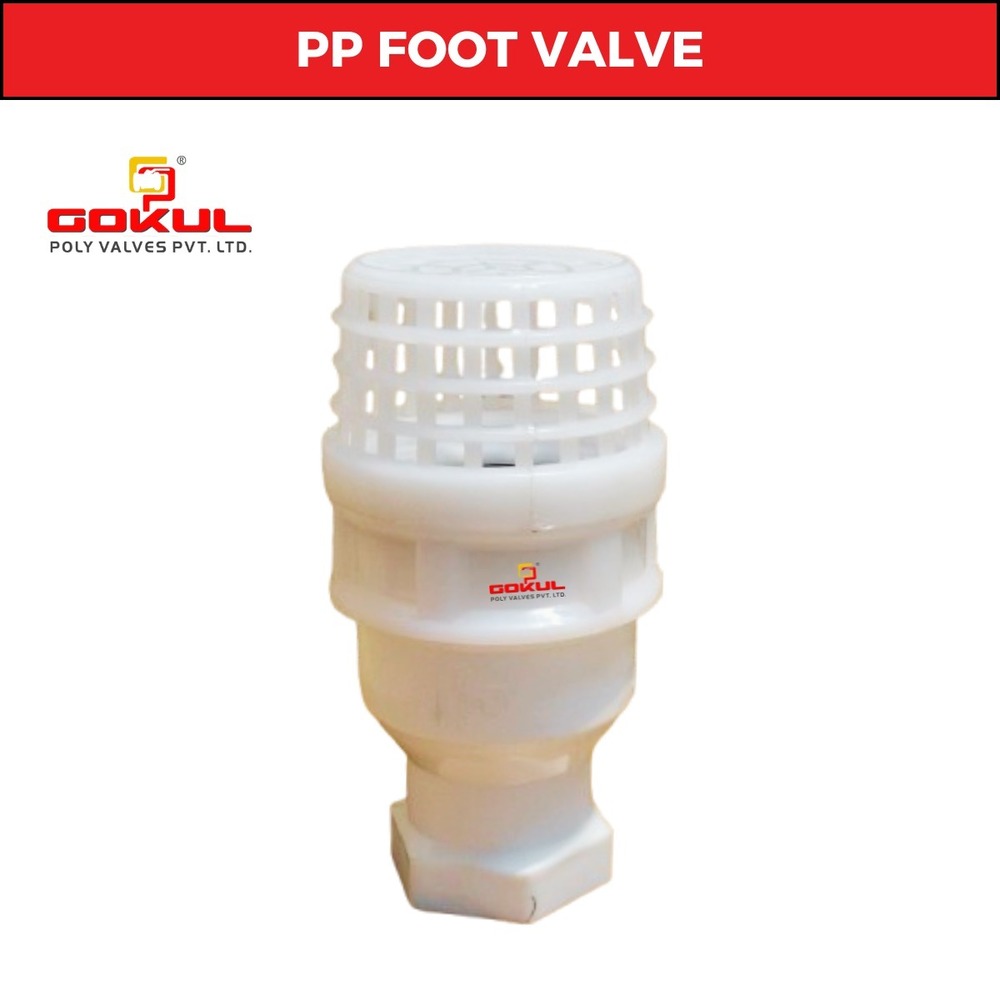

PP Foot Valve Screw End
