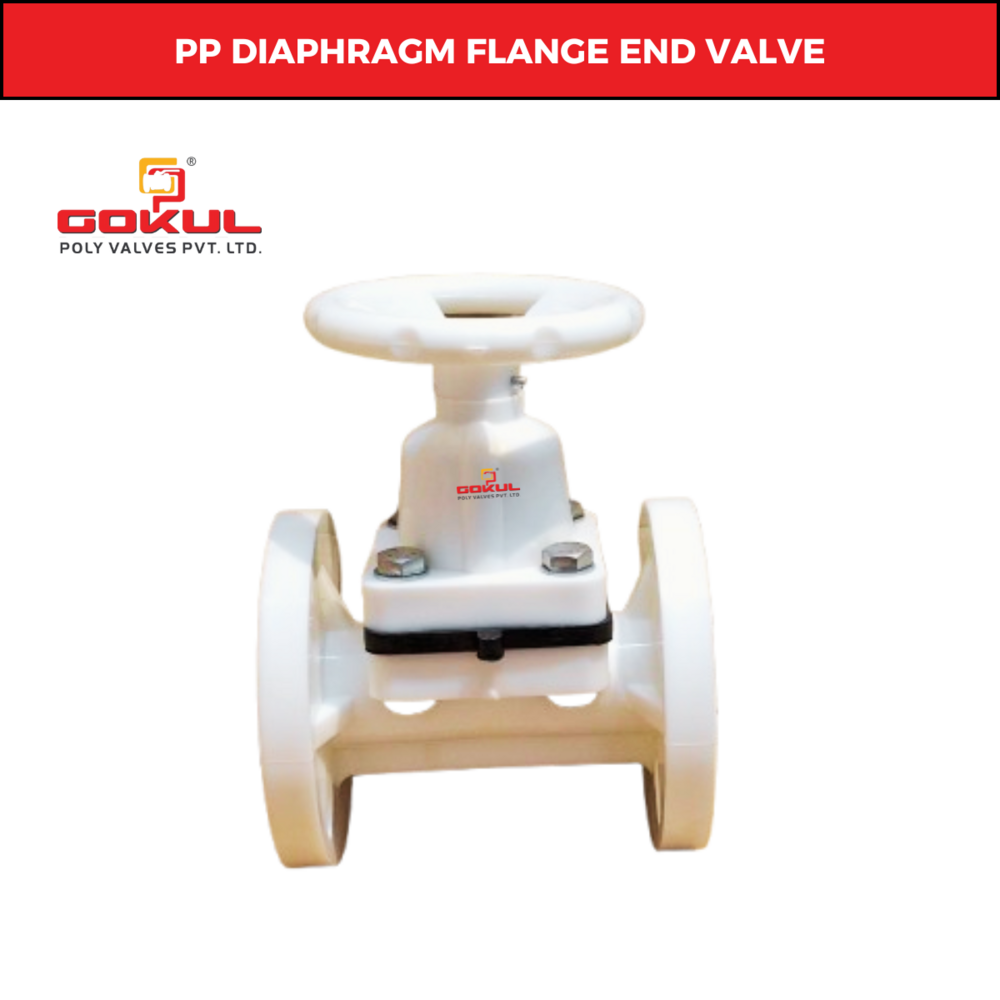

Polypropylene Diaphragm valve Flange End 1/2"

About Polypropylene Diaphragm valve Flange End 1/2"

Product Name - PP Diaphragm Valves

Gokul Poly Valves Pvt. Ltd. is a trusted manufacturer and exporter of high-performance PP Diaphragm Valves designed for chemical, water treatment, and industrial applications. Engineered for durability and excellent chemical resistance, our valves ensure leak-proof operation even in corrosive environments.

• PP Diaphragm Valve

  • Flange End & Screwed End

  • Sizes: 15 mm to 160 mm

  • Diaphragm Material: PP

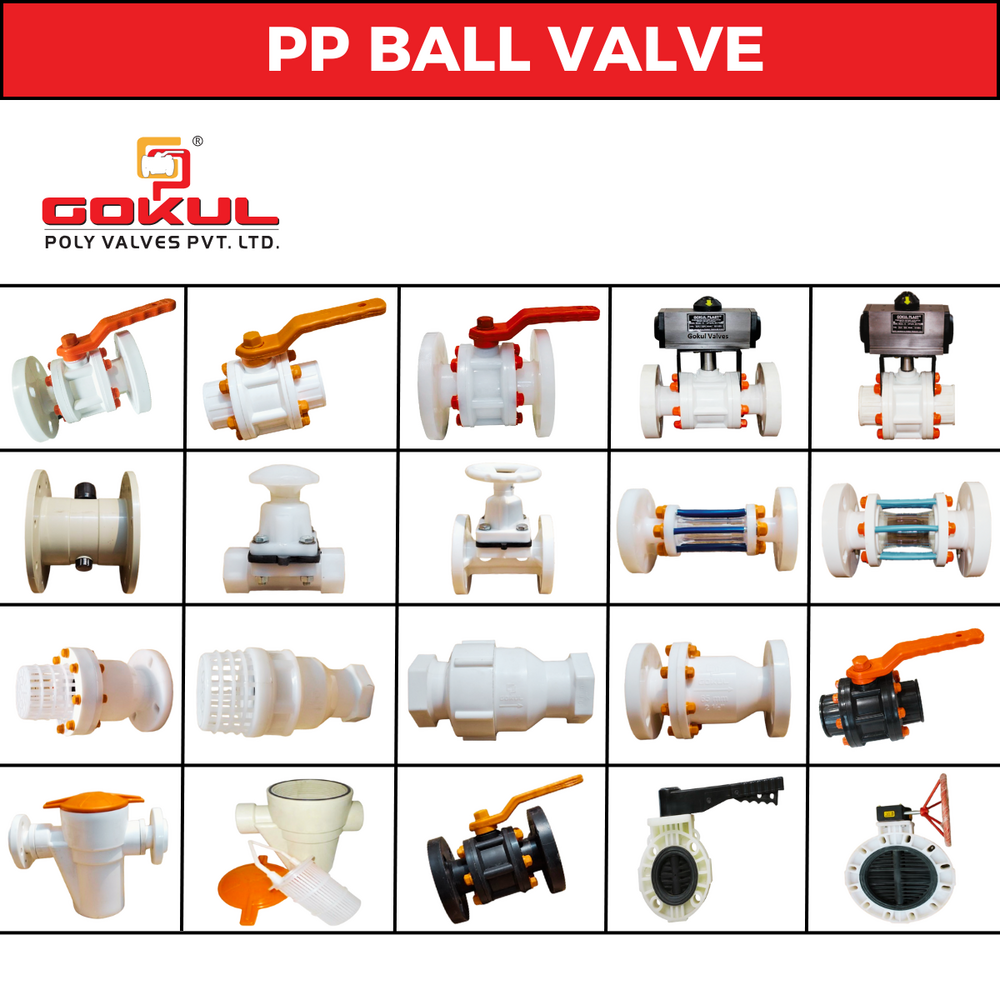

Related Products Offered: PP Valves:

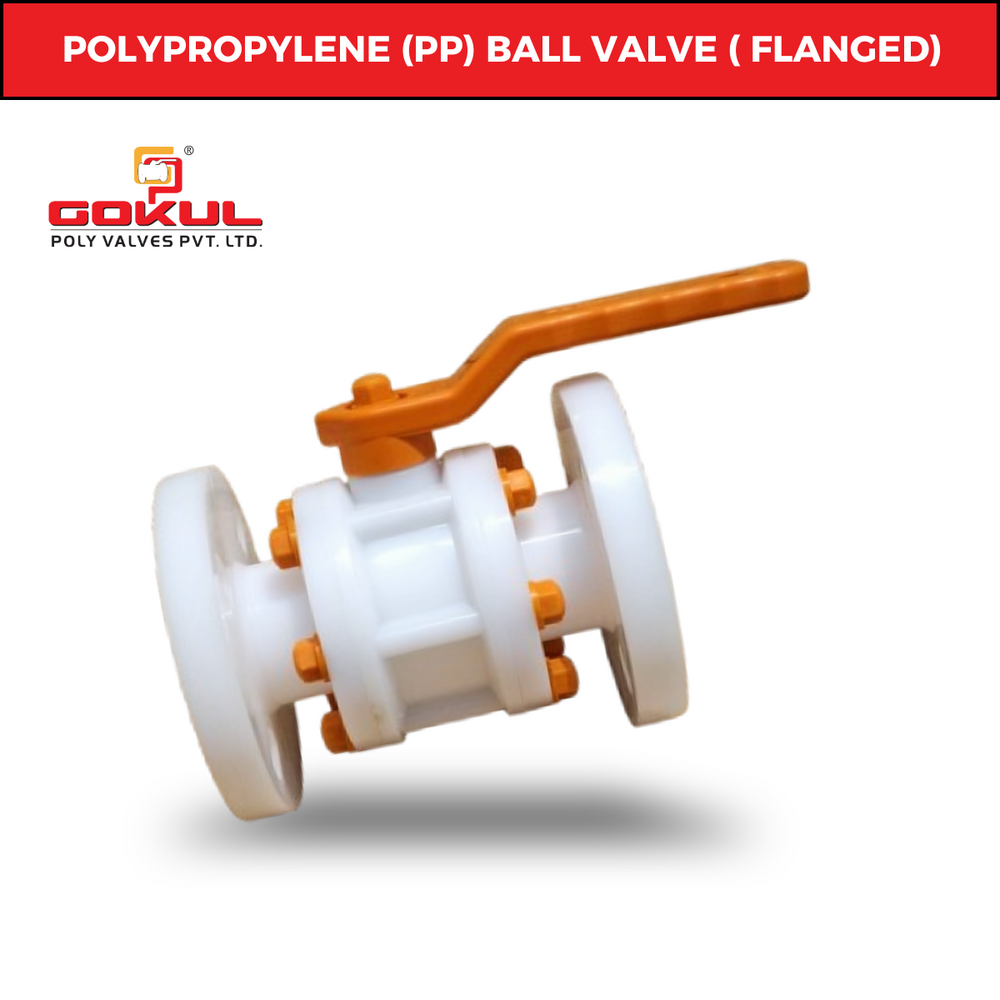

• PP Ball Valve (Flange / Threaded End)

• PP Diaphragm Valve

• PP Butterfly Valve

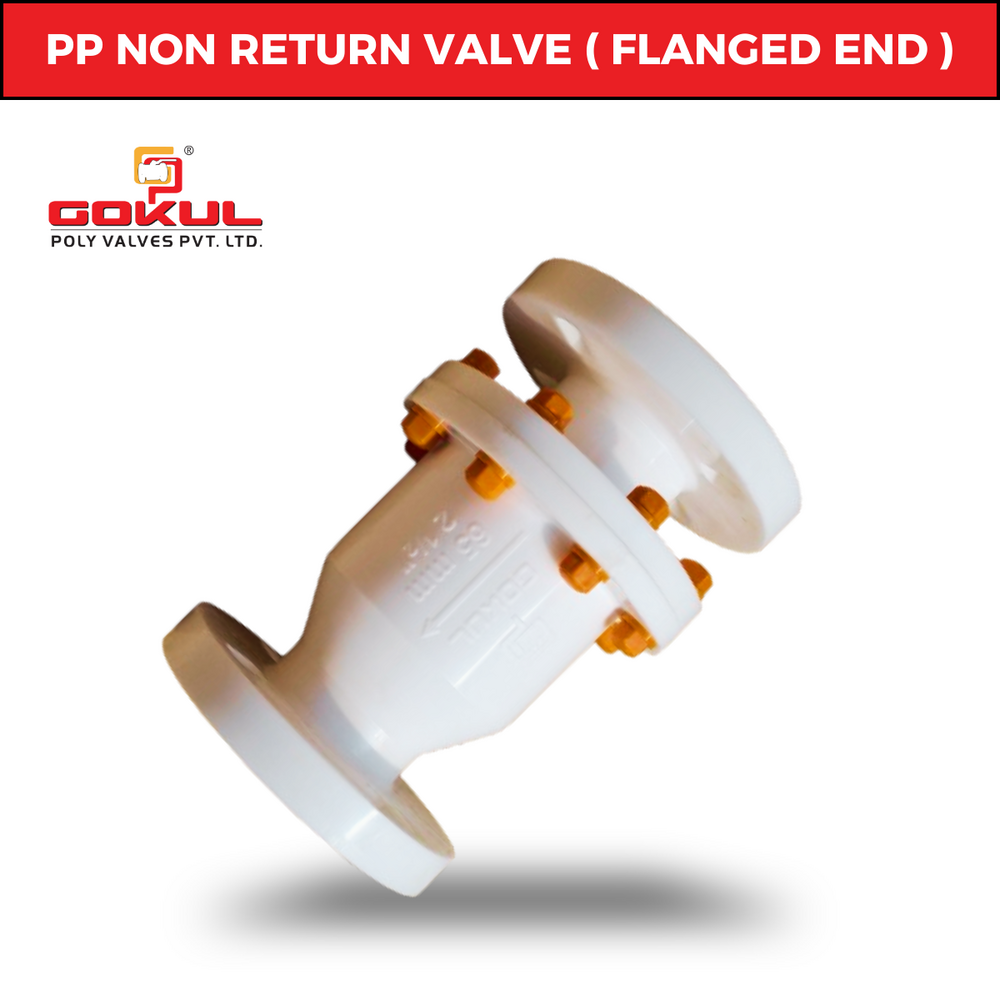

• PP Non Return Valve (NRV)

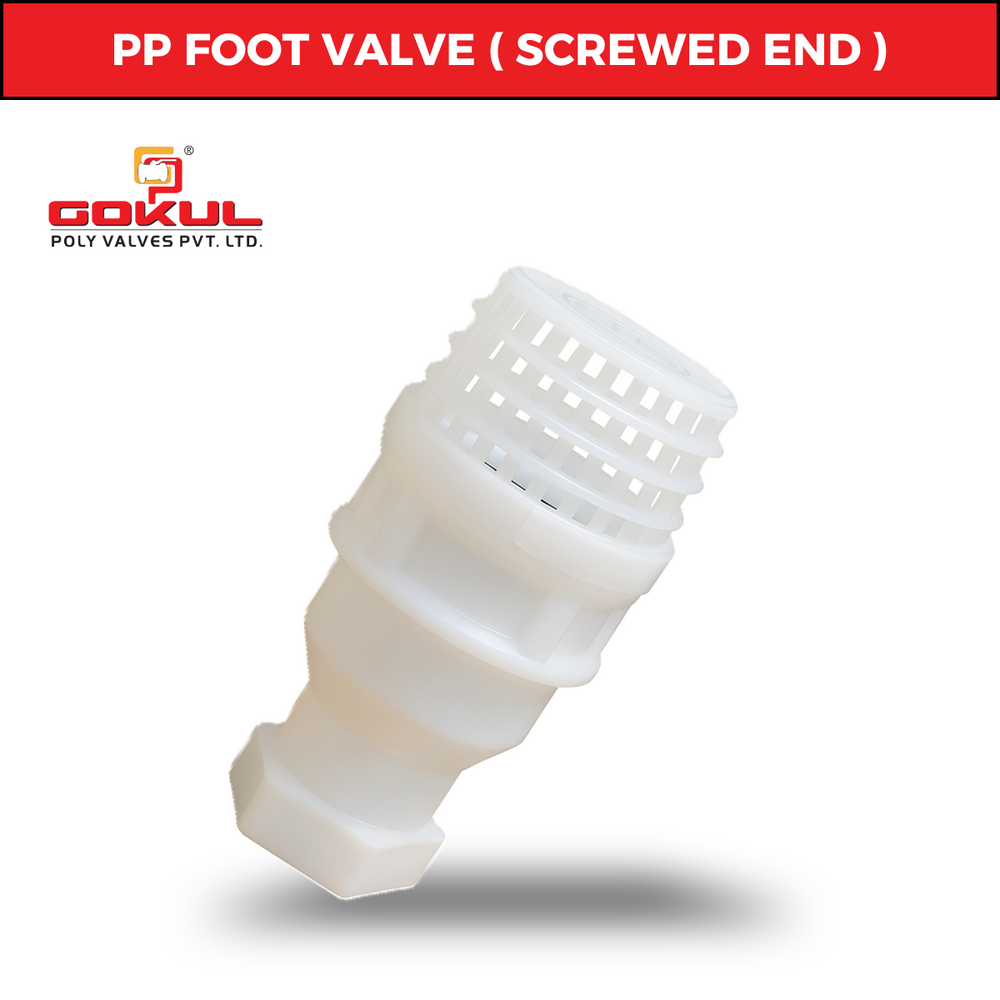

• PP Foot Valve

• PP Flush Valve

• PP Sight Glass

• PP Y Strainer

• PP Service Saddle

• PP Union & Pipe Fittings

PVDF / HDPE / UPVC / PP / PPH / PVC

• PVDF Ball Valves

• HDPE Ball & NRV Valves

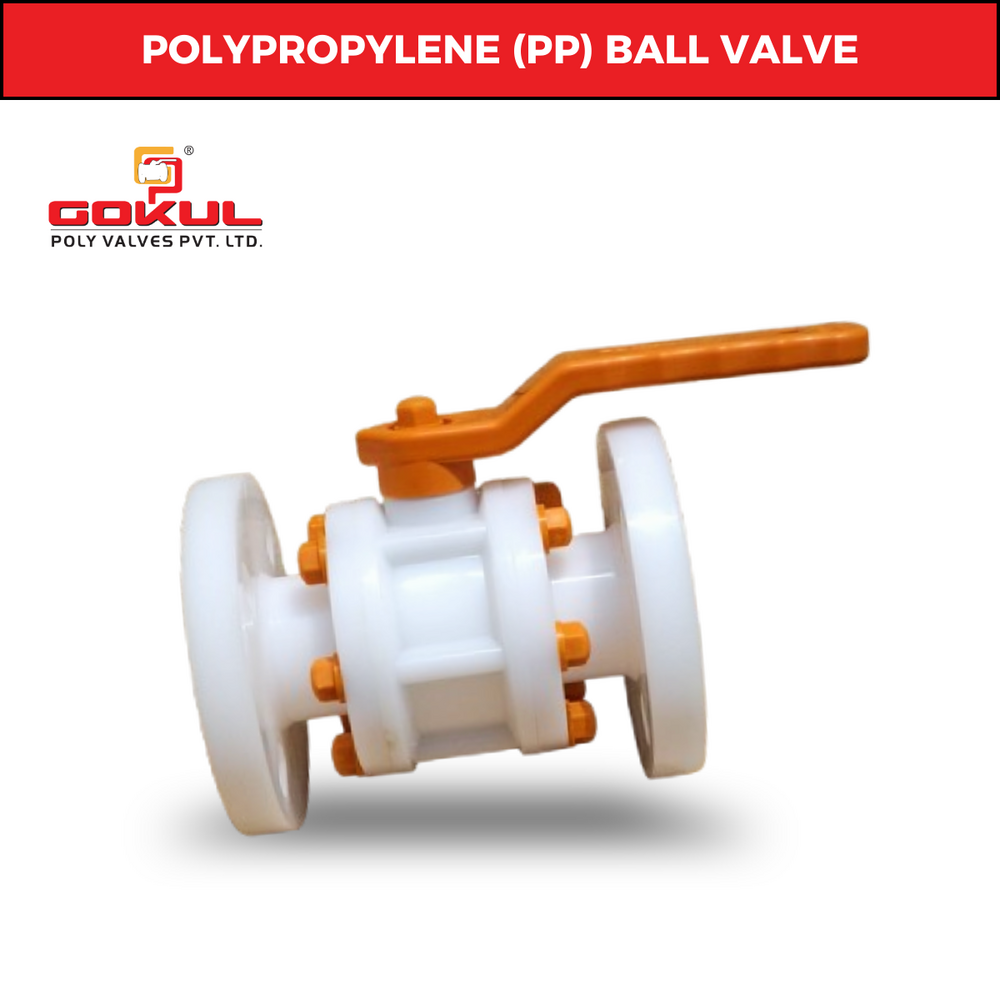

• PP Ball Valve

Features & Benefits:

• High chemical and corrosion resistance

• Smooth flow control and bubble-tight sealing

• Lightweight and easy to install

• Maintenance-free design

• Ideal for acids, alkalis, water, and other fluids

Applications:

• Chemical Processing Plants

• Effluent Treatment Plants (ETP/STP)

• Water Distribution

• Dyes & Intermediates

• Fertilizer Units

• Pharma & Bulk Drug Industries

• Pulp & Paper

• Galvanizing & Electroplating



Why Choose Gokul Poly Valves?

• 100% In-house Manufacturing

• ISO 9001:2015 Certified

• Competitive Pricing

• Pan-India & Global Supply

Technical Specification Material Of Construction PP (Polypropylene) Construction weir type design,Soft seated, raising stem Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 15MM to 150MM Test pressure 6 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Body Polypropylene 1 2) Bonnet Polypropylene 1 3) Hand wheel Polypropylene 1 4) Diaphragm Neoprene Rubber 1 5) Compressor PP 1 6) Stem / Spindel M.S. /Brass 1 7) Nut M.S./ S.S. 1 8) Pin M.S./ S.S. 1 9) Bolt, Nut, Washer M.S./ S.S. REQ 10) Cap Polypropylene 1

FAQs of Polypropylene Diaphragm valve Flange End 1/2":

Q: What is the pressure rating for the Polypropylene Diaphragm Valve Flange End 1/2"?

A: The valve is designed for medium-pressure applications.

Q: What is the maximum temperature the valve can handle?

A: The valve can handle media temperatures up to 80C.

Q: What is the connection type for this valve?

A: The connection type is flanged with a 150-class flange rating.

Q: What is the material used in the construction of the valve?

A: The valve is made from polypropylene (PP) plastic.

Q: What is the primary application for this valve?

A: The valve is suitable for industrial and water applications.
