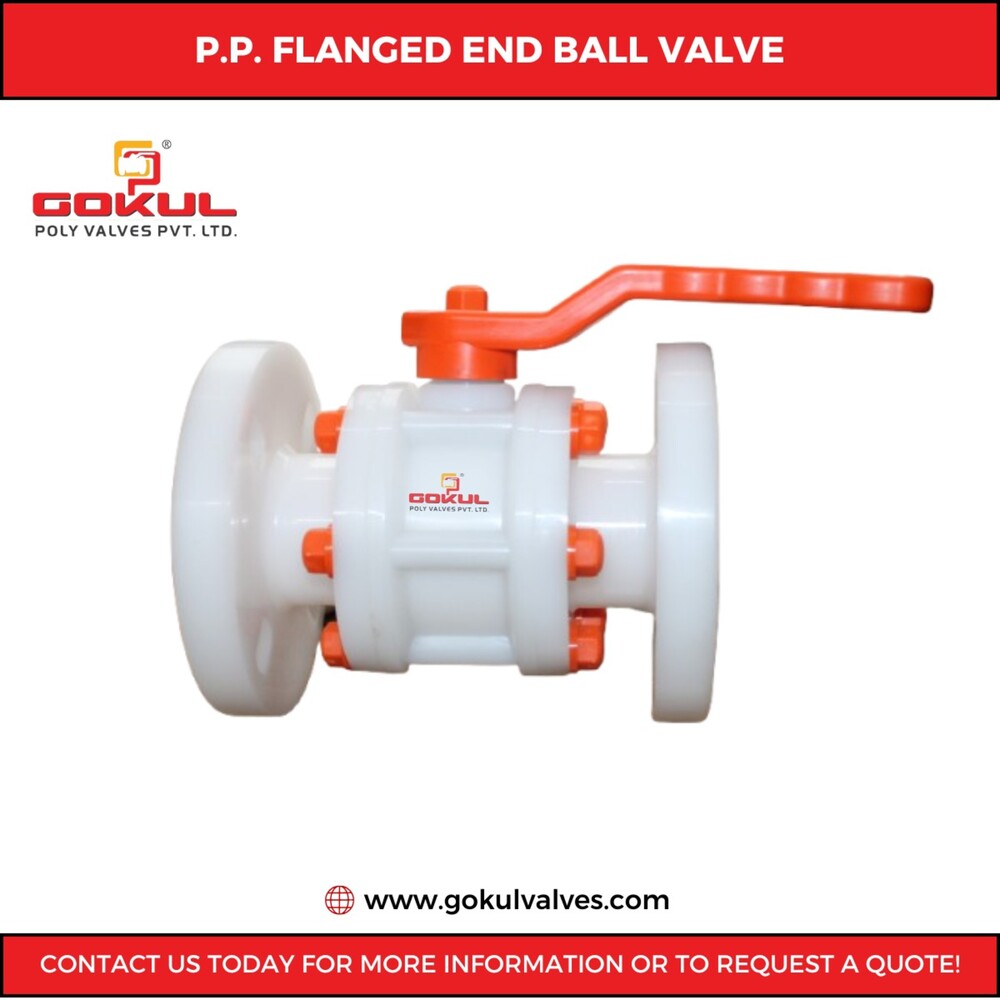

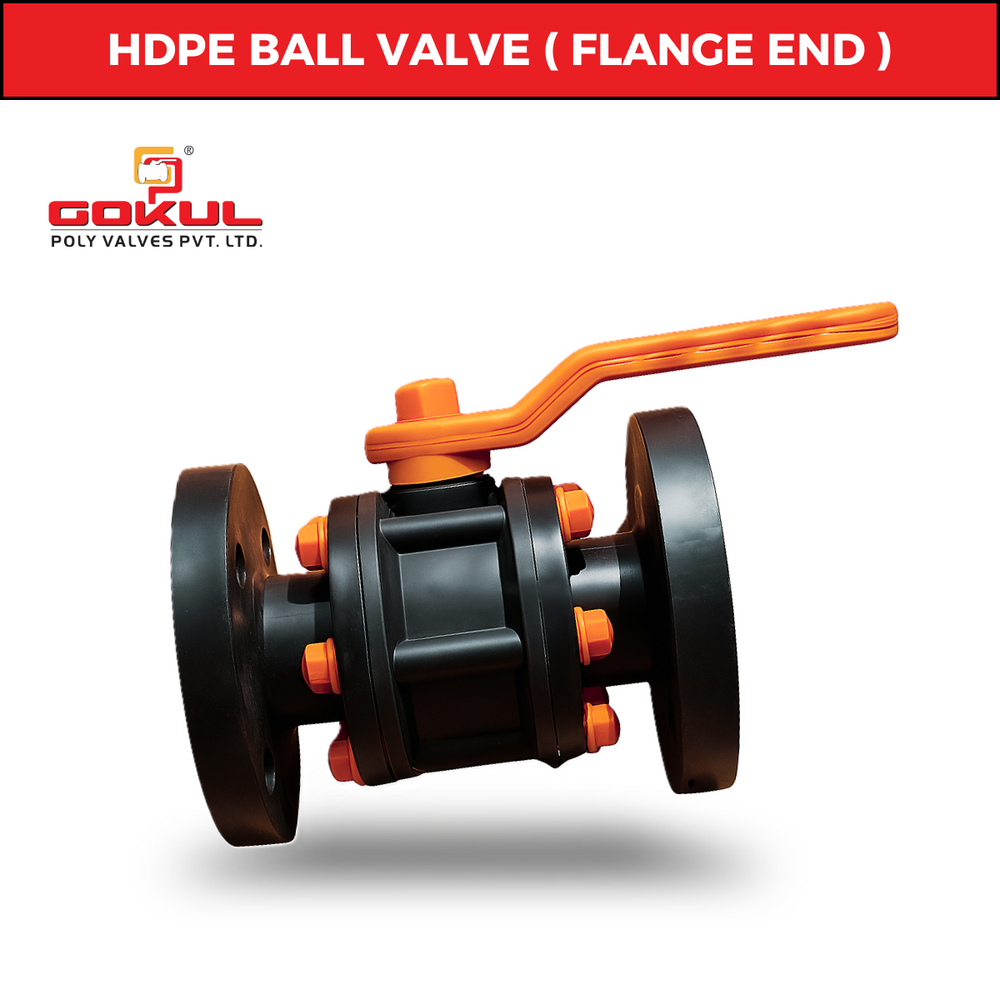

pp ball valve 4"

About pp ball valve 4"

Technical Specification

Material Of Construction	PP (Polypropylene) / HDPE(Highdensitypolyethylene) / PVDF(Polyvinylidene fluoride)	Construction	3 piece design, 1 piece stem (spindle), full bore, Teflon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	" 15MM TO 12-315MM
Connection End	Flanged as per ANSI B 16.5 (150#) &BS 10 (Table D/E/F) & DIN STD.	Standard	As per manufacturers

Material Specification

No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEFLON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEFLON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Precision Engineered for Demanding Applications

This PP ball valve features a durable plastic body and a robust design, tailored for industrial and water applications. Its PE 100 grade material offers high chemical resistance and longevity under pressure. Perfectly suited for both new installations and system upgrades, the 4-inch size and flanged connection ensure compatibility and secure integration with existing piping systems.


Optimal Flow and Reliable Control

Designed with a 15 mm diameter ball and flanged ends, the valve provides precise shutoff and effortless operation. The polished PP finish promotes smooth media passage, reducing friction and maintenance needs. Its threaded ends and 150 class flange facilitate easy installation in industrial and water management settings, maintaining optimal flow control for your system.
