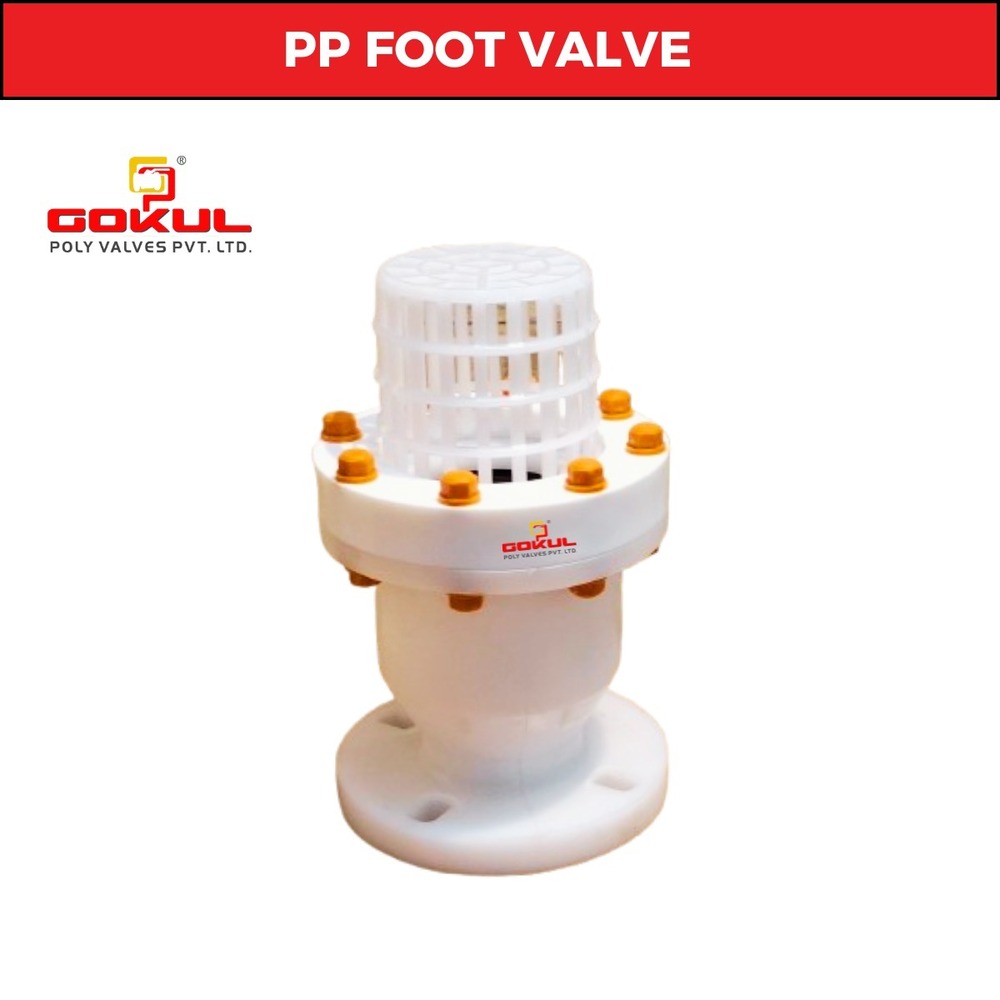

Gokul Flanged End PP Foot Valves

10000 INR/Number
Get a Price/Quote

Product Details:

  • Channels Intentional & Domestic Market
  • Pressure Medium Pressure
  • Color White
  • Structure Ball
  • Product Type PP Foot Valve Flange End
  • Size 1" To 12"
  • Usage Industrial & Water Application
  • Click to view more
Request To Call Back Send Inquiry
X

Gokul Flanged End PP Foot Valves Price And Quantity

  • 10000 INR/Number
  • 10 Number

Gokul Flanged End PP Foot Valves Product Specifications

  • Industrial & Water Application
  • Flanged
  • industrial and water application
  • 150 class
  • 1" To 12"
  • PP Foot Valve Flange End
  • Plastic
  • Ball
  • 80 Celsius (oC)
  • 1" To 12"
  • Polypropylene (PP)
  • Water
  • Medium Pressure
  • White
  • Intentional & Domestic Market

Gokul Flanged End PP Foot Valves Trade Information

  • Ahmedabad
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • 10 Number Per Day
  • 1 Days
  • Yes
  • Contact us for information regarding our sample policy
  • Box Packing
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • All India
  • ISO & Materia Test Certificate

Product Description

Technical Specification Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 25MM to 315MM Test pressure 10 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION QTY MATERIAL 1) Top Body 1 Polypropylene 2) Bottam Body 1 Polypropylene 3) Screen 1 Polypropylene 4) Ball 1 Polypropylene 5) Ball Ring 1 Polypropylene 6) Seat Ring 1 Neoprene Rubber 7) Stud, Nut & Washer Req. SS

FAQs of Gokul Flanged End PP Foot Valves:


Q: What is the port size range for the Gokul Flanged End PP Foot Valves?

A: The port size for the Gokul Flanged End PP Foot Valves ranges from 1" to 12".

Q: What is the maximum temperature of media that the Gokul Flanged End PP Foot Valves can handle?

A: The Gokul Flanged End PP Foot Valves can handle media temperatures up to 80C.

Q: Which applications are suitable for the Gokul Flanged End PP Foot Valves?

A: These valves are suitable for industrial and water applications.

Q: What is the flange class of the Gokul Flanged End PP Foot Valves?

A: The flange class for the Gokul Flanged End PP Foot Valves is 150.

Q: What material is used to manufacture the Gokul Flanged End PP Foot Valves?

A: The Gokul Flanged End PP Foot Valves are made of Polypropylene (PP).

Q: What is the pressure rating for the Gokul Flanged End PP Foot Valves?

A: The Gokul Flanged End PP Foot Valves are rated for medium pressure applications.

Q: What is the connection type for the Gokul Flanged End PP Foot Valves?

A: The connection type for these valves is flanged.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

Other Products in 'Ball Products' category

Gokul PP Foot Valve
Send Inquiry
Gokul Flange End Polypropylene Diaphragm Valve 1/2
Send Inquiry

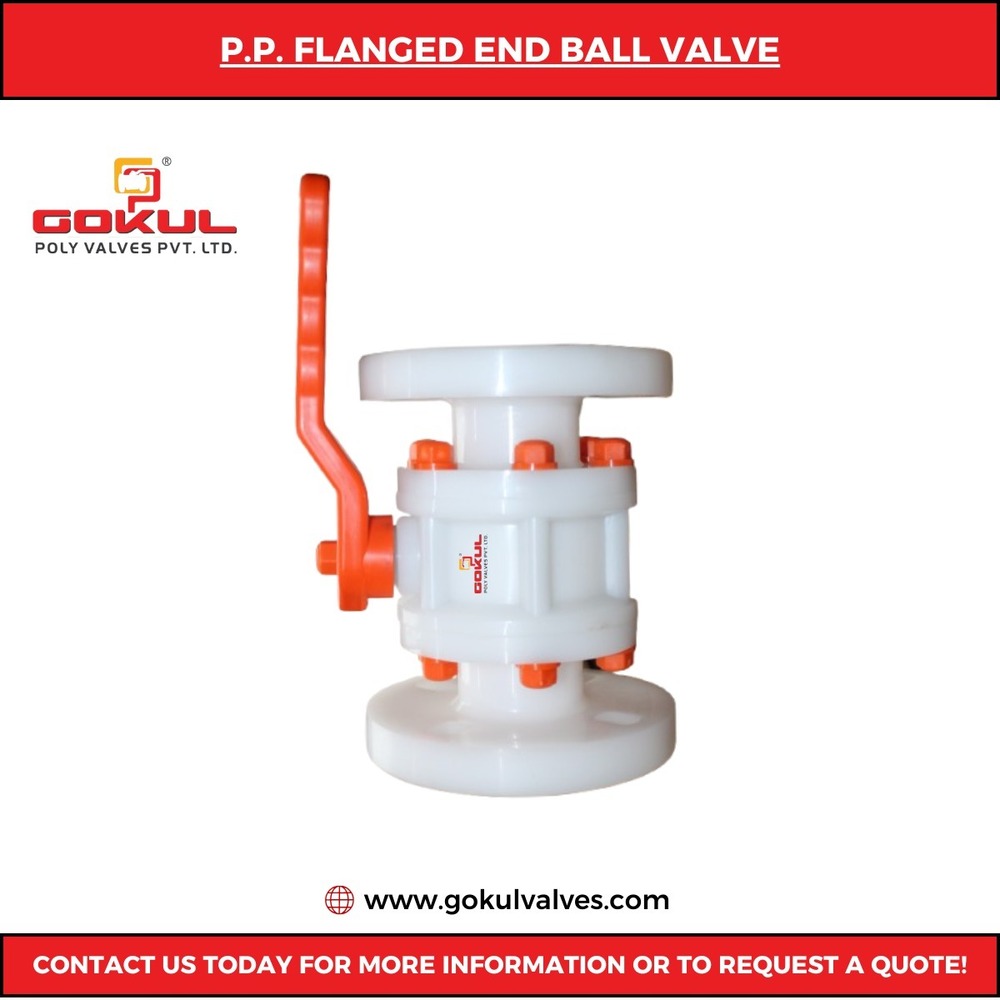

Gokul PP Ball valve Flange End 8
