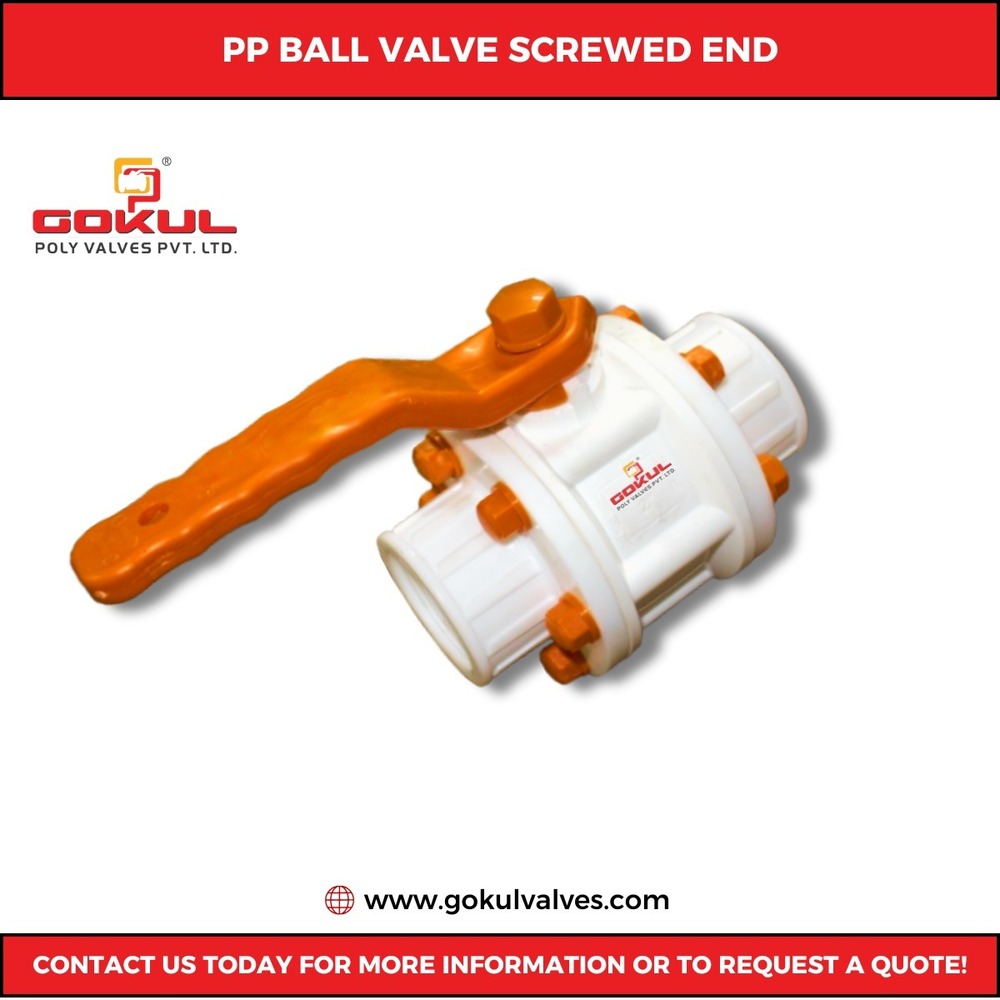

Gokul Screw End PP Ball Valve

About Gokul Screw End PP Ball Valve

Technical Specification

Material Of Construction	PP (Polypropylene)	Construction	3 piece design, 1 piece stem (spindle), full bore, Tef lon seated
Design	3 piece design	Test pressure	08 kg./cm2
Max working temp	70 c (consistently)	Size Range	"- 15MM TO 100MM- 4ï
Connection End	Screw end (BSP thread)	Standard	As per manufacturer

Material Specification

NO.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	Polypropylene
2)	Body	1	Polypropylene
3)	Ball	1	Polypropylene
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEF LON)
6)	Body"O"Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEF LON)
8)	Stem "O" Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Durable Polypropylene Construction

Crafted from high-grade polypropylene, the Gokul Screw End PP Ball Valve resists corrosion and provides long-term durability. This material choice makes the valve ideal for handling potable water and various industrial fluids safely under medium pressure conditions, ensuring reliable operation in demanding environments.


Versatile Size Range and Applications

Available in sizes from 1/2" to 4", these ball valves cater to a wide spectrum of industrial and domestic water management needs. With a BSP threaded screw end connection, installation is straightforward, making them suitable for new setups or replacement projects in both large-scale and small-scale applications.
