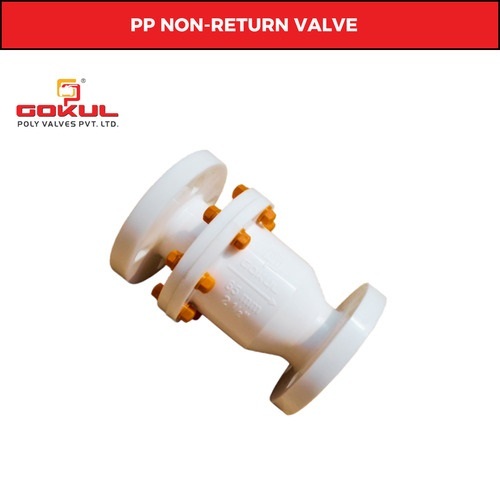

Polypropylene Flange Nrv

Price 10000 INR/ Number

Get a Price/Quote

Polypropylene Flange Nrv Specification

  • Channels
  • Intentional & Domestic Market
  • Caliber
  • Gokul Poly Valves Pvt Ltd
  • Connection
  • Flanged
  • Pressure
  • Medium Pressure
  • Structure
  • Ball
  • Material
  • Plastic
  • Usage
  • Industrial & Water Application
  • Media
  • Water
  • Size
  • 1" To 12"
  • Temperature of Media
  • 80 Celsius (oC)
  • Product Type
  • PP Non Return Valve Flanged
  • Port Size
  • 1" To 12"
  • Color
  • White
  • Flange
  • 150 class
  • Finish
  • Polypropylene (PP)
  • Application
  • industrial and water application


Polypropylene Flange Nrv Trade Information

  • Minimum Order Quantity
  • 10 Number
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 10 Per Day
  • Delivery Time
  • 1 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Box Packing
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO & Material test Certificate


About Polypropylene Flange Nrv

Technical Specification Material Of Construction PP (Polypropylene) Construction Ball type design, soft seated, 2 Piece Design Design 2 Piece Design Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. Size Range 25MM to 315MM Test pressure 10 kg./cm2 Max working temp 70 c (consistently) Standard As per manufacturer Material Specification No. DESCRIPTION MATERIAL QTY. 1) Top Body Polypropylene 1 2) Bottom body Polypropylene 1 3) Ball Polypropylene 1 4) Ball Ring Polypropylene 1 5) Seat Ring Neoprene Rubber 1 6) Stud, Nut & Washer SS Req.

FAQs of Polypropylene Flange Nrv:


Q: What is the connection type and port size available for the Polypropylene Flange NRV?

A: The Polypropylene Flange NRV has a flanged connection type and is available in port sizes ranging from 1" to 12".

Q: What material is the Polypropylene Flange NRV made from?

A: The Polypropylene Flange NRV is made from high-quality plastic with a polypropylene (PP) finish.

Q: What is the temperature rating for the media used with the Polypropylene Flange NRV?

A: The media temperature rating for the Polypropylene Flange NRV is up to 80C.

Q: What applications is the Polypropylene Flange NRV suitable for?

A: The Polypropylene Flange NRV is suitable for industrial and water applications.

Q: What pressure rating does the Polypropylene Flange NRV support?

A: The Polypropylene Flange NRV supports medium pressure applications.

Q: What flange specification is provided for the Polypropylene Flange NRV?

A: The Polypropylene Flange NRV is equipped with a 150-class flange specification.

Q: What is the structure type of the Polypropylene Flange NRV?

A: The Polypropylene Flange NRV is designed using a ball structure.

Polypropylene Flange Nrv
Polypropylene Flange Nrv
Polypropylene Flange Nrv
Polypropylene Flange Nrv
Polypropylene Flange Nrv
Polypropylene Flange Nrv
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Ball Products Category

PP Foot Valve Flange End

PP Foot Valve Flange End

Price 1320 INR / Number

Minimum Order Quantity : 10

Product Type : PP Foot Valve Flange End

Temperature of Media : 80 Celsius (oC)

Pressure : Medium Pressure

Application : industrial and water application

Get a Price/Quote
PP Sight Glass

PP Sight Glass

Price 525 INR / Number

Minimum Order Quantity : 10

Product Type : PP Sight Glass Valve / PP Flow Indicator Valve

Temperature of Media : 80 Celsius (oC)

Pressure : Medium Pressure

Application : industrial and water application

Get a Price/Quote

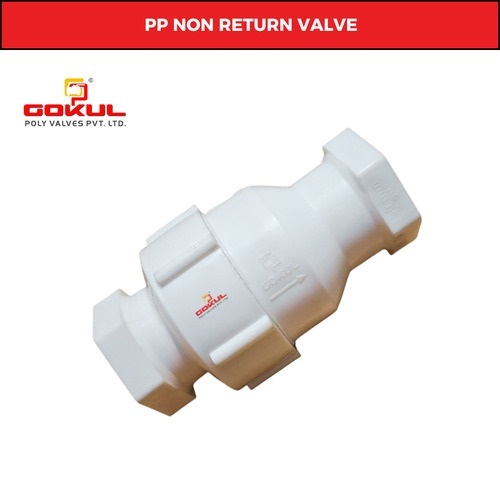

Polypropylene Non Return Valve Screwed
